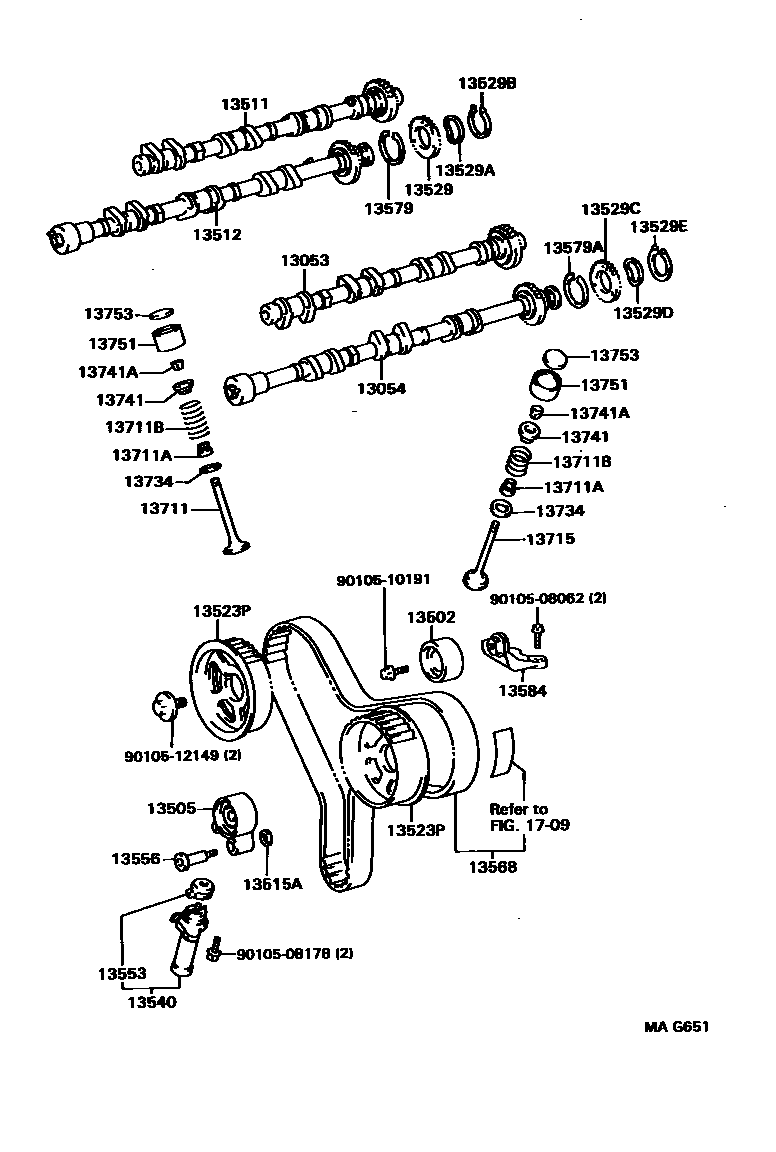

CAMSHAFT & VALVE
13053CAMSHAFT SUB-ASSY, NO.3
13054CAMSHAFT SUB-ASSY, NO.4
13502IDLER SUB-ASSY, TIMING BELT, NO.2
13511CAMSHAFT
(L)
(J)
13515AWASHER, PLATE(FOR DISTRIBUTOR DRIVE GEAR)
13523PPULLEY, CAMSHAFT TIMING
(L)
(J)
(J)
13529GEAR, CAMSHAFT SUB
13529AWASHER, WAVE(FOR CAMSHAFT SUB GEAR)
13529BRING, SHAFT SNAP(FOR CAMSHAFT SUB GEAR)
13529CGEAR, CAMSHAFT SUB, NO.3
13529DWASHER, WAVE(FOR CAMSHAFT SUB GEAR, NO.3)
13529ERING, SHAFT SNAP(FOR CAMSHAFT SUB GEAR, NO.3)
13540TENSIONER ASSY, CHAIN, NO.1
13553COVER, CHAIN TENSIONER DUST
NTN
AISIN
13556SHAFT, TIMING BELT IDLER
13568BELT, TIMING
sub13568-29025
13579AWASHER, CAMSHAFT TIMING GEAR BOLT, NO.3
sub13579-50020
13711VALVE, INTAKE
(L)
(J)
(J)
13711ASEAL OR RING, O(FOR VALVE STEM OIL)
INTAKE SIDE,(L)
EXHAUST SIDE
INTAKE SIDE
INTAKE SIDE,(J)
13711BSPRING, COMPRESSION(FOR INNER)
(L)
(J)
(J)
13715VALVE, EXHAUST
(L)
(L)
(J)
(J)
13734SEAT, VALVE SPRING
13741ALOCK, VALVE SPRING RETAINER
13751LIFTER, VALVE
13753SHIM, VALVE ADJUSTING
T=2.50
T=2.55
T=2.60
T=2.65
T=2.70
T=2.75
T=2.80
T=2.85
T=2.90
T=2.95
T=3.00
T=3.05
T=3.10
T=3.15
T=3.20
T=3.25
T=3.30
1709
9010508062
main90105-08062
9010508178
main90105-08178
9010510191
main90105-10191
9010512149
main90105-12149
