VENTILATION HOSE

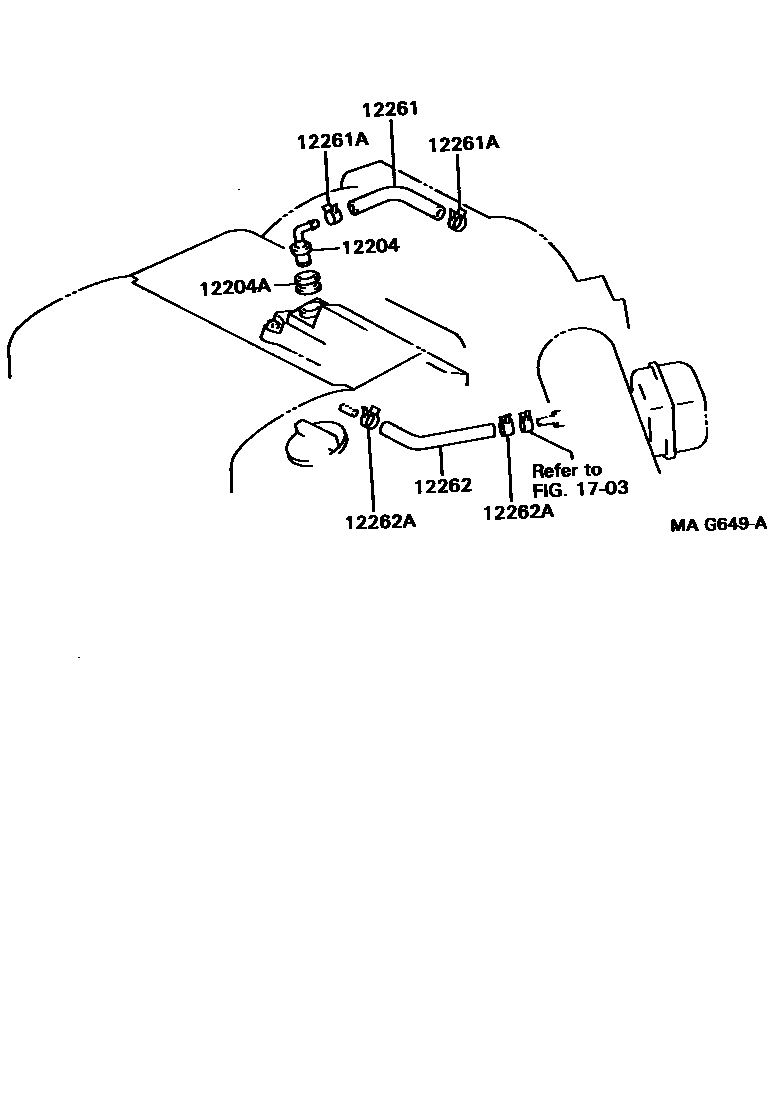

Parts diagram
12204VALVE SUB-ASSY, VENTILATION
main12204-20010i199309-199607
main12204-74020i199209-199607
12204AGROMMET(FOR VENTILATION SYSTEM)
main90480-18001i199209-199607
12261HOSE, VENTILATION
main12261-03030i199209-199607
(L)
main12261-0A010i199408-199503
(L)
main12261-20010i199309-199607
(J)
sub12261-20011
main12261-74020i199209-199607
(J)
12261ACLIP OR CLAMP(FOR VENTILATION HOSE)
main90467-14017i199309-199607
main90467-15016i199209-199607
sub96135-51400
12262HOSE, VENTILATION, NO.2
main12262-03020i199209-199607
(L)
main12262-0A010i199309-199607
sub12262-20010
main12262-74050i199209-199607
(J)
12262ACLIP(FOR VENTILATION HOSE NO.2)
main90467-13103i199209-199607
NO.1
main90467-15016i199209-199607
NO.2
sub96135-51400
main90467-17011i199309-199607
sub96134-51700
1703

7 parts on this diagram · 2 diagrams in section
