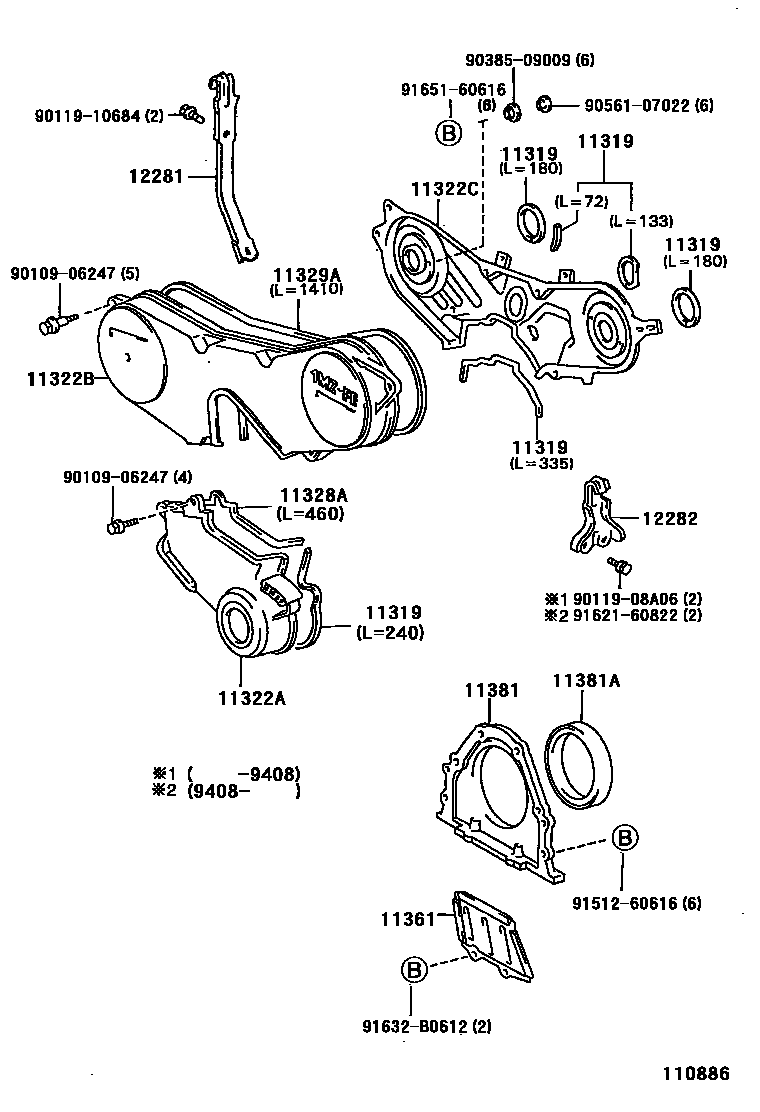

TIMING GEAR COVER & REAR END PLATE
11319GASKET, TIMING BELT COVER, NO.3
11322ACOVER, TIMING BELT, NO.1
11322BCOVER, TIMING BELT, NO.2
sub11322-20901
11322CCOVER, TIMING BELT, NO.3
11328GASKET, TIMING GEAR OR CHAIN COVER
(L)
(J)
11328AGASKET, TIMING BELT COVER, NO.1
11329GASKET, TIMING GEAR REAR COVER
(L)
(J)
11329AGASKET, TIMING BELT OR CHAIN COVER, NO.2
11361COVER, FLYWHEEL HOUSING UNDER
(L)
11381RETAINER, ENGINE REAR OIL SEAL
(L)
(J)
11381ASEAL, ENGINE REAR OIL
(L)
NOK
12281HANGER, ENGINE, NO.1
(J)
12282HANGER, ENGINE, NO.2
9010906247
main90109-06247
9011908A06
main90119-08A06
9011910684
main90119-10684
9038509009
main90385-09009
9056107022
main90561-07022
9151260616
main91512-60616
9162160822
main91621-60822
91632B0612
main91632-B0612
9165160616
main91651-60616
22 parts on this diagram · 3 diagrams in section
