STANDARD TOOL

09110JACK ASSY

main09111-06010iMCV10,SXV10..NAP..SED199309-199607

main09111-20101iSXV10..NAP..WG199209-199607

09113HANDLE, JACK

main09113-06010iMCV10,SXV10..NAP199209-199607

sub09113-06020

09120BAG, TOOL

main09120-01020iMCV10,SXV10..NAP..SED199309-199607

main09120-10030iSXV10..NAP..WG199209-199410

main09120-16030iSXV10..NAP..WG199410-199607

09130PLIERS

main99913-11500iSXV10..NAP..WG199209-199607

09135DRIVER, SCREW

main99915-10700iSXV10..NAP..WG199209-199607

09141SPANNER

main99914-10810iSXV10..NAP..WG199209-199607

8 X 10

main99914-11214iSXV10..NAP..WG199209-199607

12 X 14

09150WRENCH, HUB NUT BOX

main09150-02020iMCV10,SXV10..NAP..SED199309-199607

main09150-26010iSXV10..NAP..WG199209-199607

09155WRENCH, SPARK PLUG

main09155-74020iSXV10..NAP..WG199209-199607

09183WRENCH, WHEEL CAP

main09183-00010iSXV10..NAP..WG199209-199607

09184STOPPER, WHEEL

main09184-00010iSXV10..NAP..WG199209-199607

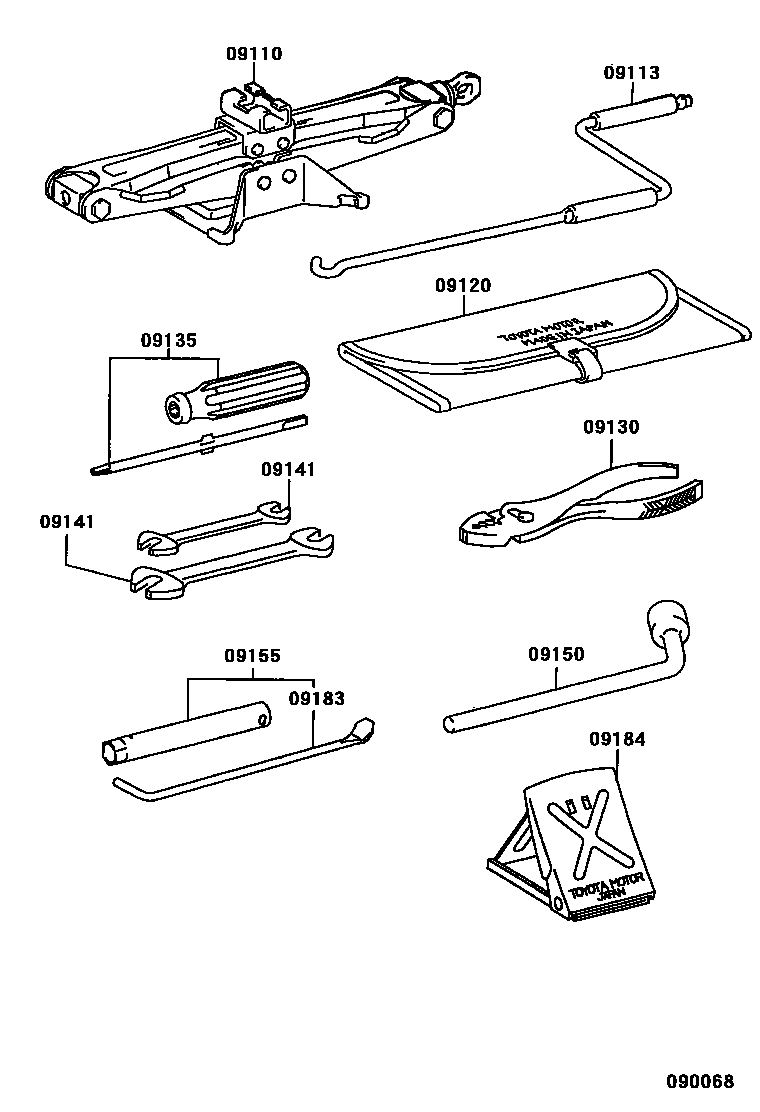

10 parts on this diagram · 1 diagram in section
