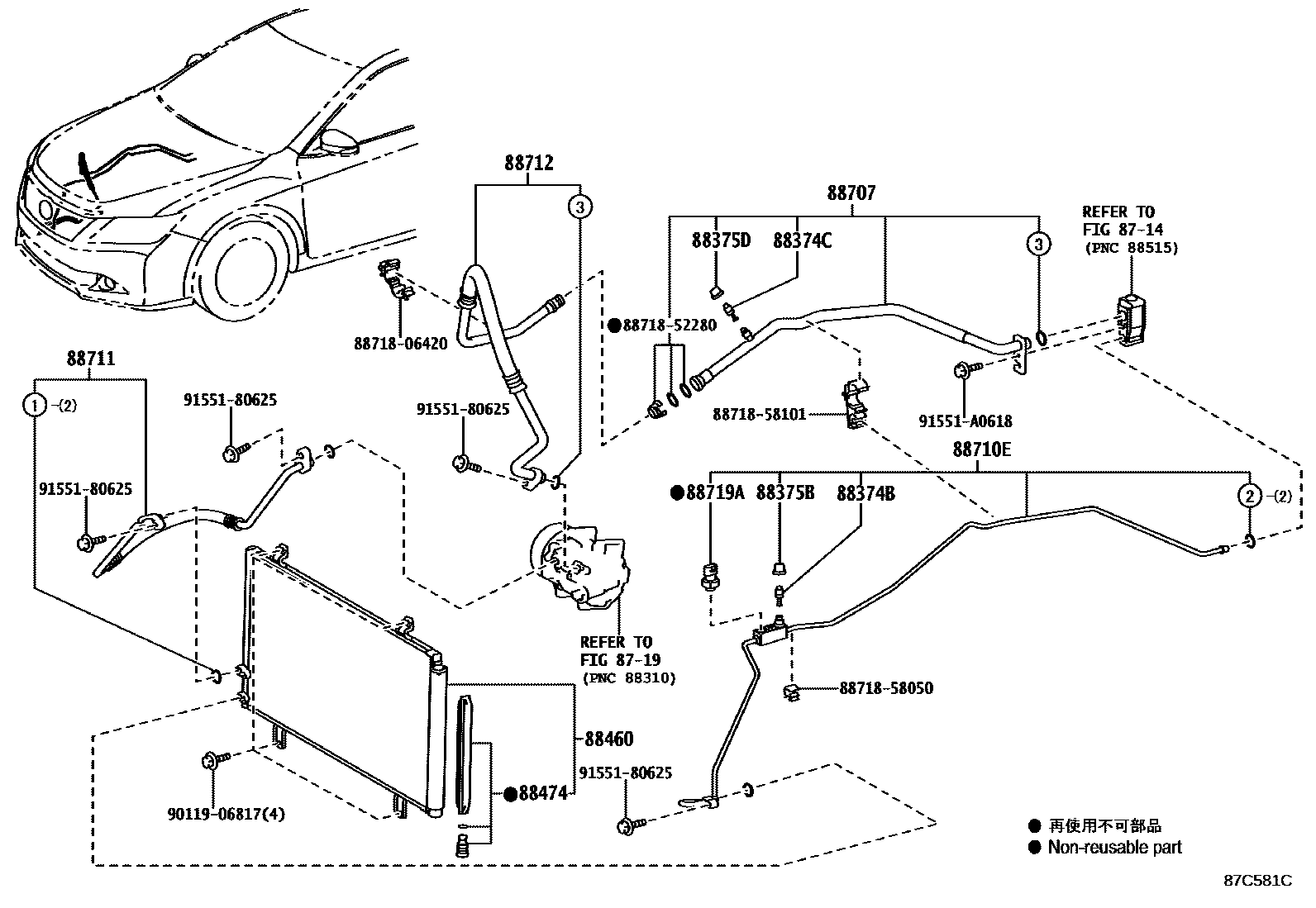

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0004 1 0006 1 0008 1 0010 1 0011 1 0012 1 0013 1 0015 1O-RING

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88374BVALVE, SERVICE, NO.1

main88374-30010iACV51,ASV50;AVV50..IND,TAIW,TH201112-201504

88374CVALVE, SERVICE, NO.2

main88374-30010iACV51,ASV50;AVV50..TAIW201112-201504

88375BCAP, SERVICE VALVE, NO.1

main88375-30280iACV51,ASV50;AVV50..IND,TAIW,TH201112-201504

88375DCAP, SERVICE VALVE, NO.2

main88375-30290iACV51,ASV50201112-201504

88460CONDENSER ASSY, COOLER

main88460-06260iASV51..TAIW201503-202007

main88460-06270iASV5#..IDN,IND,PHL,TH,VN201502-201903

main88460-06290iASV5#..MA201503-201809

main88460-33130iAVV50201502-201809

88474DRYER, COOLER

main88474-17010iACV51,ASV50201112-201504

main88474-47020iAVV50..IND,TAIW,TH201202-201504

88707PIPE SUB-ASSY, SUCTION

main88707-06160iASV51..TAIW201503-202007

main88707-06170iAVV50..TAIW201202-201503

main88707-06180iACV51,ASV50..IDN,IND,PHL,TH,VN201203-201504

main88707-06190iAVV50..IND,TH201203-201504

main88707-06200iASV5#..MA201503-201809

88710ETUBE & ACCESSORY ASSY, AIR CONDITIONER

main88710-06400iASV51..TAIW201503-202007

main88710-06410iAVV50..TAIW201202-201503

main88710-06420iACV51,ASV50..IDN,IND,PHL,TH,VN201203-201504

main88710-06430iAVV50..IND,TH201203-201504

main88710-06460iACV51,ASV50..MA201205-201503

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-06510iASV51..TAIW201503-202007

main88711-06520iACV51..TAIW201112-201503

main88711-06530iAVV50..TAIW201202-201503

main88711-06540iASV5#..IDN,IND,PHL,TH,VN201502-201903

main88711-06550iACV51..TH,VN201203-201504

main88711-06560iAVV50..IND,TH201203-201504

main88711-06580iASV50..MA201205-201503

main88711-06590iACV51..MA201205-201503

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-06310iASV50..TAIW201112-201503

main88712-06320iACV51..TAIW201112-201503

main88712-06330iAVV50..TAIW201503-201809

main88712-06340iASV50..IDN,IND,PHL,TH,VN201203-201504

main88712-06350iACV51..TH,VN201203-201504

main88712-06360iAVV50..IND,TH201203-201504

main88712-06370iASV5#..MA201503-201809

main88712-06380iACV51..MA201205-201503

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-33020iASV51,AVV50..MA,TAIW,TH,VN;ASV50..IDN,IND,MA,PHL,TH,VN201502-202007

8871806420PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-06420

8871852280PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-52280

8871858050PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-58050

8871858101PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-58101

9011906817

main90119-06817

9155180625

main91551-80625

91551A0618

main91551-A0618

20 parts on this diagram · 11 diagrams in section
