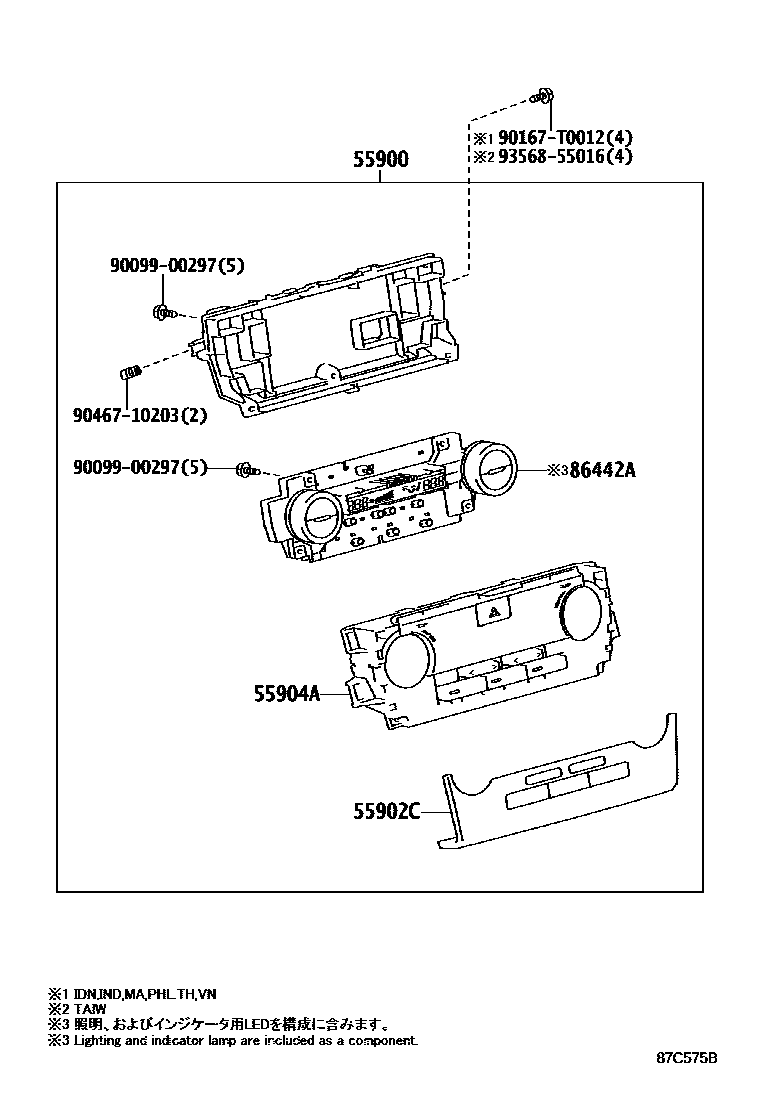

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1CONTROL PANEL---FRONT 0005 1CONTROL PANEL---FRONT 0008 1CONTROL PANEL---REAR 0010 1AIR DUCT 0011 1AIR DUCT 0012 1SENSOR 0013 1SENSOR

55900CONTROL ASSY, AIR CONDITIONER

main55900-33C30iAVV50..V..TAIW201503-201809

main55900-33E00iACV51,AVV50..LHD;ASV50..LHD..(E,N)201112-201504

main55900-33E10iASV50..G..PHL201203-201502

main55900-33E20iAVV50..G..TH;ACV51,ASV50..RHD201203-201504

main55900-33E30iAVV50..RHD..V201203-201504

main55900-33F00iAVV50..G..TAIW201503-201809

main55900-33F20iASV51..LHD;ASV50..E..(PHL,VN)201502-202007

main55900-33F50iASV50..G..PHL201502-201809

main55900-33F60iAVV50..RHD..G201502-201809

main55900-33F70iASV5#..IDN,MA,TH201502-201809

main55900-33F80iAVV50..RHD..V201502-201809

main55900-33F90iASV50..IND201504-201809

55902CPANEL SUB-ASSY, AIR CONDITIONER

main55902-33A80iACV51,ASV50;AVV50..IND,TAIW,TH201112-201504

55904AHOUSING SUB-ASSY, HEATER CONTROL

main55904-33270iACV51,ASV50,AVV50..LHD201112-201504

main55904-33280iAVV50..IND,TH;ACV51,ASV50..RHD201203-201504

main55904-33300iAVV50..V..TAIW201503-201809

main55904-33320iAVV50..G..TAIW201503-201809

86442ABOARD, HEATER CONTROL SWITCH

main86442-33040iACV51,AVV50..LHD;ASV50..LHD..(E,N)201112-201504

main86442-33050iASV50..G..PHL201203-201502

main86442-33060iAVV50..G..TH;ACV51,ASV50..RHD201203-201504

main86442-33070iAVV50..RHD..V201203-201504

main86442-33090iAVV50..V..TAIW201503-201809

main86442-33100iASV50..PHL,VN;ASV51,AVV50..LHD..(G,N)201502-202007

main86442-33110iAVV50..RHD201502-201809

main86442-33120iASV5#..RHD201502-201809

9009900297

main90099-00297

90167T0012

main90167-T0012

9046710203

main90467-10203

9356855016

main93568-55016

8 parts on this diagram · 7 diagrams in section
