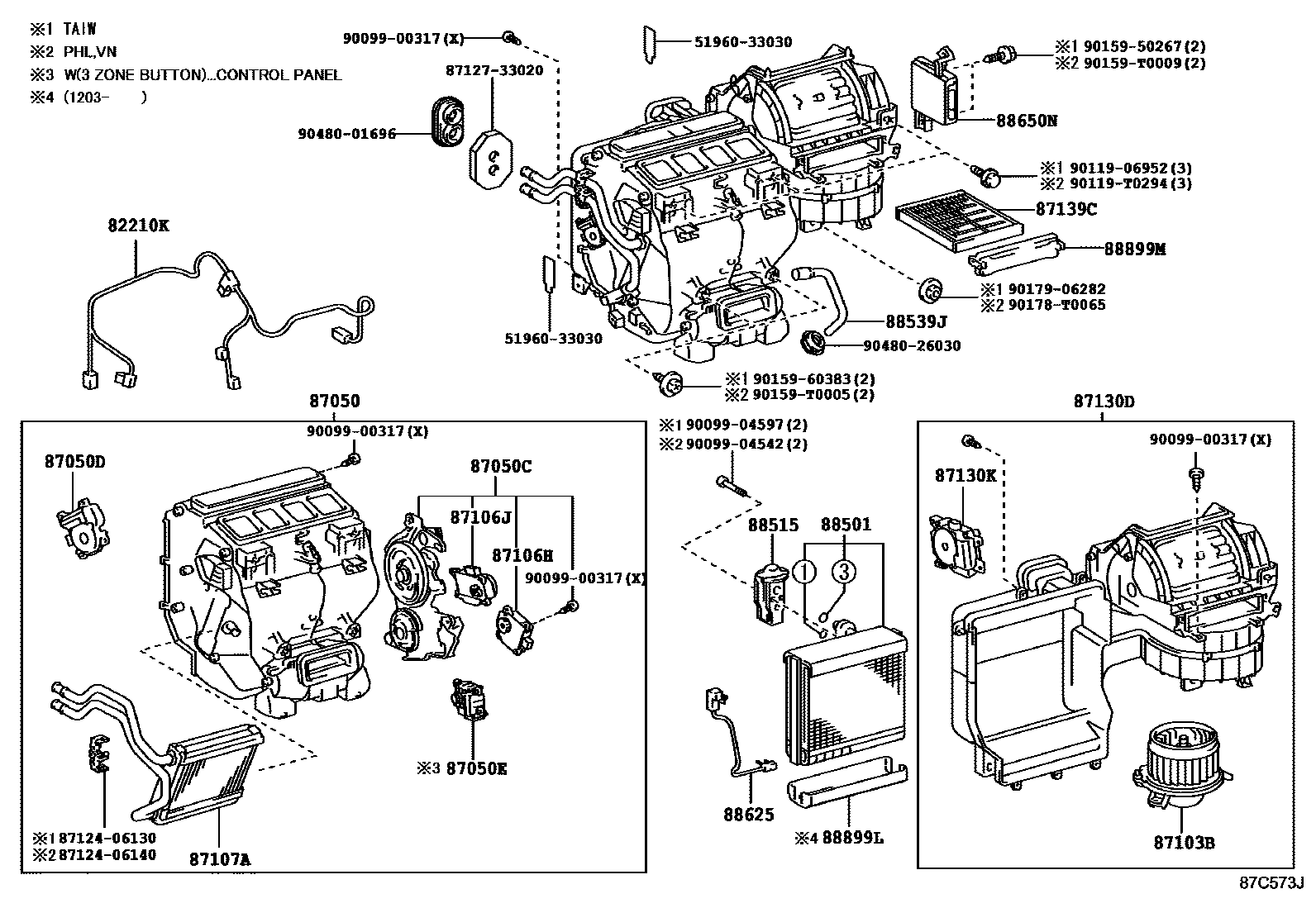

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1 0003 1O-RING

82210KHARNESS ASSY, AIR CONDITIONER

main82212-06020iACV51,ASV50,AVV50..TAIW201112-201511

main82212-06021iASV51,AVV50..TAIW201512-202007

main82212-06030iACV51,ASV50..(E,N)..(PHL,VN)201203-201511

main82212-06031iASV5#..(E,N)..(PHL,VN)201512-201903

main82212-06050iASV5#,AVV50..(E,G,N)..(IDN,MA,TH)201203-201511

main82212-06051iASV5#,AVV50..(E,G,N)..(IDN,MA,TH)201512-201809

main82212-06160iAVV50..G..TH201502-201511

SINGAPORE SPEC

main82212-06160iAVV50..RHD..V201203-201504

main82212-06161iASV50..IND;AVV50..V..TH201512-201811

main82212-06180iASV50..G..PHL201203-201511

main82212-06181iASV50..G..PHL201512-201809

87050RADIATOR ASSY, AIR CONDITIONER

main87050-06421iACV51,ASV50,AVV50..TAIW201112-201306

main87050-06422iASV51,AVV50..TAIW201307-202007

main87050-06431iACV51,ASV50..(E,N)..(PHL,VN)201203-201504

main87050-06432iASV5#..(E,N)..(PHL,VN)201502-201903

main87050-06441iAVV50..G..TH;ACV51,ASV50..RHD201203-201504

main87050-06442iASV5#,AVV50..(E,G,N)..(IDN,MA,TH)201502-201809

main87050-06690iAVV50..RHD..V201203-201504

main87050-06691iAVV50..IND201502-201811

main87050-06700iASV50..G..PHL201203-201502

main87050-06701iASV50..G..PHL201502-201809

87050CDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1

main87106-06161iAVV50..MA,TH;ASV5#..IDN,IND,MA,PHL,TH,VN201203-201903

main87106-06270iASV51,AVV50..TAIW201112-202007

87050DDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2

main87106-06170iAVV50..MA,TH;ASV5#..IDN,IND,MA,PHL,TH,VN201203-201903

main87106-06280iASV51,AVV50..TAIW201112-202007

87050EDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.3

main87106-06330iASV50..G..PHL;AVV50..RHD..V201203-201811

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-06061iAVV50..IND201203-201811

main87103-06100iASV51,AVV50..TAIW201112-202007

main87103-06110iASV5#..PHL,VN201203-201903

87106HSERVO SUB-ASSY, DAMPER(FOR AIRMIX)

main87106-30450iACV51,ASV50,AVV50..TAIW201307-202007

87106JSERVO SUB-ASSY, DAMPER(FOR MODE)

main87106-30450iACV51,ASV50,AVV50..TAIW201307-202007

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-06060iAVV50..MA,TH;ASV5#..IDN,IND,MA,PHL,TH,VN201203-201903

main87107-06090iASV51,AVV50..TAIW201112-202007

87130DBLOWER ASSY

main87130-06260iASV51,AVV50..TAIW201112-202007

main87130-06270iASV5#..PHL,VN201203-201903

main87130-06280iAVV50..IND,TH;ACV51,ASV50..RHD201203-201811

87130KDAMPER SERVO SUB-ASSY, BLOWER, NO.1

main87106-06260iASV51,AVV50..TAIW201112-202007

main87106-06340iAVV50..IND201203-201811

main87106-06350iACV51,ASV50..PHL,VN201203-201903

87139CFILTER, CLEAN AIR

main87139-02110iACV51,ASV50,AVV50..TAIW201112-201503

main87139-02110iACV51,ASV50,AVV50..TAIW201308-201503

MICRO DUST FILTER

main87139-02130iAVV50..IND,TH;ACV51,ASV50..IDN,IND,MA,PHL,TH,VN201308-201903

POLLEN FILTER

main87139-02130iACV51,ASV50,AVV50..IDN,IND,PHL,TH,VN201301-201504

main87139-02140iASV51,AVV50..TAIW201503-202007

MICRO DUST FILTER

main87139-50100iACV51,ASV50;AVV50..IND,TAIW,TH201308-202007

DEODORANT FILTER

main87139-52020iACV51,ASV50,AVV50..IDN,IND,PHL,TH,VN201203-201304

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-06180iACV51,ASV50..IDN,IND,MA,PHL,TH,VN201203-201504

main88501-06181iASV5#..IDN,IND,MA,PHL,TH,VN201502-201903

main88501-06320iACV51,ASV50..TAIW201112-201312

main88501-06321iACV51,ASV50..TAIW201401-202007

main88501-06330iAVV50..TAIW201202-201312

main88501-06331iAVV50..TAIW201401-201809

main88501-06340iAVV50..IND,TH201203-201504

main88501-06341iAVV50..RHD201502-201809

88515VALVE, COOLER EXPANSION

main88515-06110iAVV50..MA,TH;ASV5#..IDN,IND,MA,PHL,TH,VN201203-201903

main88515-06120iACV51,ASV50,AVV50..TAIW201112-202007

88539JHOSE, DRAIN COOLER

main88539-06050iACV51,ASV50,AVV50..TAIW201112-202007

main88539-06060iAVV50..IND201203-201903

main88539-06170iASV5#,AVV50..MA201205-201809

88625THERMISTOR, COOLER, NO.1

main88620-06030iACV51,ASV50,AVV50..TAIW201112-202007

main88620-06040iAVV50..IND201203-201903

88650NAMPLIFIER ASSY, AIR CONDITIONER

main88650-06550iACV51,ASV50..IDN,IND,MA,PHL,TH,VN201203-201302

main88650-06620iAVV50..IND,TH201203-201504

main88650-06720iACV51,ASV50..IDN,IND,MA,PHL,TH,VN201302-201504

main88650-06770iASV5#..IDN,MA,PHL,TH,VN201502-201608

main88650-06780iASV50..IND201504-201608

main88650-06790iAVV50..IND,TH201502-201608

main88650-06A90iAVV50..MA201503-201609

main88650-06C70iASV5#..IDN,MA,PHL,TH,VN201608-201903

main88650-06C80iASV50..IND201608-201811

main88650-06C90iAVV50..IND,TH201608-201811

main88650-06D00iAVV50..MA201609-201809

main88650-33A70iACV51,ASV50..TAIW201112-201309

main88650-33A90iAVV50..TAIW201202-201309

main88650-33B60iACV51,ASV50..TAIW201309-201503

main88650-33B70iAVV50..TAIW201309-201503

main88650-33C20iASV51..TAIW201503-201604

main88650-33C40iAVV50..TAIW201503-201604

main88650-33D60iAVV50..TAIW201604-201809

main88650-33D80iASV51..TAIW201604-202007

88899LPARTS, COOLING UNIT

main88899-06090iAVV50..IND201203-201903

88899MPLATE, COVER(FOR AIR FILTER)

main88899-06030iASV51,AVV50..TAIW201112-202007

main88899-06040iAVV50..IND201203-201903

main88899-06140iACV51,ASV50..MA201205-201809

5196033030HOOK ASSY, FRONT

main51960-33030

8712406130CLAMP, HEATER

main87124-06130

8712406140CLAMP, HEATER

main87124-06140

8712733020PACKING, HEATER AIR DAMPER

main87127-33020

9009900317

main90099-00317

9009904542

main90099-04542

9009904597

main90099-04597

9011906952

main90119-06952

90119T0294

main90119-T0294

9015950267

main90159-50267

9015960383

main90159-60383

90159T0005

main90159-T0005

90159T0009

main90159-T0009

90178T0065

main90178-T0065

9017906282

main90179-06282

9048001696

main90480-01696

9048026030

main90480-26030

36 parts on this diagram · 3 diagrams in section
