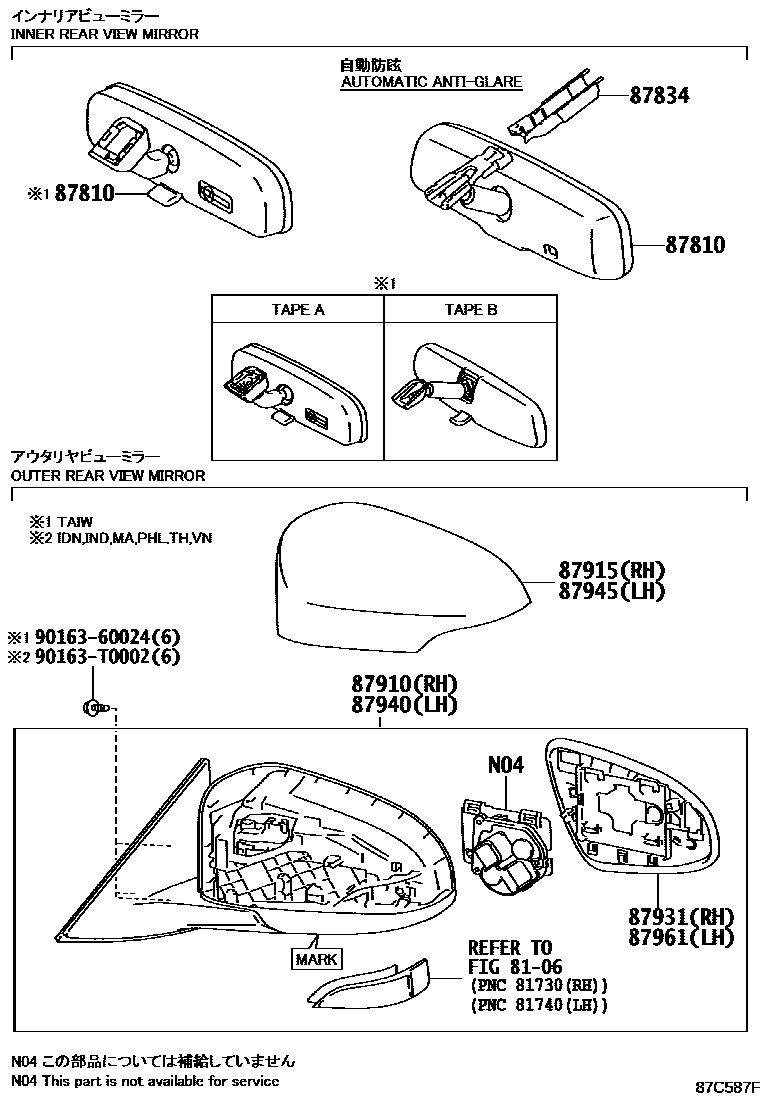

MIRROR
8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP
87810MIRROR ASSY, INNER REAR VIEW
TYPE B
TYPE A
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
87910MIRROR ASSY, OUTER REAR VIEW, RH
NO PAINT REQ.,MARK=E3
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
PAINT REQ.
PAINT REQ.
NO PAINT REQ.,2.5Q PACKAGE
PAINT REQ.,Q PACKAGE
PAINT REQ.,Q PACKAGE
87915COVER, OUTER MIRROR, RH
PAINT REQ.
PAINT REQ.
87931OUTER MIRROR, RH
MARK=E3
BRUNEI SPEC; SINGAPORE SPEC
Q PACKAGE
2.5Q PACKAGE
Q PACKAGE
87940MIRROR ASSY, OUTER REAR VIEW, LH
NO PAINT REQ.,MARK=E3
NO PAINT REQ.
NO PAINT REQ.; NO PAINT REQ.,BRUNEI SPEC; NO PAINT REQ.,SINGAPORE SPEC
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
PAINT REQ.
PAINT REQ.
2.5Q PACKAGE
PAINT REQ.,Q PACKAGE
PAINT REQ.,Q PACKAGE
87945COVER, OUTER MIRROR, LH
PAINT REQ.
PAINT REQ.
87961MIRROR OUTER, LH
BRUNEI SPEC; SINGAPORE SPEC
Q PACKAGE
2.5Q PACKAGE
Q PACKAGE
9016360024
main90163-60024
90163T0002
main90163-T0002
11 parts on this diagram · 1 diagram in section
