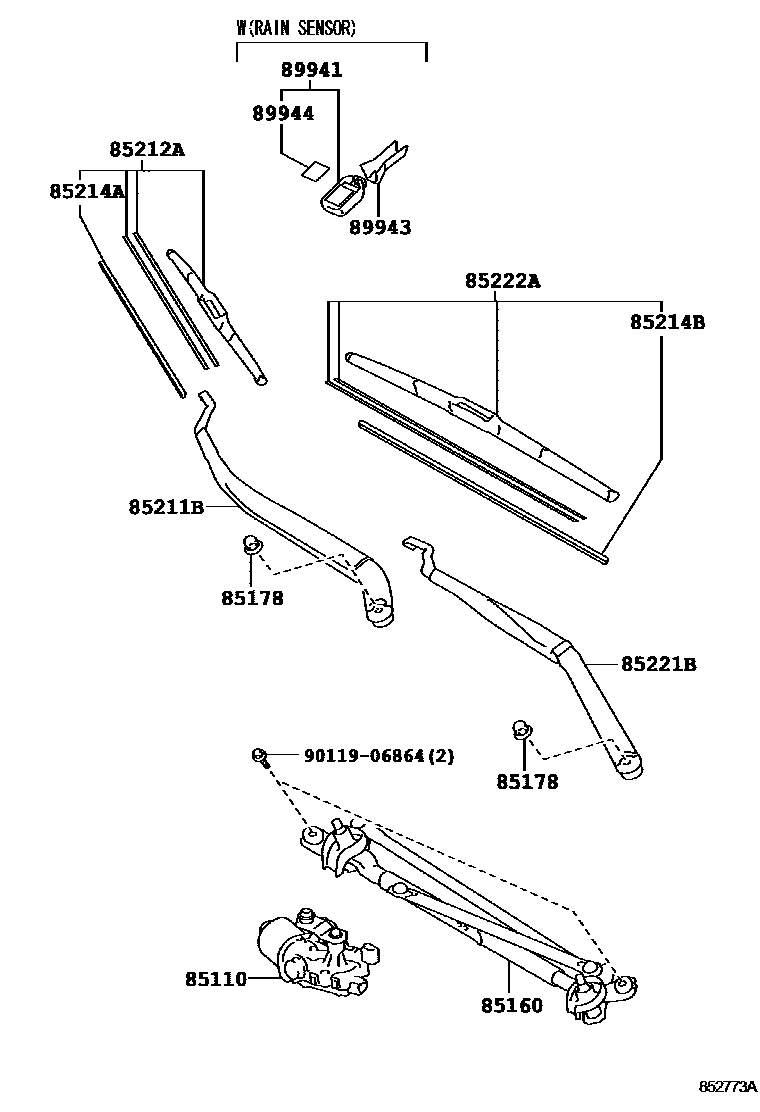

WINDSHIELD WIPER

0001 1 0002 1

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-06160iASV50..PHL,VN;ASV51,AVV50..LHD201502-202007

main85110-06170iASV5#,AVV50..RHD201502-201811

85160LINK ASSY, WINDSHIELD WIPER

main85150-06160iASV50..PHL,VN;ASV51,AVV50..LHD201502-202007

main85150-06170iAVV50..IND,TH;ACV51,ASV50..RHD201203-201504

85178NUT (FOR FRONT WIPER ARM SETTING)

main90176-10005×2iASV51,AVV50;ASV50..IDN,IND,MA,PHL,TH,VN201502-202007

85211BARM, FRONT WIPER, RH

main85211-06150iAVV50..IND,TH;ACV51,ASV50..RHD201203-201504

main85211-06160iACV51,ASV50,AVV50..LHD201112-201504

85212ABLADE, FR WIPER, RH

main85212-33250iAVV50..IND,TH;ACV51,ASV50..RHD201203-201504

main85212-33260iASV50..PHL,VN;ASV51,AVV50..LHD201502-202007

85214ARUBBER, WIPER, RH

main85214-33180iACV51,ASV50,AVV50..LHD201112-201504

main85214-52110iASV5#,AVV50..RHD201502-201811

85214BRUBBER, WIPER, LH

main85214-33180iASV5#,AVV50..RHD201502-201811

main85214-52110iASV50..PHL,VN;ASV51,AVV50..LHD201502-202007

85221BARM, FRONT WIPER, LH

main85221-06150iAVV50..IND,TH;ACV51,ASV50..RHD201203-201504

main85221-06160iACV51,ASV50,AVV50..LHD201112-201504

85222ABLADE, FR WIPER, LH

main85222-33260iAVV50..IND,TH;ACV51,ASV50..RHD201203-201504

main85222-33270iACV51,ASV50,AVV50..LHD201112-201504

89941SENSOR, RAIN

main89941-52010iASV50,AVV50..(G,V)..(IDN,IND,TH)201203-201504

89943COVER, RAIN SENSOR

main89943-42010iASV50,AVV50..(G,V)..(IDN,IND,TH)201203-201504

89944TAPE, RAIN SENSOR

main89944-42010iASV50,AVV50..(G,V)..(IDN,IND,TH)201203-201504

9011906864

main90119-06864

13 parts on this diagram · 2 diagrams in section
