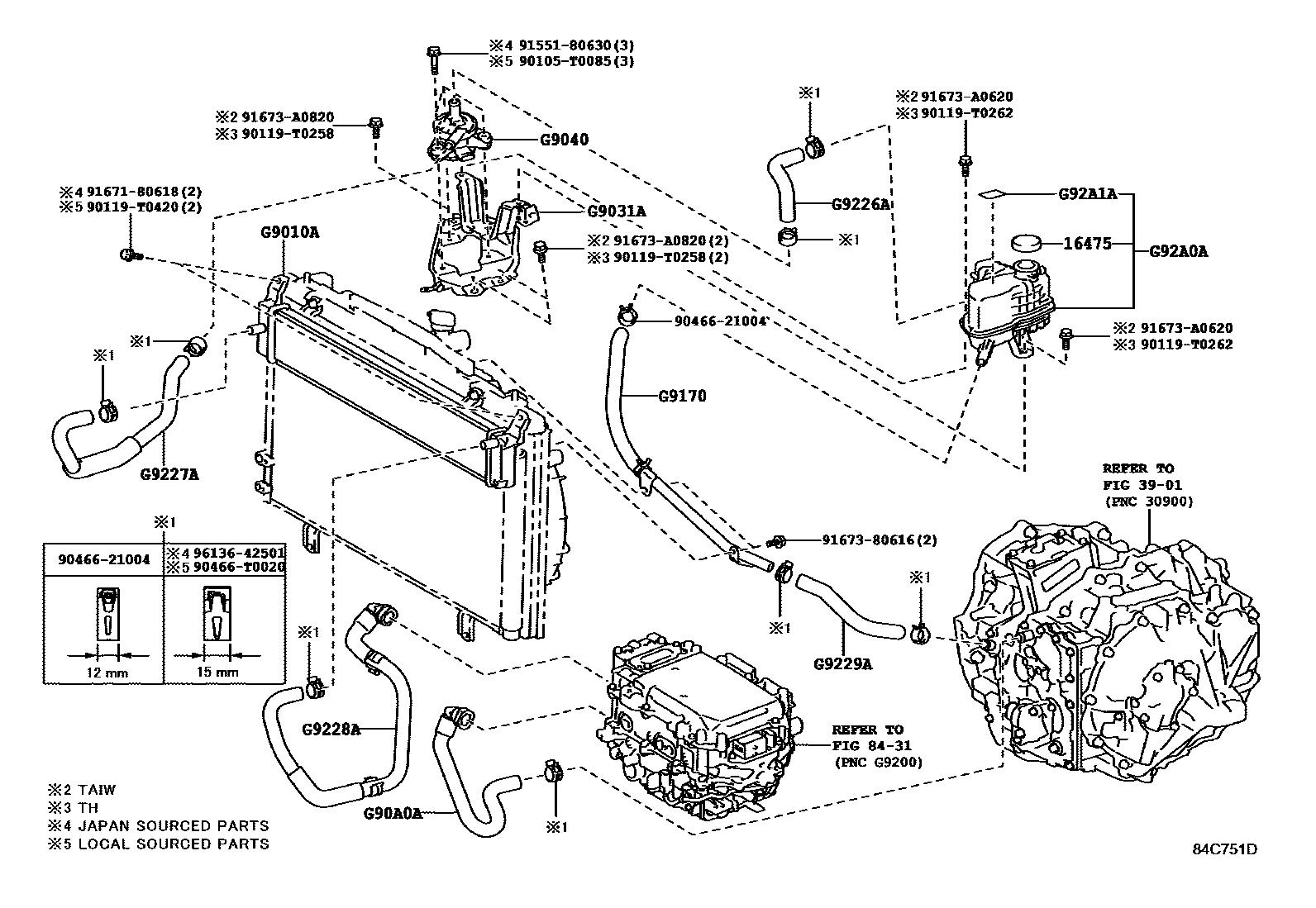

INVERTER COOLING

0001 1 0003 1

16475CAP, RESERVE TANK

main16475-28140i2ARFXE..AVV50..MA,TAIW,TH201605-201811

main16475-37010i2ARFXE..AVV50201202-201410

main16475-37011i2ARFXE..AVV50..IND,TAIW,TH201410-201604

3901TRANSAXLE ASSY(HEV OR BEV OR FCEV)

→ Go to FIG 39-01

8431HEV INVERTER

→ Go to FIG 84-31

G9010ARADIATOR ASSY

mainG901033030iAVV50..TH201202-201504

mainG901033031iAVV50..MA,TAIW,TH201504-201811

G9031ABRACKET SUB-ASSY, HV WATER PUMP

mainG903133030iAVV50..IND,TAIW,TH201202-201811

G9040INVERTER WATER PUMP ASSY(W/MOTOR)

mainG904033030iAVV50..IND,TAIW,TH201210-201809

mainG904033040iAVV50201202-201210

G90A0AHOSE ASSY, INVERTER COOLING, NO.1

mainG90A006020iAVV50..IND,TH201203-201811

mainG90A033010iAVV50..TAIW201202-201809

G9170PIPE ASSY, INVERTER COOLING NO.1

mainG917006040iAVV50..IND201203-201811

mainG917006050iAVV50..TAIW201202-201809

G9226AHOSE, INVERTER COOLING, NO.2

mainG922606020iAVV50..MA,TH201203-201811

mainG922633010iAVV50..TAIW201202-201809

G9227AHOSE, INVERTER COOLING, NO.3

mainG922706020iAVV50..IND,TH201203-201811

mainG922733010iAVV50..TAIW201202-201809

G9228AHOSE, INVERTER COOLING, NO.4

mainG90D006020iAVV50..IND,TH201203-201811

mainG90D033010iAVV50..TAIW201202-201809

G9229AHOSE, INVERTER COOLING, NO.5

mainG922906020iAVV50..MA,TH201203-201811

mainG922906030iAVV50..TAIW201202-201809

G92A0ATANK ASSY, INVERTER RESERVE

mainG92A033010iAVV50201202-201409

mainG92A033011iAVV50..MA,TAIW,TH201410-201811

G92A1ALABEL, HYBRID COOLANT SYSTEM INFORMATION

mainG92A133010iAVV50..TAIW201202-201809

NO.2

mainG92A176010iAVV50..IND201511-201811

mainG92A176010iAVV50..IND,TAIW,TH201202-201809

NO.1

90105T0085

main90105-T0085

90119T0258

main90119-T0258

90119T0262

main90119-T0262

90119T0420

main90119-T0420

9046621004

main90466-21004

90466T0020

main90466-T0020

9155180630

main91551-80630

9167180618

main91671-80618

9167380616

main91673-80616

91673A0620

main91673-A0620

91673A0820

main91673-A0820

9613642501

main96136-42501

26 parts on this diagram · 2 diagrams in section
