ABS & VSC

4102REAR AXLE SHAFT & HUB

→ Go to FIG 41-02

89510DSENSOR ASSY, BRAKE PEDAL STROKE

main89510-33020iAVV50..IND,TH201203-201504

main89510-33030iAVV50..TAIW201503-201809

89516CWIRE, SKID CONTROL SENSOR, RH

main89516-06210iASV5#,AVV50..IDN,IND,MA,PHL,TH,VN201502-201903

main89516-33070iASV51,AVV50..TAIW201503-202007

89516DWIRE, SKID CONTROL SENSOR, LH

main89516-06220iAVV50..IND,TH;ACV51,ASV50..IDN,IND,MA,PHL,TH,VN201203-201504

main89516-33080iACV51,ASV50,AVV50..TAIW201112-201503

89542SENSOR, SPEED, FRONT RH

main89542-33100iACV51,ASV50;AVV50..IND,TAIW,TH201112-201504

main89542-33120iASV51,AVV50;ASV50..IDN,IND,MA,PHL,TH,VN201502-202007

89543SENSOR, SPEED, FRONT LH

main89543-33090iACV51,ASV50;AVV50..IND,TAIW,TH201112-201504

main89543-33110iASV51,AVV50;ASV50..IDN,IND,MA,PHL,TH,VN201502-202007

90119T0195

main90119-T0195

90119T0260

main90119-T0260

90119T0276

main90119-T0276

90119T0282

main90119-T0282

91611G0612

main91611-G0612

91621J0612

main91621-J0612

91651B0618

main91651-B0618

9167180616

main91671-80616

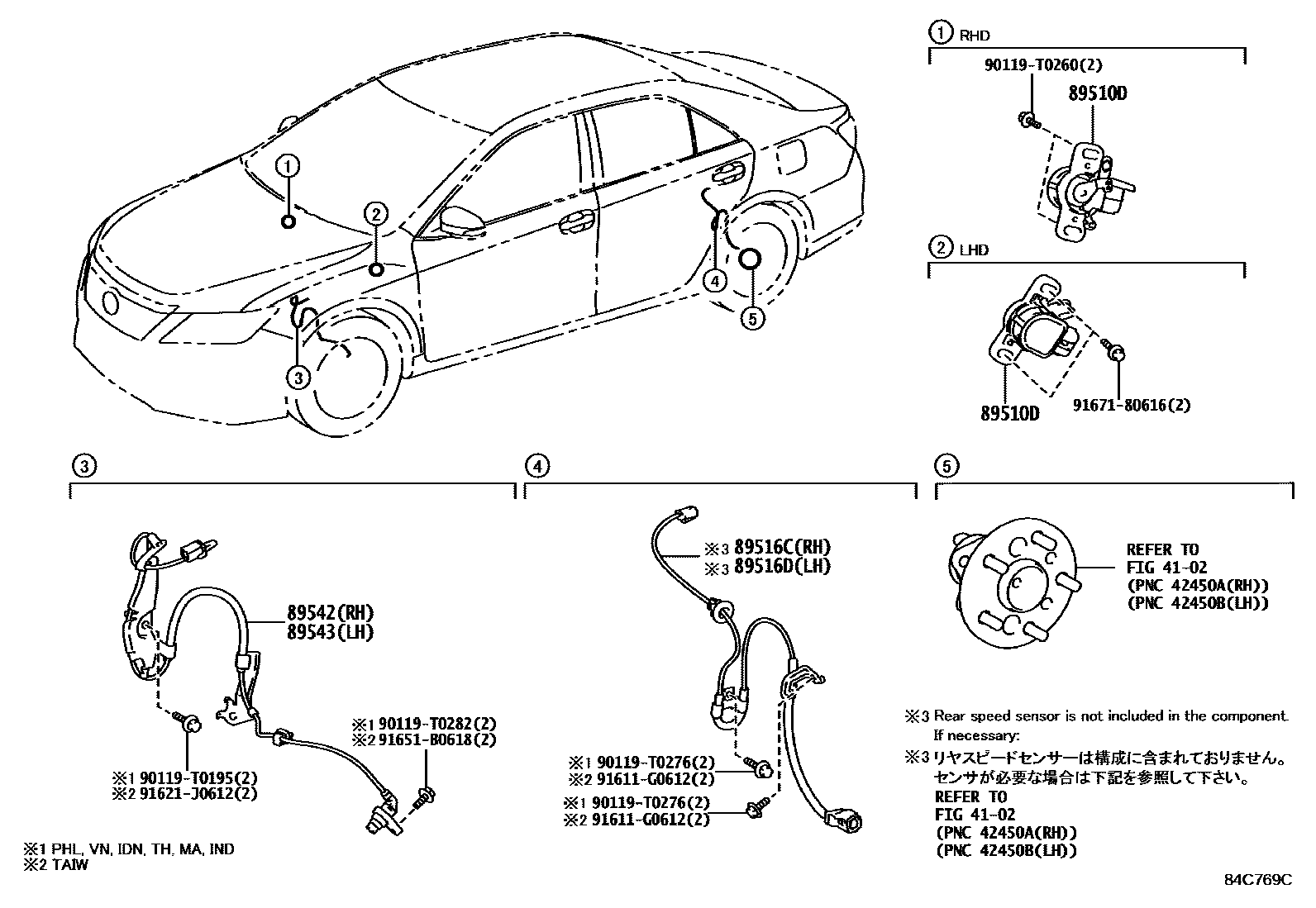

14 parts on this diagram · 1 diagram in section
