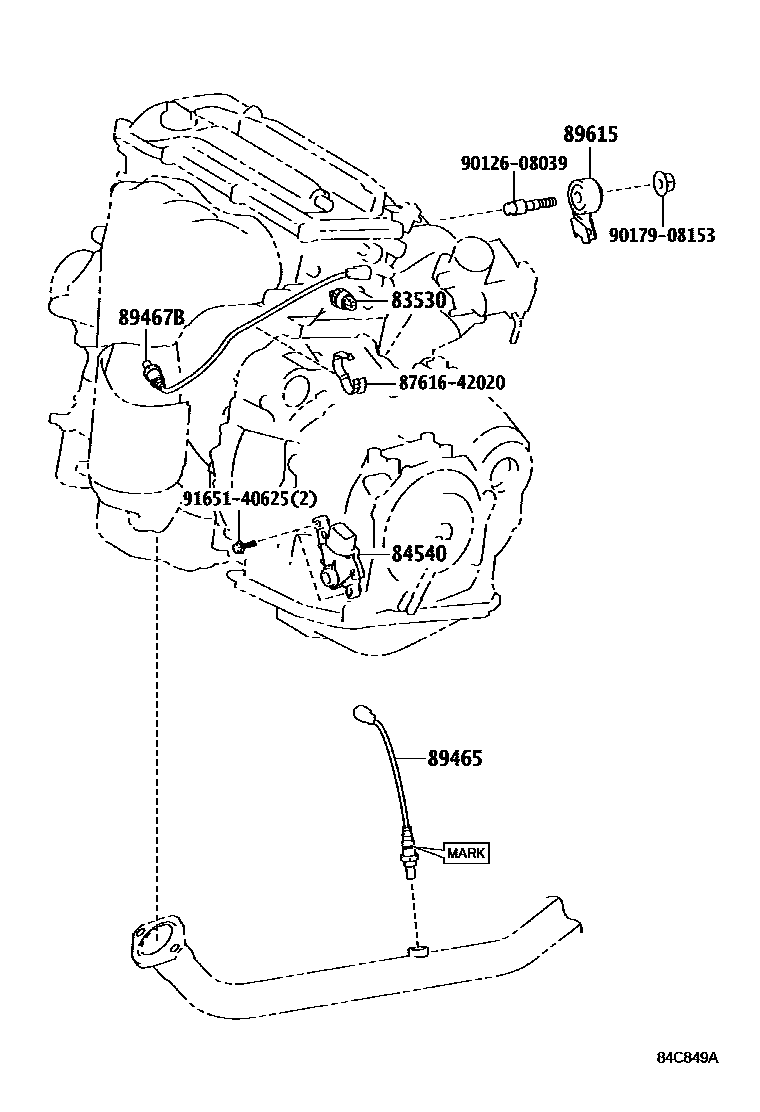

SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE & TRANSMISSION 0004 1ENGINE & TRANSMISSION 0005 1ENGINE ROOM 1/2 0008 1ENGINE ROOM 1/2 0011 1ENGINE ROOM 2/2 0014 1ENGINE ROOM 2/2 0017 1COWL 0019 1COWL 0021 1COWL 0024 1COWL 0027 1INSTRUMENT PANEL 0029 1INSTRUMENT PANEL 0031 1INSTRUMENT PANEL 0034 1INSTRUMENT PANEL 0037 1STEERING 0039 1STEERING 0042 1STEERING 0045 1SEAT 0046 1DOOR,ROOF,FLOOR & LUGGAGE DOO0049 1DOOR,ROOF,FLOOR & LUGGAGE DOO

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iACV51,ASV50;AVV50..IND,TAIW,TH201112-201903

DENSO

main83530-60020iACV51,ASV50;AVV50..IND,TAIW,TH201112-201903

YAZAKI

84540SWITCH ASSY, NEUTRAL START

main84540-33010iASV50201112-202007

main84540-48010iACV51201112-201504

89465SENSOR, OXYGEN

main89465-06230iACV51201112-201209

MARK=8946506230

main89465-06280iASV50..IDN,MA,PHL,VN201112-201209

main89465-33470iAVV50..IND,TAIW,TH201202-201811

main89465-33560iASV50..IND,TH201203-202007

main89465-33570iACV51..MA,VN201201-201504

MARK=8946533570

main89465-33640iAVV50..MA,TH201702-201809

main89465-33650iASV5#..IDN,MA,PHL,TH,VN201702-201903

89467BSENSOR, AIR FUEL RATIO

main89467-06170iAVV50..TAIW201112-201809

main89467-06220iASV51201502-202007

main89467-33160iACV51201112-201504

main89467-48190iASV50,AVV50..IDN,IND,MA,PHL,TH,VN201203-201903

89615SENSOR, KNOCK CONTROL

main89615-20090iACV51,ASV50;AVV50..IND,TAIW,TH201112-202007

8761642020CLAMP, COOLING UNIT CASE

main87616-42020

9012608039

main90126-08039

9017908153

main90179-08153

9165140625

main91651-40625

9 parts on this diagram · 22 diagrams in section
