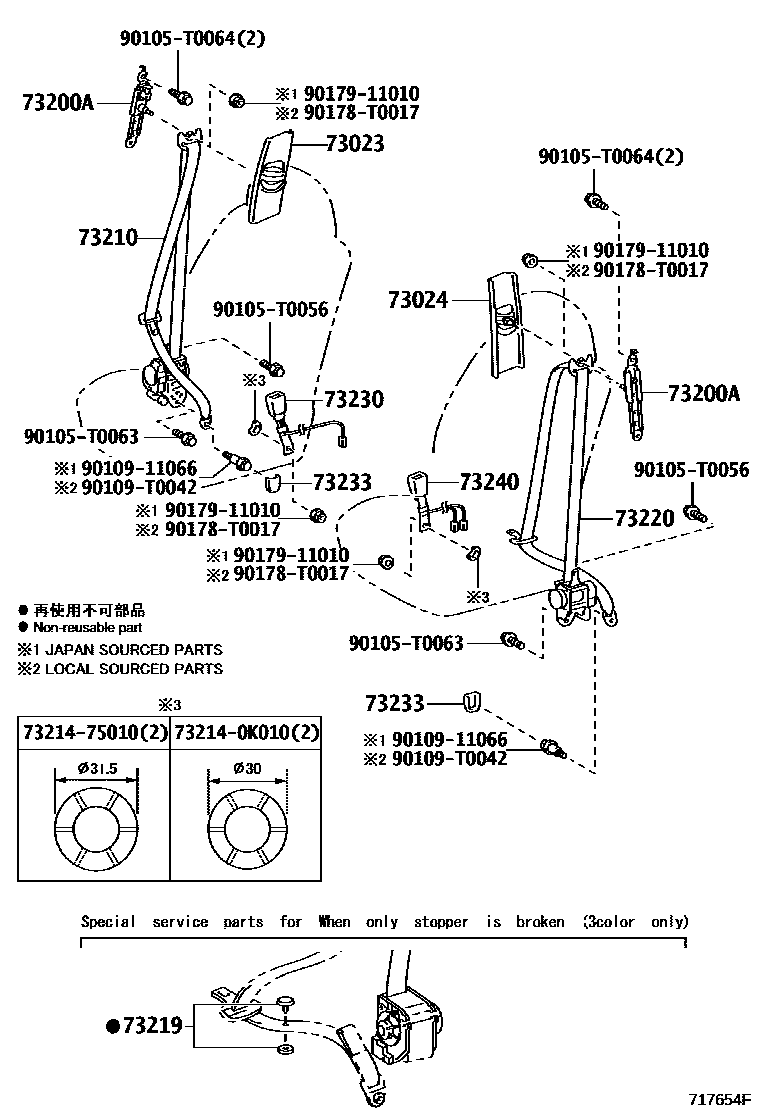

SEAT BELT & CHILD RESTRAINT SEAT

0001 1FRONT SEAT 0002 1FRONT SEAT 0003 1REAR SEAT 0004 1REAR SEAT

73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

main73023-06080-A0iAVV50..IND,TH;ACV51,ASV50..IDN,IND,MA,PHL,TH,VN201203-201504

SHELL,TRIM0#

main73023-06080-A2iAVV50..IND,TH;ASV5#..IDN,IND,MA,PHL,TH,VN201502-201903

FLAXEN,TRIM0#

main73023-06080-B0iASV50..G..(IDN,PHL);ACV51,ASV50..(E,G)..(MA,TH,VN)201205-201903

GRAY,TRIM2#

main73023-06080-B0iAVV50..RHD;ASV5#..E..(TH,VN)201502-201903

GRAY,TRIM2#,4#

main73023-06090-A0iACV51,ASV50,AVV50..TAIW201112-201503

SHELL,TRIM0#

main73023-06090-A2iASV51,AVV50..TAIW201503-202007

FLAXEN,TRIM0#

main73023-06090-B0iACV51,ASV50,AVV50..TAIW201112-202007

GRAY,TRIM2#

73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

main73024-06110-A0iAVV50..IND,TH;ACV51,ASV50..IDN,IND,MA,PHL,TH,VN201203-201504

SHELL,TRIM0#

main73024-06110-A2iAVV50..IND,TH;ASV5#..IDN,IND,MA,PHL,TH,VN201502-201903

FLAXEN,TRIM0#

main73024-06110-B0iAVV50..RHD;ASV5#..E..(TH,VN)201205-201903

GRAY,TRIM2#

main73024-06110-B0iAVV50..RHD;ASV5#..E..(TH,VN)201502-201903

GRAY,TRIM2#,4#

main73024-06120-A0iACV51,ASV50,AVV50..TAIW201112-201503

SHELL,TRIM0#

main73024-06120-A2iASV51,AVV50..TAIW201503-202007

FLAXEN,TRIM0#

main73024-06120-B0iACV51,ASV50,AVV50..TAIW201112-202007

GRAY,TRIM2#

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-02140iASV5#,AVV50..IDN,IND,MA,PHL,TH,VN201311-201903

main73200-06060iACV51,ASV50,AVV50..TAIW201112-202007

main73200-12070iACV51,ASV50,AVV50..IDN,IND,MA,PHL,TH,VN201205-201310

main73200-53010iACV51,ASV50,AVV50..IDN,PHL,TH201203-201204

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-06371-A0iACV51..N..MA;ACV51,AVV50..IND,TH,VN;ASV50..IDN,IND,MA,PHL,TH,VN201203-201504

IVORY,TRIM0#

main73210-06371-A1iAVV50..IND,TH;ASV5#..IDN,IND,MA,PHL,TH,VN201502-201903

IVORY,TRIM0#

main73210-06371-C0iAVV50..RHD;ASV5#..E..(TH,VN)201502-201903

BLACK,TRIM2#,4#

main73210-06371-C0iACV51..E;ASV50..MA,VN201205-201903

BLACK,TRIM2#

main73210-06380-A0iACV51,ASV50,AVV50..TAIW201112-201503

IVORY,TRIM0#

main73210-06380-A1iASV51,AVV50..TAIW201503-202007

FLAXEN,TRIM0#

main73210-06380-C0iACV51,ASV50,AVV50..TAIW201112-202007

BLACK,TRIM2#

73219STOPPER, TONGUE PLATE

main73219-33010iACV51,ASV50;AVV50..IND,TAIW,TH201112-202007

BLACK

main73219-33020iACV51,ASV50;AVV50..IND,TAIW,TH201112-202007

GRAY

main73219-33030iACV51,ASV50;AVV50..IND,TAIW,TH201112-202007

BEIGE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-06341-A0iACV51..N..MA;ACV51,AVV50..IND,TH,VN;ASV50..IDN,IND,MA,PHL,TH,VN201203-201504

IVORY,TRIM0#

main73220-06341-A1iAVV50..IND,TH;ASV5#..IDN,IND,MA,PHL,TH,VN201502-201903

IVORY,TRIM0#

main73220-06341-C0iAVV50..RHD;ASV5#..E..(TH,VN)201502-201903

BLACK,TRIM2#,4#

main73220-06341-C0iACV51..E;ASV50..MA,VN201205-201903

BLACK,TRIM2#

main73220-06350-A0iACV51,ASV50,AVV50..TAIW201112-201503

IVORY,TRIM0#

main73220-06350-A1iASV51,AVV50..TAIW201503-202007

FLAXEN,TRIM0#

main73220-06350-C0iACV51,ASV50,AVV50..TAIW201112-202007

BLACK,TRIM2#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-06550-A0iACV51..N..MA;ASV50..E..IDN201203-201503

SHELL,TRIM0#

main73230-06550-A1iASV51..N..MA;ASV50..E..IDN201502-201809

FLAXEN,TRIM0#

main73230-06550-C0iASV51..N..MA201503-201809

BLACK,TRIM2#

main73230-06560-A0iACV51..VN;ASV50..E..PHL201203-201504

SHELL,TRIM0#

main73230-06560-A1iASV50..E..PHL201502-201809

FLAXEN,TRIM0#

main73230-06560-C0iASV50..E..PHL201502-201809

BLACK,TRIM2#

main73230-06570-A0iASV50..G..IDN;ASV50..IND,MA,TH;ACV51,AVV50..IND,TH201203-201504

SHELL,TRIM0#

main73230-06570-A1iAVV50..IND,TH;ASV50..G..IDN;ASV5#..(E,G)..(IND,MA,TH)201502-201811

FLAXEN,TRIM0#

main73230-06570-C0iASV5#..TH;AVV50..RHD201205-201811

BLACK,TRIM2#

main73230-06570-C0iASV51..E..MA;ASV50..RHD..G201502-201811

BLACK,TRIM2#,4#

main73230-06580-A0iASV50..VN;ASV50..G..PHL201203-201504

SHELL,TRIM0#

main73230-06580-A1iASV5#..VN;ASV50..G..PHL201502-201903

FLAXEN,TRIM0#

main73230-06580-C0iASV50..VN201504-201903

BLACK,TRIM2#,4#

main73230-06580-C0iASV50..VN;ASV50..G..PHL201205-201903

BLACK,TRIM2#

main73230-06600-A0iACV51,ASV50,AVV50..(E,G,N)..TAIW201112-201503

SHELL,TRIM0#

main73230-06600-A1iASV51,AVV50..(G,N)..TAIW201503-202007

FLAXEN,TRIM0#

main73230-06600-C0iASV51,AVV50..(G,N)..TAIW201112-202007

BLACK,TRIM2#

main73230-06620-A0iAVV50..V..TAIW201202-201503

SHELL,TRIM0#

main73230-06620-A1iAVV50..V..TAIW201503-201809

FLAXEN,TRIM0#

main73230-06620-C0iAVV50..V..TAIW201202-201809

BLACK,TRIM2#

73233COVER, LAP BELT OUTER ANCHOR

main73233-0M010-A0iASV51,AVV50..TAIW201702-202007

FLAXEN,TRIM0#

main73233-0M010-C0iASV51,AVV50..TAIW201702-202007

BLACK,TRIM2#

main73233-60020-A1iASV50;ACV51..N..MA;ACV51,AVV50..IND,TAIW,TH,VN201112-201504

SHELL,TRIM0#

main73233-60020-A4iASV5#..MA201503-201903

FLAXEN,TRIM0#

main73233-60020-A4iAVV50..IND,TAIW,TH;ASV50..IDN,IND,PHL,TH,VN;ASV51..(E,N)..(TAIW,TH,VN)201502-201610

FLAXEN,TRIM00

main73233-60020-C0iASV50..G..IDN;AVV50..IND,TAIW,TH;ASV50..IND,PHL,TH,VN;ASV51..(E,N)..(TAIW,TH,VN)201502-201610

BLACK,TRIM00,2#

main73233-60020-C0iASV50..E..IDN201502-201610

BLACK,TRIM00

main73233-60020-C0iASV5#,AVV50..MA201112-201610

BLACK,TRIM2#

main73233-60020-C1iAVV50..RHD..G;ASV5#..E..(TH,VN)201610-201903

BLACK,TRIM2#,4#

main73233-60020-C1iASV51,AVV50..TAIW201610-201809

BLACK,TRIM2#

main73233-60020-C1iAVV50..RHD..V201610-201811

BLACK,TRIM4#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-06550-A0iACV51..VN;ASV50..E..PHL201203-201504

SHELL,TRIM0#

main73230-06550-A1iASV50..E..PHL201502-201809

FLAXEN,TRIM0#

main73230-06550-C0iASV50..E..PHL201502-201809

BLACK,TRIM2#

main73230-06560-A0iACV51..N..MA;ASV50..E..IDN201203-201503

SHELL,TRIM0#

main73230-06560-A1iASV51..N..MA;ASV50..E..IDN201502-201809

FLAXEN,TRIM0#

main73230-06560-C0iASV51..N..MA201503-201809

BLACK,TRIM2#

main73230-06570-A0iASV50..VN;ASV50..G..PHL201203-201504

SHELL,TRIM0#

main73230-06570-A1iASV5#..VN;ASV50..G..PHL201502-201903

FLAXEN,TRIM0#

main73230-06570-C0iASV5#..(G,N)..(PHL,VN)201205-201903

BLACK,TRIM2#

main73230-06570-C0iASV50..VN201504-201903

BLACK,TRIM2#,4#

main73230-06580-A0iASV50..G..IDN;ASV50..IND,MA,TH;ACV51,AVV50..IND,TH201203-201504

SHELL,TRIM0#

main73230-06580-A1iAVV50..IND,TH;ASV50..G..IDN;ASV5#..(E,G)..(IND,MA,TH)201502-201811

FLAXEN,TRIM0#

main73230-06580-C0iASV5#..TH;AVV50..RHD201205-201811

BLACK,TRIM2#

main73230-06580-C0iASV5#..TH;AVV50..RHD201502-201811

BLACK,TRIM2#,4#

main73230-06590-A0iACV51,ASV50..N..TAIW201112-201503

SHELL,TRIM0#

main73230-06590-A1iASV51..N..TAIW201503-202007

FLAXEN,TRIM0#

main73230-06590-C0iASV51..N..TAIW201112-202007

BLACK,TRIM2#

main73230-06610-A0iASV50,AVV50..(E,G,V)..TAIW201112-201503

SHELL,TRIM0#

main73230-06610-A1iASV51..G201503-201809

FLAXEN,TRIM0#

main73230-06610-C0iASV50,AVV50..(E,G,V)..TAIW201112-201809

BLACK,TRIM2#

732140K010PLATE, FRONT SEAT BELT ANCHOR

main73214-0K010

7321475010PLATE, FRONT SEAT BELT ANCHOR

main73214-75010

90105T0056

main90105-T0056

90105T0063

main90105-T0063

90105T0064

main90105-T0064

9010911066

main90109-11066

90109T0042

main90109-T0042

90178T0017

main90178-T0017

9017911010

main90179-11010

18 parts on this diagram · 4 diagrams in section
