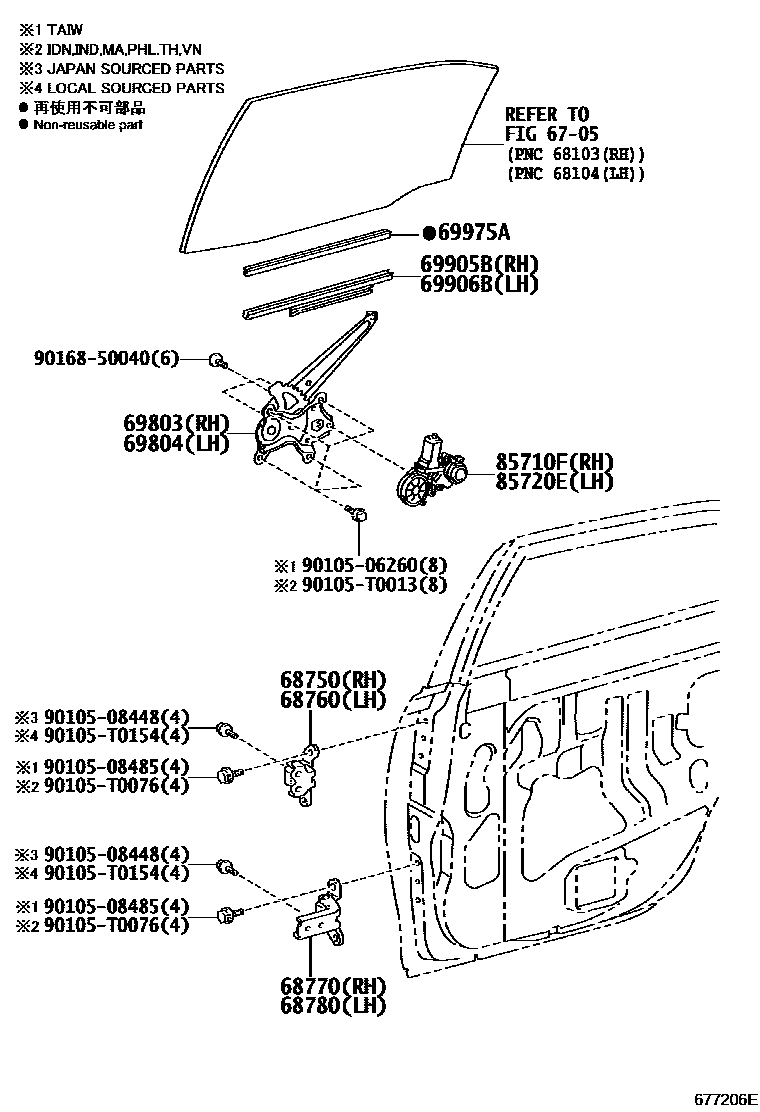

REAR DOOR WINDOW REGULATOR & HINGE

6705REAR DOOR PANEL & GLASS

→ Go to FIG 67-05

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-0D030iASV51,AVV50;ASV50..IDN,IND,MA,PHL,TH,VN201502-202007

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-0D030iACV51,ASV50;AVV50..IND,TAIW,TH201112-201504

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-0D030iACV51,ASV50;AVV50..IND,TAIW,TH201112-201504

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-0D030iACV51,ASV50;AVV50..IND,TAIW,TH201112-201504

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-06060iACV51,ASV50,AVV50..IND,VN201203-201504

main69803-06170iASV51,AVV50..TAIW201503-202007

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-06060iACV51,ASV50,AVV50..IDN,PHL,TH201203-201502

main69804-06170iACV51,ASV50,AVV50..TAIW201112-201502

69905BCHANNEL SUB-ASSY, REAR DOOR GLASS, RH

main69905-33020iACV51,ASV50;AVV50..IND,TAIW,TH201112-201504

69906BCHANNEL SUB-ASSY, REAR DOOR GLASS, LH

main69906-33020iACV51,ASV50;AVV50..IND,TAIW,TH201112-201504

69975AFILLER, REAR DOOR GLASS CHANNEL

main69975-33010×2iACV51,ASV50;AVV50..IND,TAIW,TH201112-201504

85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85720-06120iACV51,ASV50,AVV50..(E,G,N)..TAIW201112-201502

main85720-06250iACV51,ASV50..VN201203-201504

main85720-06260iAVV50..V..TAIW201202-201502

main85720-06261iAVV50..V..TAIW201503-201809

main85720-06270iAVV50..IND201308-201504

main85720-0K010iACV51,ASV50..MA201203-201503

85720EMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85710-06090iACV51,ASV50,AVV50..(E,G,N)..TAIW201112-201502

main85710-06220iACV51,ASV50..VN201203-201504

main85710-06230iAVV50..V..TAIW201202-201502

main85710-06231iAVV50..V..TAIW201503-201809

main85710-06250iAVV50..IND201308-201504

main85710-0K010iACV51,ASV50..MA201203-201503

9010506260

main90105-06260

9010508448

main90105-08448

9010508485

main90105-08485

90105T0013

main90105-T0013

90105T0076

main90105-T0076

90105T0154

main90105-T0154

9016850040

main90168-50040

19 parts on this diagram · 1 diagram in section
