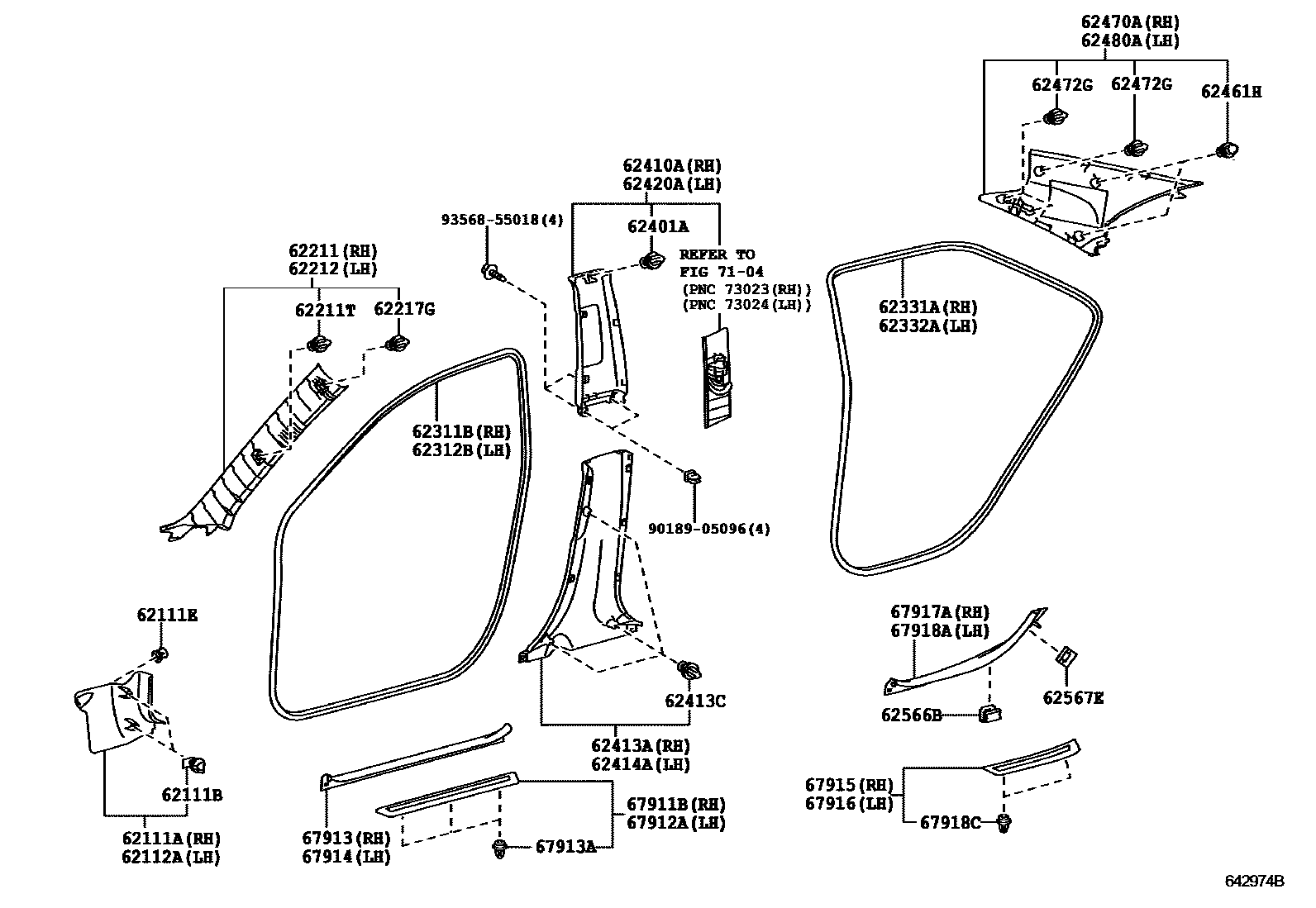

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

0001 1 0002 1 0003 1W(SRS CURTAIN SHIELD AIR BAG)

62111ATRIM SUB-ASSY, COWL SIDE, RH

main62101-06171-A0iASV50..RHD;ACV51..N..MA;ACV51,AVV50..IND,TH201203-201504

SHELL,TRIM0#

sub62101-06171

main62101-06171-A1iASV5#..RHD;AVV50..IND,TH201502-201811

FLAXEN,TRIM0#

sub62101-06171

main62101-06171-C0iACV51..E;ASV50..MA201205-201811

BLACK,TRIM2#

sub62101-06171

main62101-06171-C0iASV5#..TH;AVV50..RHD201502-201811

BLACK,TRIM2#,4#

sub62101-06171

main62101-06180-A0iACV51,ASV50,AVV50..LHD201112-201504

SHELL,TRIM0#

main62101-06180-A1iASV50..PHL,VN;ASV51,AVV50..LHD201502-202007

FLAXEN,TRIM0#

main62101-06180-C0iASV50..TAIW,VN;ACV51,AVV50..TAIW201112-202007

BLACK,TRIM2#

main62101-06180-C0iASV50..VN201504-201903

BLACK,TRIM2#,4#

62111BCLIP(FOR COWL SIDE TRIM)

main90467-09212iACV51,ASV50;AVV50..IND,TAIW,TH201112-202007

62111ERETAINER, COWL SIDE TRIM

main90467-06147iACV51,ASV50;AVV50..IND,TAIW,TH201301-202007

main90467-06193-C0iACV51,ASV50,AVV50201112-201212

BLACK

62112ATRIM SUB-ASSY, COWL SIDE, LH

main62102-06170-A0iAVV50..IND,TH;ACV51,ASV50..RHD201203-201504

SHELL,TRIM0#

sub62102-06170

main62102-06170-A1iASV5#..RHD;AVV50..IND,TH201502-201811

FLAXEN,TRIM0#

sub62102-06170

main62102-06170-C0iASV50..G..IDN;ACV51,ASV50..(E,G)..(MA,TH)201205-201811

BLACK,TRIM2#

sub62102-06170

main62102-06170-C0iASV51..MA;ASV50..RHD..G201502-201811

BLACK,TRIM2#,4#

sub62102-06170

main62102-06180-A0iACV51,ASV50,AVV50..LHD201112-201504

SHELL,TRIM0#

main62102-06180-A1iASV50..PHL,VN;ASV51,AVV50..LHD201502-202007

FLAXEN,TRIM0#

main62102-06180-C0iASV50..TAIW,VN;ACV51,AVV50..TAIW201112-202007

BLACK,TRIM2#

main62102-06180-C0iASV50..VN201504-201903

BLACK,TRIM2#,4#

62211GARNISH, FRONT PILLAR, RH

main62210-06240-A0iASV5#..IDN,PHL,TH201502-201903

FLAXEN,TRIM0#

main62210-06240-B0iASV50..VN201502-201903

GRAY,TRIM2#,4#

main62210-06240-B0iASV50..IND201504-201811

GRAY,TRIM2#

main62210-06260-A0iAVV50..IND,TH;ACV51,ASV50..IDN,IND,MA,PHL,TH,VN201203-201504

SHELL,TRIM0#

sub62210-06260

main62210-06260-A1iASV5#..VN201502-201611

FLAXEN,TRIM0#

sub62210-06260

main62210-06260-B0iASV5#..VN201205-201611

GRAY,TRIM2#

sub62210-06260

main62210-06270-A0iACV51,ASV50,AVV50..TAIW201112-201503

SHELL,TRIM0#

main62210-06270-A1iASV51..N..TAIW201503-202007

FLAXEN,TRIM0#

main62210-06270-B0iACV51,ASV50,AVV50..TAIW201112-202007

GRAY,TRIM2#

main62210-06280-A1iASV51,AVV50..(G,V)..TAIW201705-201809

FLAXEN,TRIM0#

main62210-06280-B0iASV51,AVV50..(G,V)..TAIW201705-201809

GRAY,TRIM2#

62211TCLIP(FOR FRONT PILLAR GARNISH)

main90467-10161iACV51,ASV50,AVV50..TAIW201112-202007

main90467-T0021iAVV50..IND,TH;ACV51,ASV50..IDN,IND,MA,PHL,TH,VN201203-201903

62212GARNISH, FRONT PILLAR, LH

main62220-06240-A0iASV50..MA201502-201903

FLAXEN,TRIM0#

main62220-06240-B0iAVV50..RHD201502-201903

GRAY,TRIM2#,4#

main62220-06240-B0iASV50..IND201504-201811

GRAY,TRIM2#

main62220-06260-A0iAVV50..IND,TH;ACV51,ASV50..IDN,IND,MA,PHL,TH,VN201203-201504

SHELL,TRIM0#

sub62220-06260

main62220-06260-A1iASV5#..VN201502-201611

FLAXEN,TRIM0#

sub62220-06260

main62220-06260-B0iASV5#..PHL,TH;ASV50..G..IDN201205-201611

GRAY,TRIM2#

sub62220-06260

main62220-06270-A0iACV51,ASV50,AVV50..TAIW201112-201503

SHELL,TRIM0#

main62220-06270-A1iASV51..N..TAIW201503-202007

FLAXEN,TRIM0#

main62220-06270-B0iACV51,ASV50,AVV50..TAIW201112-202007

GRAY,TRIM2#

main62220-06280-A1iASV51,AVV50..(G,V)..TAIW201705-201809

FLAXEN,TRIM0#

main62220-06280-B0iASV51,AVV50..(G,V)..TAIW201705-201809

GRAY,TRIM2#

62217GCLIP, FRONT PILLAR GARNISH

main62217-33040iASV5#..IDN,PHL,TH201502-201903

main90467-10161iASV51..N..TAIW201112-202007

main90467-T0021iASV5#..VN201203-201611

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-06160-A0iACV51,ASV50,AVV50..TAIW201112-201503

SHELL,TRIM0#

main62311-06160-A1iASV51,AVV50..TAIW201503-202007

FLAXEN,TRIM0#

main62311-06160-C0iACV51,ASV50,AVV50..TAIW201112-202007

BLACK,TRIM2#

main62311-06170-A0iACV51,ASV50,AVV50..IDN,IND,PHL,TH,VN201203-201504

SHELL,TRIM0#

sub62311-06170

main62311-06170-A1iASV5#,AVV50..IDN,IND,PHL,TH,VN201502-201903

FLAXEN,TRIM0#

sub62311-06170

main62311-06170-C0iASV50..G..(IDN,PHL);ACV51,ASV50..E..(TH,VN)201207-201903

BLACK,TRIM2#

sub62311-06170

main62311-06170-C0iASV50..E..PHL;ASV5#..(G,N)..(IDN,IND,PHL,VN)201502-201903

BLACK,TRIM2#,4#

sub62311-06170

main62311-06180-A0iACV51,ASV50..(G,N)..MA201205-201503

SHELL,TRIM0#

main62311-06180-C0iACV51,ASV50..(E,G)..MA201205-201809

BLACK,TRIM2#

main62311-06180-C0iASV5#..MA201503-201809

BLACK,TRIM2#,4#

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-06160-A0iACV51,ASV50,AVV50..TAIW201112-201503

SHELL,TRIM0#

main62312-06160-A1iASV51,AVV50..TAIW201503-202007

FLAXEN,TRIM0#

main62312-06160-C0iASV51,AVV50..TAIW201112-202007

BLACK,TRIM2#

main62312-06170-A0iACV51,ASV50,AVV50..IDN,IND,PHL,TH,VN201203-201504

SHELL,TRIM0#

sub62312-06170

main62312-06170-A1iASV5#,AVV50..IDN,IND,PHL,TH,VN201502-201903

FLAXEN,TRIM0#

sub62312-06170

main62312-06170-C0iASV50..E..PHL;ASV5#..(G,N)..(IDN,IND,PHL,VN)201207-201903

BLACK,TRIM2#

sub62312-06170

main62312-06170-C0iAVV50..IND,TH;ASV5#..E..(TH,VN)201502-201903

BLACK,TRIM2#,4#

sub62312-06170

main62312-06180-A0iACV51,ASV50..(G,N)..MA201205-201503

SHELL,TRIM0#

main62312-06180-C0iAVV50..MA201205-201809

BLACK,TRIM2#

main62312-06180-C0iAVV50..MA201503-201809

BLACK,TRIM2#,4#

62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62331-06150-A0iACV51,ASV50,AVV50..TAIW201112-201503

SHELL,TRIM0#

main62331-06150-A1iASV51,AVV50..TAIW201503-202007

FLAXEN,TRIM0#

main62331-06150-C0iASV51,AVV50..TAIW201112-202007

BLACK,TRIM2#

main62331-06160-A0iACV51,ASV50,AVV50..IDN,IND,PHL,TH,VN201203-201504

SHELL,TRIM0#

sub62331-06160

main62331-06160-A1iASV5#,AVV50..IDN,IND,PHL,TH,VN201502-201903

FLAXEN,TRIM0#

sub62331-06160

main62331-06160-C0iAVV50..IND,TH;ASV5#..E..(TH,VN)201502-201903

BLACK,TRIM2#,4#

sub62331-06160

main62331-06160-C0iAVV50..IND,TH;ASV5#..E..(TH,VN)201207-201903

BLACK,TRIM2#

sub62331-06160

main62331-06170-A0iACV51,ASV50..(G,N)..MA201205-201503

SHELL,TRIM0#

main62331-06170-C0iASV5#..MA201205-201809

BLACK,TRIM2#

main62331-06170-C0iAVV50..MA201503-201809

BLACK,TRIM2#,4#

62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main62332-06150-A0iACV51,ASV50,AVV50..TAIW201112-201503

SHELL,TRIM0#

main62332-06150-A1iASV51,AVV50..TAIW201503-202007

FLAXEN,TRIM0#

main62332-06150-C0iASV51,AVV50..TAIW201112-202007

BLACK,TRIM2#

main62332-06160-A0iACV51,ASV50,AVV50..IDN,IND,PHL,TH,VN201203-201504

SHELL,TRIM0#

sub62332-06160

main62332-06160-A1iASV5#,AVV50..IDN,IND,PHL,TH,VN201502-201903

FLAXEN,TRIM0#

sub62332-06160

main62332-06160-C0iASV50..E..PHL;ASV5#..(G,N)..(IDN,IND,PHL,VN)201207-201903

BLACK,TRIM2#

sub62332-06160

main62332-06160-C0iAVV50..IND,TH;ASV5#..E..(TH,VN)201502-201903

BLACK,TRIM2#,4#

sub62332-06160

main62332-06170-A0iACV51,ASV50..(G,N)..MA201205-201503

SHELL,TRIM0#

main62332-06170-C0iASV5#..MA201205-201809

BLACK,TRIM2#

main62332-06170-C0iAVV50..MA201503-201809

BLACK,TRIM2#,4#

62401ACLIP (FOR CENTER PILLAR GARNISH PANEL, UPPER)

main90467-10167iACV51,ASV50;AVV50..IND,TAIW,TH201112-202007

62410AGARNISH ASSY, CENTER PILLAR, RH

main62410-06180-A0iACV51..N..MA;ACV51,AVV50..IND,TH,VN;ASV50..IDN,IND,MA,PHL,TH,VN201203-201504

SHELL,TRIM0#

sub62410-06180

main62410-06180-A1iASV5#,AVV50..IDN,IND,PHL,TH,VN201502-201903

FLAXEN,TRIM0#

sub62410-06180

main62410-06180-B0iAVV50..RHD;ASV5#..E..(TH,VN)201205-201903

GRAY,TRIM2#

sub62410-06180

main62410-06180-B0iASV50..G;ASV51..MA,VN;ASV50..E..PHL201502-201903

GRAY,TRIM2#,4#

sub62410-06180

main62410-06190-A0iACV51,ASV50,AVV50..TAIW201112-201503

SHELL,TRIM0#

main62410-06190-A1iASV51,AVV50..TAIW201503-202007

FLAXEN,TRIM0#

main62410-06190-B0iACV51,ASV50,AVV50..TAIW201112-202007

GRAY,TRIM2#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-06140-A0iACV51,ASV50,AVV50..IDN,IND,PHL,TH,VN201203-201504

SHELL,TRIM0#

sub62413-06140

main62413-06140-A1iASV5#,AVV50..IDN,IND,PHL,TH,VN201502-201903

FLAXEN,TRIM0#

sub62413-06140

main62413-06140-C0iASV50..E..PHL;ASV5#..(G,N)..(IDN,IND,PHL,VN)201207-201903

BLACK,TRIM2#

sub62413-06140

main62413-06140-C0iAVV50..IND,TH;ASV5#..E..(TH,VN)201502-201903

BLACK,TRIM2#,4#

sub62413-06140

main62413-06150-A0iACV51,ASV50,AVV50..TAIW201112-201503

SHELL,TRIM0#

main62413-06150-A1iASV51,AVV50..TAIW201503-202007

FLAXEN,TRIM0#

main62413-06150-C0iASV51,AVV50..TAIW201112-202007

BLACK,TRIM2#

main62413-06160-A0iACV51,ASV50..(G,N)..MA201205-201503

SHELL,TRIM0#

main62413-06160-C0iASV5#..MA201503-201809

BLACK,TRIM2#,4#

main62413-06160-C0iASV5#..MA201205-201809

BLACK,TRIM2#

62413CCLIP (FOR CENTER LOWER GARNISH)

main90467-10161iACV51,ASV50,AVV50..TAIW201112-202007

main90467-T0021iAVV50..IND,TH;ACV51,ASV50..IDN,IND,MA,PHL,TH,VN201203-201903

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-06140-A0iACV51,ASV50,AVV50..IDN,IND,PHL,TH,VN201203-201504

SHELL,TRIM0#

sub62414-06140

main62414-06140-A1iASV5#,AVV50..IDN,IND,PHL,TH,VN201502-201903

FLAXEN,TRIM0#

sub62414-06140

main62414-06140-C0iAVV50..IND,TH;ASV5#..E..(TH,VN)201207-201903

BLACK,TRIM2#

sub62414-06140

main62414-06140-C0iASV50..E..PHL;ASV5#..(G,N)..(IDN,IND,PHL,VN)201502-201903

BLACK,TRIM2#,4#

sub62414-06140

main62414-06150-A0iACV51,ASV50,AVV50..TAIW201112-201503

SHELL,TRIM0#

main62414-06150-A1iASV51,AVV50..TAIW201503-202007

FLAXEN,TRIM0#

main62414-06150-C0iASV51,AVV50..TAIW201112-202007

BLACK,TRIM2#

main62414-06160-A0iACV51,ASV50..(G,N)..MA201205-201503

SHELL,TRIM0#

main62414-06160-C0iASV5#..MA201503-201809

BLACK,TRIM2#,4#

main62414-06160-C0iAVV50..MA201205-201809

BLACK,TRIM2#

62420AGARNISH ASSY, CENTER PILLER, LH

main62420-06180-A0iACV51..N..MA;ACV51,AVV50..IND,TH,VN;ASV50..IDN,IND,MA,PHL,TH,VN201203-201504

SHELL,TRIM0#

sub62420-06180

main62420-06180-A1iASV5#,AVV50..IDN,IND,PHL,TH,VN201502-201903

FLAXEN,TRIM0#

sub62420-06180

main62420-06180-B0iASV50..G;ASV51..MA,VN;ASV50..E..PHL201502-201903

GRAY,TRIM2#,4#

sub62420-06180

main62420-06180-B0iACV51,ASV50..(E,G)..(MA,VN)201205-201903

GRAY,TRIM2#

sub62420-06180

main62420-06190-A0iACV51,ASV50,AVV50..TAIW201112-201503

SHELL,TRIM0#

main62420-06190-A1iASV51,AVV50..TAIW201503-202007

FLAXEN,TRIM0#

main62420-06190-B0iACV51,ASV50,AVV50..TAIW201112-202007

GRAY,TRIM2#

62461HCLIP (FOR ROOF SIDE INNER GARNISH)

main90467-10161iACV51,ASV50,AVV50..TAIW201112-202007

main90467-T0021iAVV50..IND,TH;ACV51,ASV50..IDN,IND,MA,PHL,TH,VN201203-201903

62470AGARNISH ASSY, ROOF SIDE, INNER RH

main62470-06270-A0iAVV50..IND,TH;ACV51,ASV50..IDN,IND,MA,PHL,TH,VN201203-201504

SHELL,TRIM0#

sub62470-06270

main62470-06270-A1iASV5#..MA201502-201611

FLAXEN,TRIM0#

sub62470-06270

main62470-06270-B0iASV5#..VN201205-201611

GRAY,TRIM2#

sub62470-06270

main62470-06280-A0iACV51,ASV50,AVV50..TAIW201112-201503

SHELL,TRIM0#

main62470-06280-A1iASV51,AVV50..(G,V)..TAIW201503-202007

FLAXEN,TRIM0#

main62470-06280-B0iASV51..N..TAIW201112-202007

GRAY,TRIM2#

main62470-06290-A1iASV51,AVV50..(G,V)..TAIW201705-201809

FLAXEN,TRIM0#

main62470-06290-B0iASV51,AVV50..(G,V)..TAIW201705-201809

GRAY,TRIM2#

main62470-06320-A0iASV50,AVV50..(G,V)..(IND,TH)201502-201903

FLAXEN,TRIM0#

main62470-06320-B0iASV5#..TH201502-201903

GRAY,TRIM2#,4#

main62470-06320-B0iASV50..E..PHL;ASV50..G..(IDN,PHL)201504-201811

GRAY,TRIM2#

62472GCLIP (FOR ROOF SIDE GARNISH)

main90467-10188iASV51,AVV50;ASV50..IDN,IND,MA,PHL,TH,VN201112-202007

62480AGARNISH ASSY, ROOF SIDE, INNER LH

main62480-06270-A0iAVV50..IND,TH;ACV51,ASV50..IDN,IND,MA,PHL,TH,VN201203-201504

SHELL,TRIM0#

sub62480-06270

main62480-06270-A1iASV5#..IDN,PHL,TH201502-201611

FLAXEN,TRIM0#

sub62480-06270

main62480-06270-B0iASV5#..MA201205-201611

GRAY,TRIM2#

sub62480-06270

main62480-06280-A0iACV51,ASV50,AVV50..TAIW201112-201503

SHELL,TRIM0#

main62480-06280-A1iASV51,AVV50..(G,V)..TAIW201503-202007

FLAXEN,TRIM0#

main62480-06280-B0iACV51,ASV50,AVV50..TAIW201112-202007

GRAY,TRIM2#

main62480-06290-A1iASV51,AVV50..(G,V)..TAIW201705-201809

FLAXEN,TRIM0#

main62480-06290-B0iASV51,AVV50..(G,V)..TAIW201705-201809

GRAY,TRIM2#

main62480-06320-A0iASV50,AVV50..(G,V)..(IND,TH)201502-201903

FLAXEN,TRIM0#

main62480-06320-B0iASV50..IND201504-201811

GRAY,TRIM2#

main62480-06320-B0iAVV50..RHD201502-201903

GRAY,TRIM2#,4#

62566BCLAMP, ROCKER PANEL INNER PROTECTER, NO.1

main62566-06010iACV51,ASV50,AVV50..TAIW201112-202007

main62566-32010iAVV50..IND,TH;ACV51,ASV50..IDN,IND,MA,PHL,TH,VN201203-201903

62567ECLAMP, ROCKER PANEL INNER PROTECTOR, NO.2

main62567-06020iASV51,AVV50..TAIW201112-202007

main62567-33040iASV5#,AVV50..IDN,IND,MA,PHL,TH,VN201203-201903

67911BPLATE, FRONT DOOR SCUFF, OUTSIDE, RH

main67911-06080iASV51..N..(MA,VN);ASV50..E..(IDN,VN)201203-201903

sub67911-06090

main67911-06090iASV50..G..IDN;ASV5#,AVV50..(E,G,V)..(IND,MA,PHL,TH)201203-201811

main67911-06100iASV51..TAIW201112-202007

main67911-06110iAVV50..TAIW201202-201809

67912APLATE, FRONT DOOR SCUFF, OUTSIDE LH

main67912-06080iASV51..N..(MA,VN);ASV50..E..(IDN,VN)201203-201903

sub67916-06070

main67912-06090iASV50..G..IDN;ASV5#,AVV50..(E,G,V)..(IND,MA,PHL,TH)201203-201811

main67912-06100iACV51,ASV50..TAIW201112-202007

main67912-06110iAVV50..TAIW201202-201809

67913PLATE, FRONT DOOR SCUFF, RH

main67913-06160-A0iACV51..N..MA201205-201503

SHELL,TRIM0#

main67913-06160-C0iAVV50..MA201205-201809

BLACK,TRIM2#

main67913-06160-C0iAVV50..MA201503-201809

BLACK,TRIM2#,4#

main67913-06220-A0iACV51,ASV50,AVV50..IDN,IND,PHL,TH,VN201203-201504

SHELL,TRIM0#

sub67913-06220

main67913-06220-A1iASV5#,AVV50..IDN,IND,PHL,TH,VN201502-201903

FLAXEN,TRIM0#

sub67913-06220

main67913-06220-C0iASV50..E..PHL;ASV5#..(G,N)..(IDN,IND,PHL,VN)201207-201903

BLACK,TRIM2#

sub67913-06220

main67913-06220-C0iAVV50..IND,TH;ASV5#..E..(TH,VN)201502-201903

BLACK,TRIM2#,4#

sub67913-06220

main67913-06230-A0iACV51,ASV50,AVV50..TAIW201112-201503

SHELL,TRIM0#

main67913-06230-A1iASV51,AVV50..TAIW201503-202007

FLAXEN,TRIM0#

main67913-06230-C0iASV51,AVV50..TAIW201112-202007

BLACK,TRIM2#

67913ACLIP(FOR SCUFF PLATE)

main90467-10162iASV51,AVV50;ASV50..IDN,IND,MA,PHL,TH,VN201112-202007

67914PLATE, FRONT DOOR SCUFF, LH

main67914-06160-A0iASV50..MA201205-201503

SHELL,TRIM0#

main67914-06160-C0iAVV50..MA201205-201809

BLACK,TRIM2#

main67914-06160-C0iAVV50..MA201503-201809

BLACK,TRIM2#,4#

main67914-06220-A0iACV51,ASV50,AVV50..IDN,IND,PHL,TH,VN201203-201504

SHELL,TRIM0#

sub67914-06220

main67914-06220-A1iASV5#,AVV50..IDN,IND,PHL,TH,VN201502-201903

FLAXEN,TRIM0#

sub67914-06220

main67914-06220-C0iASV50..VN201207-201903

BLACK,TRIM2#

sub67914-06220

main67914-06220-C0iASV50..E..PHL;ASV5#..(G,N)..(IDN,IND,PHL,VN)201502-201903

BLACK,TRIM2#,4#

sub67914-06220

main67914-06230-A0iACV51,ASV50,AVV50..TAIW201112-201503

SHELL,TRIM0#

main67914-06230-A1iASV51,AVV50..TAIW201503-202007

FLAXEN,TRIM0#

main67914-06230-C0iASV51,AVV50..TAIW201112-202007

BLACK,TRIM2#

67915PLATE, REAR DOOR SCUFF, OUTSIDE RH

main67915-06060iACV51..N..(MA,VN);ASV50..E..(IDN,VN)201203-201903

sub67915-06070

main67915-06070iASV50..G..IDN;ASV5#,AVV50..(E,G,V)..(IND,MA,PHL,TH)201203-201811

main67915-06080iACV51,ASV50..TAIW201112-202007

main67915-06090iAVV50..TAIW201202-201809

67916PLATE, REAR DOOR SCUFF, OUTSIDE LH

main67916-06060iACV51..N..(MA,VN);ASV50..E..(IDN,VN)201203-201903

main67916-06070iAVV50..IND,TH;ASV50..G..IDN;ACV51,ASV50..(E,G)..(IND,MA,PHL,TH)201203-201811

main67916-06080iACV51,ASV50..TAIW201112-202007

main67916-06090iAVV50..TAIW201202-201809

67917APLATE, REAR DOOR SCUFF, RH

main67917-06120-A0iASV50..MA201205-201503

SHELL,TRIM0#

main67917-06120-C0iASV5#..MA201205-201809

BLACK,TRIM2#

main67917-06120-C0iAVV50..MA201503-201809

BLACK,TRIM2#,4#

main67917-06170-A0iACV51,ASV50,AVV50..IDN,IND,PHL,TH,VN201203-201504

SHELL,TRIM0#

sub67917-06170

main67917-06170-A1iASV5#,AVV50..IDN,IND,PHL,TH,VN201502-201903

FLAXEN,TRIM0#

sub67917-06170

main67917-06170-C0iASV50..E..PHL;ASV5#..(G,N)..(IDN,IND,PHL,VN)201207-201903

BLACK,TRIM2#

sub67917-06170

main67917-06170-C0iAVV50..IND,TH;ASV5#..E..(TH,VN)201502-201903

BLACK,TRIM2#,4#

sub67917-06170

main67917-06180-A0iACV51,ASV50,AVV50..TAIW201112-201503

SHELL,TRIM0#

main67917-06180-A1iASV51,AVV50..TAIW201503-202007

FLAXEN,TRIM0#

main67917-06180-C0iASV51,AVV50..TAIW201112-202007

BLACK,TRIM2#

67918APLATE, REAR DOOR SCUFF, LH

main67918-06120-A0iASV50..MA201205-201503

SHELL,TRIM0#

main67918-06120-C0iASV5#..MA201503-201809

BLACK,TRIM2#,4#

main67918-06120-C0iACV51,ASV50..(E,G)..MA201205-201809

BLACK,TRIM2#

main67918-06170-A0iACV51,ASV50,AVV50..IDN,IND,PHL,TH,VN201203-201504

SHELL,TRIM0#

sub67918-06170

main67918-06170-A1iASV5#,AVV50..IDN,IND,PHL,TH,VN201502-201903

FLAXEN,TRIM0#

sub67918-06170

main67918-06170-C0iASV50..VN201207-201903

BLACK,TRIM2#

sub67918-06170

main67918-06170-C0iAVV50..IND,TH;ASV5#..E..(TH,VN)201502-201903

BLACK,TRIM2#,4#

sub67918-06170

main67918-06180-A0iACV51,ASV50,AVV50..TAIW201112-201503

SHELL,TRIM0#

main67918-06180-A1iASV51,AVV50..TAIW201503-202007

FLAXEN,TRIM0#

main67918-06180-C0iACV51,ASV50,AVV50..TAIW201112-202007

BLACK,TRIM2#

67918CCLIP(FOR REAR SCUFF PLATE)

main90467-10162iACV51,ASV50;AVV50..IND,TAIW,TH201112-202007

7104

9018905096

main90189-05096

9356855018

main93568-55018

37 parts on this diagram · 3 diagrams in section
