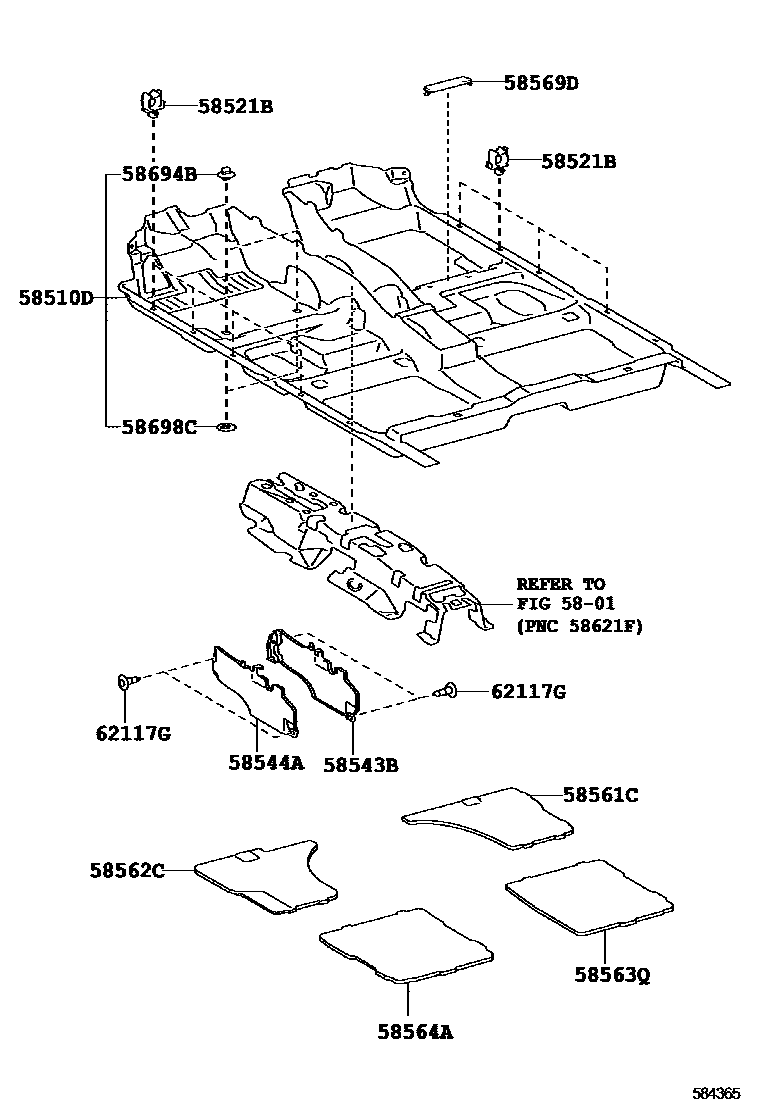

MAT & CARPET

5801

58510DCARPET ASSY, FLOOR, FRONT

main58510-06390-A0iACV51..N..MA201305-201503

SHELL,TRIM0#,*301

main58510-06390-C0iACV51,ASV50..(E,G)..MA201305-201503

BLACK,TRIM2#,*301

main58510-06530-A0iACV51,ASV50..PHL,VN201203-201504

SHELL,TRIM0#

sub58510-06610

main58510-06530-C0iASV50..VN;ASV50..G..PHL201207-201504

BLACK,TRIM2#

sub58510-06610

main58510-06540-A0iACV51..N..MA201305-201503

SHELL,TRIM0#,*299

sub58510-06620

main58510-06540-A0iACV51,ASV50,AVV50..IDN,IND,TH201203-201504

SHELL,TRIM0#

sub58510-06620

main58510-06540-C0iACV51,ASV50..(E,G)..MA201305-201503

BLACK,TRIM2#,*299

sub58510-06620

main58510-06540-C0iASV50..G..IDN;ACV51,ASV50..TH201205-201502

BLACK,TRIM2#

sub58510-06620

main58510-06550-A0iACV51,ASV50,AVV50..TAIW201112-201503

SHELL,TRIM0#

main58510-06550-C0iACV51,ASV50,AVV50..TAIW201112-201503

BLACK,TRIM2#

main58510-06600-C0iASV5#..MA201503-201809

BLACK,TRIM2#,4#,*301

main58510-06600-C0iASV5#..MA201503-201809

BLACK,TRIM2#,*301

main58510-06610-A0iASV5#..PHL,VN201502-201903

FLAXEN,TRIM00

main58510-06610-C0iASV50..VN201504-201903

BLACK,TRIM00,2#,4#

main58510-06610-C0iASV50..G..PHL201502-201809

BLACK,TRIM00

main58510-06610-C0iASV51..VN;ASV50..E..PHL201502-201903

BLACK,TRIM00,2#

main58510-06620-A0iASV5#,AVV50..IDN,IND,TH201502-201811

FLAXEN,TRIM00

main58510-06620-C0iAVV50..IND201504-201811

BLACK,TRIM00,4#

main58510-06620-C0iASV5#,AVV50..TH201502-201809

BLACK,TRIM00,2#,4#

main58510-06620-C0iASV50..IDN,IND201502-201811

BLACK,TRIM00

main58510-06630-A0iASV51,AVV50..TAIW201503-202007

FLAXEN,TRIM00

main58510-06630-C0iASV51,AVV50..TAIW201503-202007

BLACK,TRIM00,2#

58521BHOOK, FLOOR CARPET

main58521-06100iAVV50..IND,TH;ACV51,ASV50..IDN,IND,MA,PHL,TH,VN201203-201903

main58521-06110iACV51,ASV50,AVV50..TAIW201112-202007

58543BBRACKET, FLOOR CARPET, RH

main58543-06110iASV5#,AVV50..IDN,IND,MA,PHL,TH,VN201203-201903

main58543-06120iACV51,ASV50,AVV50..TAIW201112-202007

58544ABRACKET, FLOOR CARPET, LH

main58544-06110iASV5#,AVV50..IDN,IND,MA,PHL,TH,VN201203-201903

main58544-06120iACV51,ASV50,AVV50..TAIW201112-202007

58561CSILENCER, FRONT FLOOR, NO.1

main58561-06120iAVV50..IND,TH;ACV51,ASV50..IDN,IND,MA,PHL,TH,VN201203-201903

main58561-06130iASV51,AVV50..TAIW201112-202007

58562CSILENCER, FRONT FLOOR, NO.2

main58562-06120iAVV50..IND,TH;ACV51,ASV50..IDN,IND,MA,PHL,TH,VN201203-201903

main58562-06130iACV51,ASV50,AVV50..TAIW201112-202007

58563QSILENCER, FRONT FLOOR, NO.3

main58563-06120iASV5#,AVV50..IDN,IND,MA,PHL,TH,VN201203-201903

main58563-06130iASV51,AVV50..TAIW201112-202007

58564ASILENCER, FRONT FLOOR, NO.4

main58564-06120iASV5#,AVV50..IDN,IND,MA,PHL,TH,VN201203-201903

main58564-06130iASV51,AVV50..TAIW201112-202007

58569DCOVER, FRONT FLOOR CAUTION PLATE

main58569-44010-A2iACV51,ASV50..(E,G)..MA201112-201504

SHELL,TRIM0#

sub58569-44010

main58569-44010-A3iASV50..IDN,IND,PHL,TH,VN;ASV51,AVV50..IND,TAIW,TH,VN201502-202007

FLAXEN,TRIM00

sub58569-44010

main58569-44010-C0iAVV50..MA201503-201809

BLACK,TRIM2#,4#

sub58569-44010

main58569-44010-C0iACV51..N..MA201203-201504

BLACK

sub58569-44010

main58569-44010-C0iACV51..E;ACV51,AVV50..TAIW;ASV50..G..(IDN,PHL);ASV50..MA,TAIW,TH,VN201112-201809

BLACK,TRIM2#

sub58569-44010

main58569-44010-C0iASV50..E..IDN201502-201809

BLACK,TRIM00

sub58569-44010

main58569-44010-C0iAVV50..IND,TH;ASV5#..E..(TH,VN)201502-201903

BLACK,TRIM00,2#,4#

sub58569-44010

main58569-44010-C0iASV50..E..PHL;ASV51,AVV50..LHD;ASV50..G..(IDN,IND,PHL)201502-202007

BLACK,TRIM00,2#

sub58569-44010

58694BPLATE, MAT SET, UPPER

main58694-0K010iASV5#,AVV50..IDN,IND,PHL,TH,VN201708-201903

main58694-76010iACV51,ASV50;AVV50..IND,TAIW,TH201112-202007

58698CPLATE, MAT SET, LOWER

main58698-0K070iASV5#,AVV50..IDN,IND,PHL,TH,VN201708-201903

main58698-76010iASV51..MA,TAIW;ASV50,AVV50..(G,V)..(MA,TAIW)201112-202007

62117GCLIP, NO.2(FOR COWL SIDE TRIM)

main90467-07076-C0iASV50,AVV50..IND201112-201703

BLACK

sub90467-07041

sub90467-07076

sub90467-A0016

main90467-07076-C0iASV5#..PHL,VN201502-201703

BLACK,(J)

sub90467-07041

sub90467-07076

sub90467-A0016

main90467-07076-C7iASV5#..PHL,VN201703-201903

BLACK,(J)

sub90467-07041

sub90467-07076

sub90467-A0016

main90467-07076-C7iASV5#,AVV50..MA,TAIW201703-202007

BLACK

sub90467-07041

sub90467-07076

sub90467-A0016

main90467-T0027-C0iASV5#,AVV50..IDN,IND,PHL,TH,VN201502-201903

BLACK,(L)

13 parts on this diagram · 1 diagram in section
