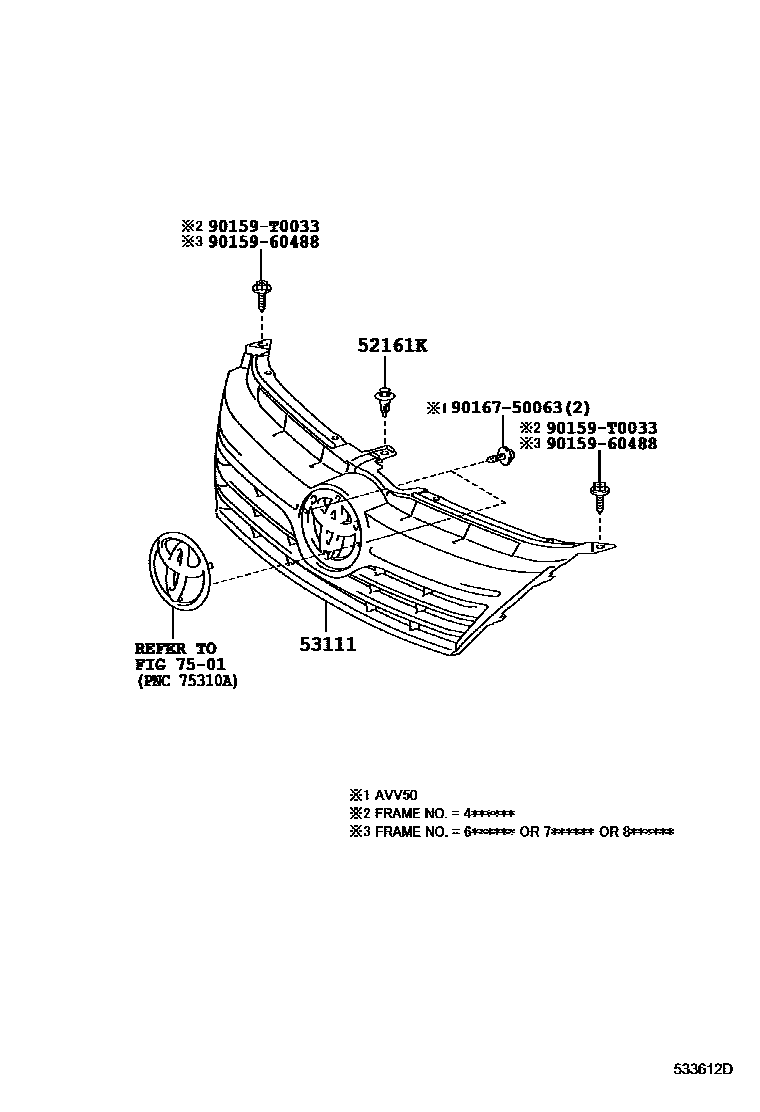

RADIATOR GRILLE

0001 1 0004 1 0007 1

52161KPIECE, FRONT BUMPER

main52161-0K040iAVV50..IND,TH;ACV51,ASV50..IDN,IND,MA,PHL,TH,VN201211-201504

(L)

main52161-16010iAVV50..TH201308-201504

(J)

53111GRILLE, RADIATOR

main53111-06560iACV51,ASV50..TAIW201112-201503

PLATED

main53111-06570iACV51,ASV50..IDN,IND,MA,PHL,TH,VN201203-201504

PLATED

main53111-06580iAVV50..TAIW201202-201503

PLATED

main53111-06590iAVV50..IND,TH201203-201504

PLATED

7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 75-01

9015960488

main90159-60488

90159T0033

main90159-T0033

9016750063

main90167-50063

6 parts on this diagram · 3 diagrams in section
