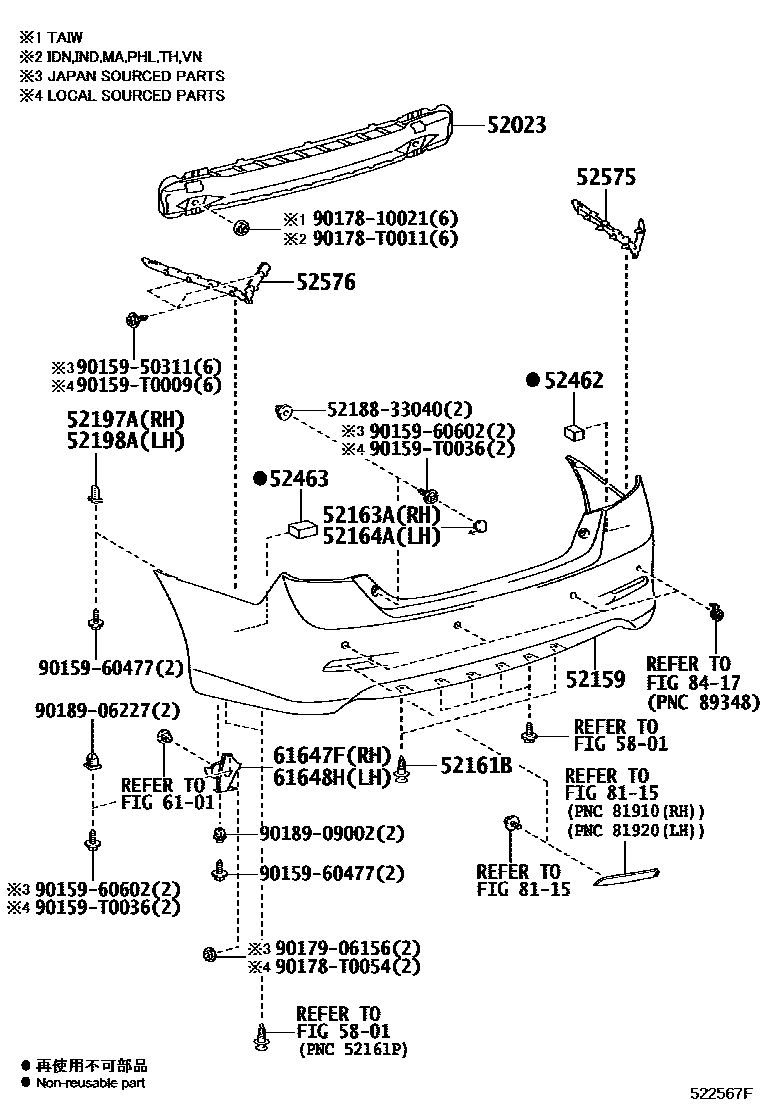

REAR BUMPER & BUMPER STAY

0001 1 0004 1 0007 1 0008 1

52023REINFORCEMENT SUB-ASSY, REAR BUMPER

main52023-06070iACV51,ASV50,AVV50..TAIW201112-201503

main52023-06081iAVV50..IND,TH;ACV51,ASV50..IDN,IND,MA,PHL,TH201203-201504

main52023-06121iACV51,ASV50..VN201207-201504

main52023-06210iASV51,AVV50..TAIW201503-202007

52159COVER, REAR BUMPER

main52159-06974iACV51..TH;ASV50..E..IDN201203-201502

PAINT REQ.

main52159-06977iAVV50..RHD..V201203-201504

PAINT REQ.

main52159-06981iACV51,ASV50,AVV50..TAIW201112-201503

PAINT REQ.

main52159-06983iACV51,ASV50..MA201205-201503

PAINT REQ.

main52159-06984iASV50..G..IDN;ASV50,AVV50..(E,G)..(IND,TH,VN)201203-201504

PAINT REQ.

main52159-06986iASV50..PHL201203-201302

PAINT REQ.

main52159-06994iASV51,AVV50..(G,N)..TAIW201503-201604

PAINT REQ.

main52159-06995iAVV50..V..TAIW201503-201604

PAINT REQ.

main52159-0X902iASV5#,AVV50..IDN,IND,PHL,TH,VN201502-201903

main52159-0X903iASV5#,AVV50..MA201503-201809

PAINT REQ.

main52159-0X911iASV51,AVV50..(G,N)..TAIW201604-202007

main52159-0X912iAVV50..V..TAIW201604-201809

PAINT REQ.

52161BPIECE, REAR BUMPER

main52161-0K040×2iACV51..TH;ASV50..E..IDN201211-201502

main52161-0K060×2iASV51,AVV50..TAIW201503-202007

main52161-16010×2iAVV50..TAIW;ASV50..MA,TAIW;ACV51..MA,TAIW,VN201112-201504

52163APLATE, REAR BUMPER, RH

main52163-06914iACV51,ASV50,AVV50..TAIW201112-201503

main52163-06915iAVV50..G..TH;ACV51,ASV50..IDN,IND,MA,PHL,TH,VN201203-201504

52164APLATE, REAR BUMPER, LH

main52164-06914iACV51,ASV50,AVV50..TAIW201112-201503

main52164-06915iAVV50..IND201203-201310

52197ABRACKET, REAR BUMPER SEAL, RH

main52197-22020iACV51,ASV50;AVV50..IND,TAIW,TH201112-201504

52198ABRACKET, REAR BUMPER SEAL, LH

main52197-22020iACV51,ASV50;AVV50..IND,TAIW,TH201112-201504

52462PAD, REAR BUMPER, RH

main52462-06120iACV51,ASV50,AVV50..TAIW201112-201503

main52462-06130iAVV50..IND,TH;ACV51,ASV50..IDN,IND,MA,PHL,TH,VN201203-201504

main52462-06160iASV5#,AVV50..IDN,IND,MA,PHL,TH,VN201502-201903

main52462-06170iASV51,AVV50..TAIW201503-202007

52463PAD, REAR BUMPER, LH

main52463-06040iACV51,ASV50,AVV50..TAIW201112-201503

main52463-06050iAVV50..IND,TH;ACV51,ASV50..IDN,IND,MA,PHL,TH,VN201203-201504

main52463-06090iASV5#,AVV50..IDN,IND,MA,PHL,TH,VN201502-201903

main52463-06100iASV51,AVV50..TAIW201503-202007

52575RETAINER, REAR BUMPER SIDE, RH

main52575-06120iACV51,ASV50,AVV50..TAIW201112-201310

main52575-06121iACV51,ASV50,AVV50..TAIW201311-201503

main52575-06130iACV51,ASV50,AVV50..IDN,IND,MA,PHL,TH,VN201203-201310

main52575-06131iASV5#,AVV50..IDN,IND,MA,PHL,TH,VN201502-201903

52576RETAINER, REAR BUMPER SIDE, LH

main52576-06120iACV51,ASV50,AVV50..TAIW201112-201310

main52576-06121iACV51,ASV50,AVV50..TAIW201311-201503

main52576-06130iACV51,ASV50,AVV50..IDN,IND,MA,PHL,TH,VN201203-201310

main52576-06131iASV5#,AVV50..IDN,IND,MA,PHL,TH,VN201502-201903

5801FLOOR PAN & LOWER BACK PANEL

→ Go to FIG 58-01

6101SIDE MEMBER

→ Go to FIG 61-01

61647FREINFORCEMENT, WHEEL HOUSE, RH

main61647-06120iASV5#,AVV50..IDN,IND,MA,PHL,TH,VN201502-201903

main61647-06130iACV51,ASV50,AVV50..TAIW201112-201503

main61647-06140iAVV50..IND,TH;ACV51,ASV50..IDN,IND,MA,PHL,TH,VN201203-201504

main61647-06150iASV51,AVV50..TAIW201503-202007

61648HREINFORCEMENT, WHEEL HOUSE, LH

main61648-06120iASV5#,AVV50..IDN,IND,MA,PHL,TH,VN201502-201903

main61648-06130iACV51,ASV50,AVV50..TAIW201112-201503

main61648-06140iAVV50..IND,TH;ACV51,ASV50..IDN,IND,MA,PHL,TH,VN201203-201504

main61648-06150iASV51,AVV50..TAIW201503-202007

8115REFLEX REFLECTOR

→ Go to FIG 81-15

8417CLEARANCE & BACK SONAR

→ Go to FIG 84-17

5218833040CUSHION, REAR BUMPER ARM, LH

main52188-33040

9015950311

main90159-50311

9015960477

main90159-60477

9015960602

main90159-60602

90159T0009

main90159-T0009

90159T0036

main90159-T0036

9017810021

main90178-10021

90178T0011

main90178-T0011

90178T0054

main90178-T0054

9017906156

main90179-06156

9018906227

main90189-06227

9018909002

main90189-09002

29 parts on this diagram · 4 diagrams in section
