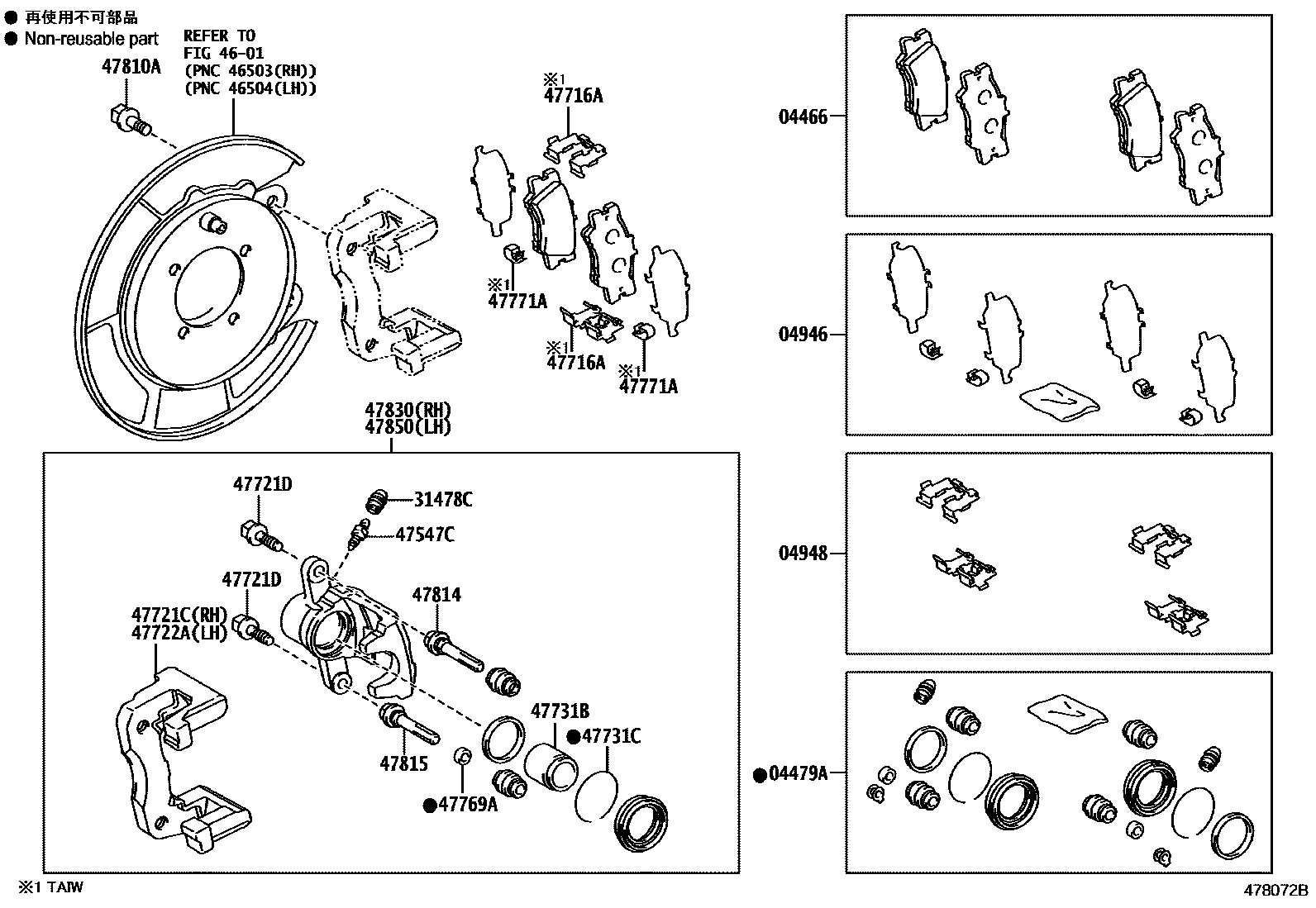

REAR DISC BRAKE CALIPER & DUST COVER

0001 1 0003 1 0004 1

04466PAD KIT, DISC BRAKE, REAR

main04466-06210iAVV50..IND,TH;ACV51,ASV50..IDN,IND,MA,PHL,TH,VN201203-201504

MARK NBK D6247

main04466-06220iASV5#,AVV50..IDN,IND,MA,PHL,TH,VN201502-201903

MARK NBK D6247

main04466-33200iACV51,ASV50,AVV50..TAIW201112-202007

MARK NBK D6247

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-06330iAVV50..IND,TH;ACV51,ASV50..IDN,IND,MA,PHL,TH,VN201203-201504

main04479-06350iASV5#,AVV50..IDN,IND,MA,PHL,TH,VN201502-201903

main04479-33340iASV51,AVV50..TAIW201112-202007

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-06110iACV51,ASV50,AVV50..IDN,MA,PHL,TH201203-201207

sub04946-06120

main04946-06120iAVV50..IND,TH;ACV51,ASV50..IDN,IND,MA,PHL,TH,VN201207-201504

main04946-06140iASV5#,AVV50..IDN,IND,MA,PHL,TH,VN201502-201903

main04946-33040iACV51,ASV50201112-201201

sub04946-33060

main04946-33060iACV51,ASV50,AVV50..TAIW201201-201206

main04946-33070iACV51,ASV50,AVV50..TAIW201207-202007

04948FITTING KIT, DISC BRAKE, REAR

main04948-06041iAVV50..IND,TH;ACV51,ASV50..IDN,IND,MA,PHL,TH,VN201207-201903

main04948-33040iACV51,ASV50,AVV50..IDN,MA,PHL,TH201112-202007

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-06010iASV5#,AVV50..IDN,IND,MA,PHL,TH,VN201203-201903

main31478-50020iACV51,ASV50,AVV50..TAIW201112-202007

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-20010iACV51,ASV50;AVV50..IND,TAIW,TH201112-202007

47716APLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE)

main47816-33211iACV51,ASV50,AVV50..TAIW201112-202007

47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-06140iAVV50..IND,TH;ACV51,ASV50..IDN,IND,MA,PHL,TH,VN201203-201903

main47821-33241iACV51,ASV50,AVV50..TAIW201112-202007

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90016-AA603iAVV50..IND,TH;ACV51,ASV50..IDN,IND,MA,PHL,TH,VN201203-201903

*8-1.00PX23-15

main90105-08164iASV51,AVV50..TAIW201112-202007

*8-1.00PX23-15

47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH

main47822-06130iAVV50..IND,TH;ACV51,ASV50..IDN,IND,MA,PHL,TH,VN201203-201903

main47822-33241iACV51,ASV50,AVV50..TAIW201112-202007

47731BPISTON, REAR DISC BRAKE

main47831-06090iAVV50..IND,TH;ACV51,ASV50..IDN,IND,MA,PHL,TH,VN201203-201903

main47831-33210iASV51,AVV50..TAIW201112-202007

47731CRING, SET(FOR REAR DISC BRAKE PISTON)

main90016-AU501iAVV50..IND,TH;ACV51,ASV50..IDN,IND,MA,PHL,TH,VN201203-201903

main90520-52006iASV51,AVV50..TAIW201112-202007

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47879-06140iAVV50..IND,TH;ACV51,ASV50..IDN,IND,MA,PHL,TH,VN201203-201903

main47879-33240iASV51,AVV50..TAIW201112-202007

47771APLATE, PAD WEAR INDICATOR(FOR REAR DISC BRAKE)

main47771-32030iACV51,ASV50201112-201201

main47771-72010iACV51,ASV50,AVV50..TAIW201201-202007

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90119-10379iACV51,ASV50;AVV50..IND,TAIW,TH201112-202007

47814PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47814-33240iACV51,ASV50;AVV50..IND,TAIW,TH201112-202007

47815PIN, REAR CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47815-33240iASV51,AVV50;ASV50..IDN,IND,MA,PHL,TH,VN201112-202007

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-06140iASV5#,AVV50..IDN,IND,MA,PHL,TH,VN201203-201903

main47830-33240iACV51,ASV50,AVV50..TAIW201112-202007

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-06130iASV5#,AVV50..IDN,IND,MA,PHL,TH,VN201203-201903

main47850-33240iASV51,AVV50..TAIW201112-202007

20 parts on this diagram · 3 diagrams in section
