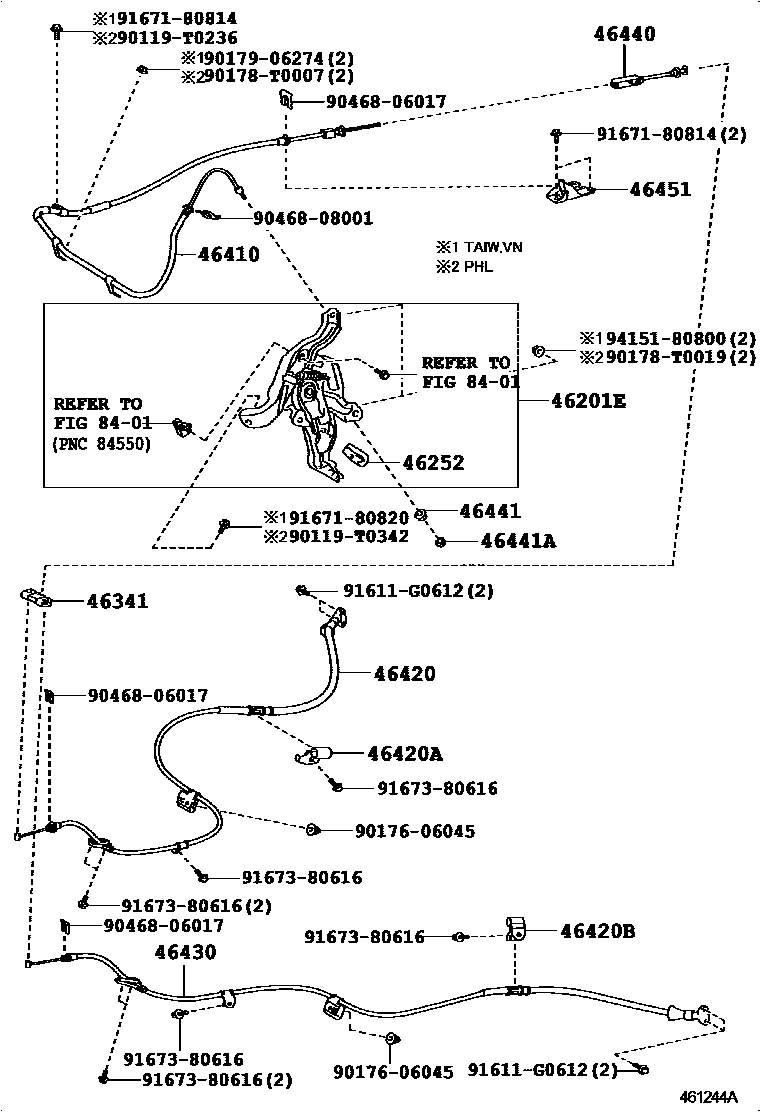

PARKING BRAKE & CABLE

0001 1 0002 1 0003 1 0004 1

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-06210iACV51,ASV50,AVV50..TAIW201209-202007

main46201-33240iACV51,ASV50,AVV50..TAIW201112-201903

46252PAD, PARKING PEDAL

main46252-06040iASV51,AVV50..TAIW201209-202007

main46252-06050iAVV50..IND,TH;ACV51,ASV50..RHD201203-201811

main46252-33020iACV51,ASV50..PHL,VN201112-201903

46341EQUALIZER, PARKING BRAKE

main46341-06040iASV51,AVV50..TAIW201112-202007

main46341-06070iASV5#,AVV50..IDN,IND,MA,PHL,TH,VN201203-201903

sub46341-33030

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-06190iACV51,ASV50,AVV50..TAIW201112-202007

main46410-06200iAVV50..IND,TH;ACV51,ASV50..RHD201203-201811

main46410-33260iACV51,ASV50..PHL,VN201203-201903

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-06110iACV51,ASV50..TAIW201112-201207

sub46420-06111

main46420-06111iACV51,ASV50..TAIW201208-202007

main46420-06220iAVV50..TAIW201202-201207

sub46420-06221

main46420-06221iAVV50..TAIW201208-201809

main46420-33170iACV51,ASV50..IDN,PHL,TH201203-201205

sub46420-33171

main46420-33171iACV51,ASV50..IDN,IND,MA,PHL,TH,VN201205-201903

main46420-33180iAVV50..TH201203-201204

sub46420-33181

main46420-33181iAVV50..RHD201205-201811

46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)

main90949-01C61iASV51,AVV50;ASV50..IDN,IND,MA,PHL,TH,VN201112-202007

46420BCLAMP, NO.2(FOR PARKING BRAKE CABLE)

main90949-01C62iACV51,ASV50;AVV50..IND,TAIW,TH201112-202007

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-06110iACV51,ASV50..TAIW201112-201207

sub46430-06111

main46430-06111iASV51..TAIW201208-202007

main46430-06220iAVV50..TAIW201202-201207

sub46430-06221

main46430-06221iAVV50..TAIW201208-201809

main46430-33170iACV51,ASV50..IDN,PHL,TH201203-201205

sub46430-33171

main46430-33171iACV51,ASV50..IDN,IND,MA,PHL,TH,VN201205-201903

main46430-33180iAVV50..TH201203-201204

main46430-33181iAVV50..IND,TH201205-201811

46440CABLE ASSY, PARKING BRAKE, NO.4

main46440-06100iAVV50..IND,TH;ACV51,ASV50..IDN,IND,MA,PHL,TH,VN201203-201903

main46440-06130iACV51,ASV50,AVV50..TAIW201112-202007

46441NUT, WIRE ADJUSTING, NO.1

main90182-06008iACV51,ASV50;AVV50..IND,TAIW,TH201112-202007

46441ANUT, WIRE ADJUSTING, NO.2

main90179-06299iACV51,ASV50;AVV50..IND,TAIW,TH201112-202007

46451BRACKET, CABLE SUPPORT

main46451-33100iACV51,ASV50;AVV50..IND,TAIW,TH201112-202007

8401

90119T0236

main90119-T0236

90119T0342

main90119-T0342

9017606045

main90176-06045

90178T0007

main90178-T0007

90178T0019

main90178-T0019

9017906274

main90179-06274

9046806017

main90468-06017

9046808001

main90468-08001

91611G0612

main91611-G0612

9167180814

main91671-80814

9167180820

main91671-80820

9167380616

main91673-80616

9415180800

main94151-80800

26 parts on this diagram · 4 diagrams in section
