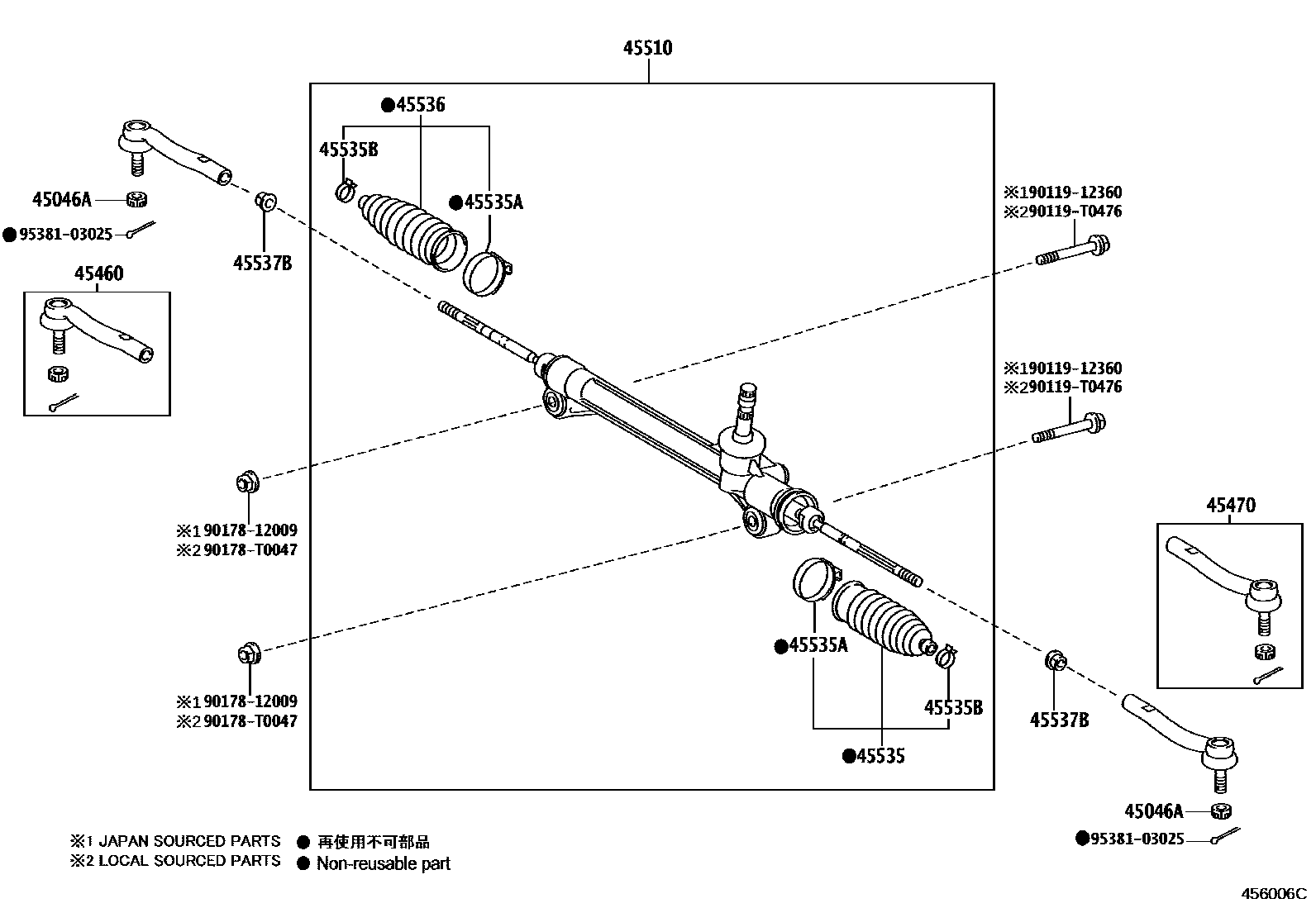

FRONT STEERING GEAR & LINK

0001 1 0002 1

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028×2iACV51,ASV50;AVV50..IND,TAIW,TH201112-201504

(J)

main90171-T0004×2iACV51,ASV50;AVV50..IND,TAIW,TH201112-201504

(L)

45460ROD ASSY, TIE, RH

main45460-09240iAVV50..G..TH;ACV51,ASV50..IDN,MA,PHL,TH,VN201203-201504

main45460-80005iAVV50..V;ACV51,ASV50,AVV50..(E,G,N)..(IND,TAIW)201112-201504

45470ROD ASSY, TIE, LH

main45470-09150iAVV50..G..TH;ACV51,ASV50..IDN,MA,PHL,TH,VN201203-201504

main45470-39345iAVV50..V;ACV51,ASV50,AVV50..(E,G,N)..(IND,TAIW)201112-201504

45510GEAR ASSY, STEERING

main45510-06041iACV51,ASV50..PHL,VN201203-201504

main45510-06051iACV51,ASV50,AVV50..(E,G)..(IDN,TH)201203-201502

main45510-06071iACV51,ASV50..MA201205-201503

main45510-33011iACV51,ASV50,AVV50..TAIW201112-201503

main45510-33031iASV50..IND;AVV50..RHD..V201203-201504

45535BOOT, STEERING RACK, NO.1

main45535-09250iAVV50..G..TH;ACV51,ASV50..IDN,MA,PHL,TH,VN201203-201504

main45535-39015iACV51,ASV50201112-201201

main45535-39035iAVV50..V;ACV51,ASV50,AVV50..(E,G,N)..(IND,TAIW)201202-201504

45535ACLAMP(FOR STEERING RACK BOOT)

main45538-06030×2iAVV50..G..TH;ACV51,ASV50..IDN,MA,PHL,TH,VN201203-201504

main45538-48020×2iAVV50..V;ACV51,ASV50,AVV50..(E,G,N)..(IND,TAIW)201112-201504

45535BCLIP(FOR STEERING RACK BOOT)

main45537-06030×2iAVV50..G..TH;ACV51,ASV50..IDN,MA,PHL,TH,VN201203-201504

main90467-19021×2iAVV50..V;ACV51,ASV50,AVV50..(E,G,N)..(IND,TAIW)201112-201504

45536BOOT, STEERING RACK, NO.2

main45535-09250iAVV50..G..TH;ACV51,ASV50..IDN,MA,PHL,TH,VN201203-201504

main45535-39015iACV51,ASV50201112-201201

main45535-39035iAVV50..V;ACV51,ASV50,AVV50..(E,G,N)..(IND,TAIW)201202-201504

45537BNUT, RACK END LOCK

main90178-15003×2iACV51,ASV50;AVV50..IND,TAIW,TH201112-201504

9011912360

main90119-12360

90119T0476

main90119-T0476

9017812009

main90178-12009

90178T0047

main90178-T0047

9538103025

main95381-03025

14 parts on this diagram · 2 diagrams in section
