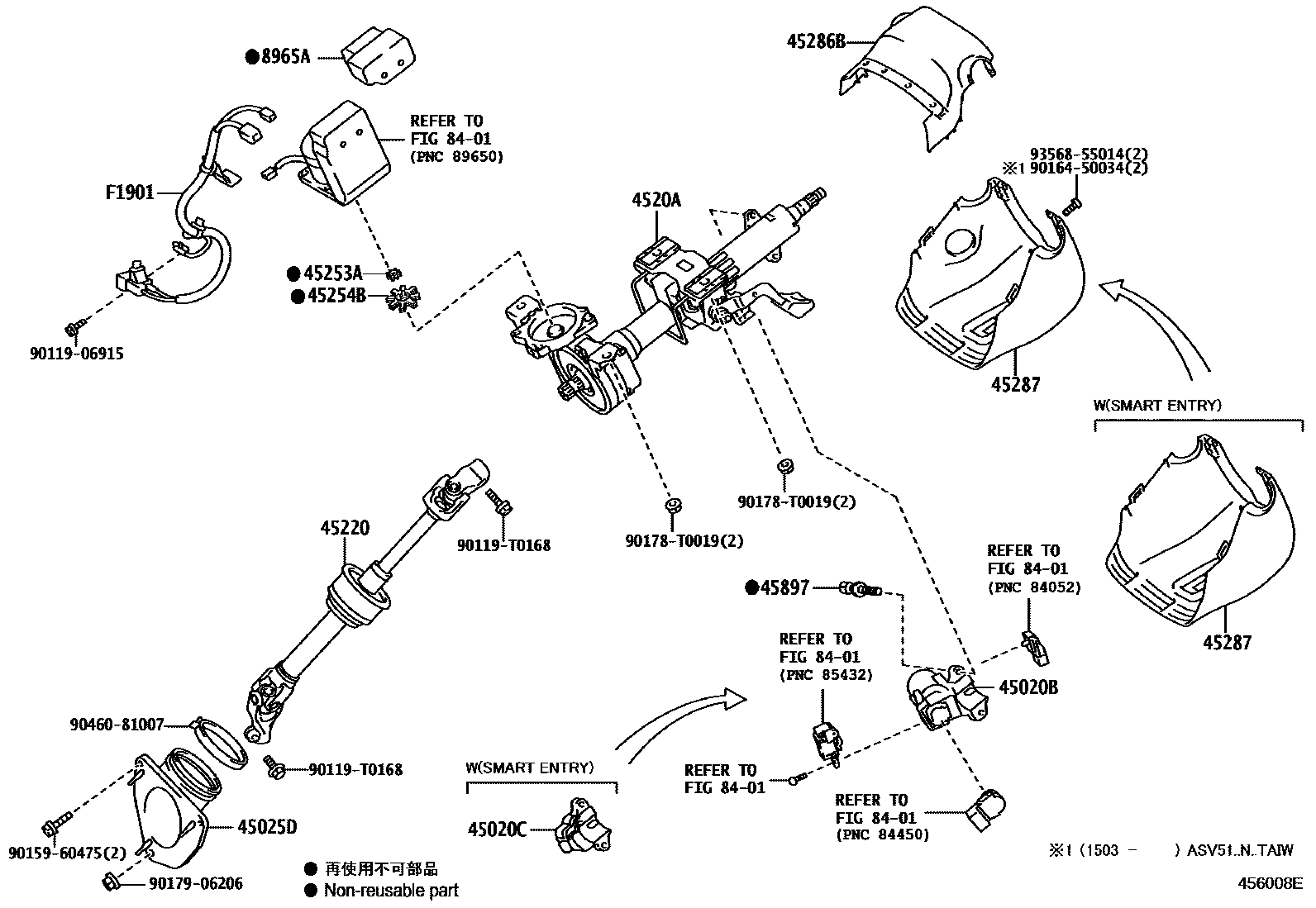

STEERING COLUMN & SHAFT

0001 1 0002 1MANUAL TILT & TELESCOPIC STEE0003 1MANUAL TILT & TELESCOPIC STEE0004 1ELECTRIC TILT & TELESCOPIC ST0005 1ELECTRIC TILT & TELESCOPIC ST

45020BACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK

main45280-06130iACV51..N..(MA,VN);ASV50..E..(IDN,PHL,VN)201203-201504

main45280-06150iACV51,ASV50..N..TAIW201112-201503

45020CACTUATOR ASSY, STEERING LOCK(W/ECU)

main45020-33170iASV50..G;AVV50..G..(TAIW,TH);ASV50,AVV50..(E,V)..TAIW201112-201504

main45020-33200iAVV50..RHD..V201203-201504

main45020-33270iAVV50..IND201703-201811

W/LABEL

main45020-33280iASV50..IND201703-201811

W/LABEL

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-06160iACV51,ASV50..PHL,VN201203-201409

main45025-06161iACV51,ASV50..PHL,VN201410-201504

main45025-06170iACV51,ASV50,AVV50..RHD201203-201409

main45025-06171iASV5#,AVV50..RHD201502-201811

main45025-06180iACV51,ASV50,AVV50..TAIW201112-201503

main45025-06181iASV51,AVV50..TAIW201609-202007

4520ACOLUMN SUB-ASSY, ELECTRIC POWER STEERING

main4520A-06070iACV51,ASV50..(E,N)..(PHL,VN)201203-201504

main4520A-06080iASV5#..PHL,VN201502-201903

main4520A-06090iACV51,ASV50..TH201203-201402

main4520A-06100iASV50,AVV50..G..(IDN,MA,TH)201203-201503

main4520A-33010iACV51,ASV50..N..TAIW201112-201503

main4520A-33020iASV50..IND201504-201811

main4520A-33030iASV51,AVV50..(G,V)..TAIW201503-201809

main4520A-33080iAVV50..RHD..V201203-201504

main4520A-33060iASV50..VN201207-201504

2.5Q PACKAGE

45220SHAFT ASSY, STEERING INTERMEDIATE

main45220-06200iACV51,ASV50..PHL,VN201203-201411

main45220-06201iASV5#..PHL,VN201502-201810

main45220-06210iACV51,ASV50,AVV50..(E,G)..(IDN,TH)201203-201411

main45220-06211iACV51,ASV50,AVV50..(E,G)..(IDN,TH)201411-201502

main45220-06230iACV51,ASV50..MA201205-201411

main45220-06231iACV51,ASV50..MA201411-201503

main45220-33300iASV50..IND;AVV50..RHD..V201203-201504

main45220-33310iASV51,AVV50..TAIW201503-201611

main45220-33370iASV5#..VN201810-201903

main45220-33390iASV50..IND;AVV50..RHD..V201611-201811

main45220-33400iASV51,AVV50..TAIW201611-202007

45253ASPACER, ELECTRIC POWER STEERING MOTOR SHAFT

main45253-28130iAVV50..V;ACV51,ASV50,AVV50..(E,G,N)..(IND,TAIW)201112-201504

45254BDAMPER, ELECTRIC POWER STEERING MOTOR SHAFT

main45254-28040iAVV50..V;ACV51,ASV50,AVV50..(E,G,N)..(IND,TAIW)201112-201504

45286BCOVER, STEERING COLUMN, UPR

main45286-06300-C0iACV51,ASV50,AVV50..TAIW201112-201503

BLACK,TRIM0#,2#

main45286-06310-C0iACV51..E..MA201305-201503

BLACK,TRIM2#

45287COVER, STEERING COLUMN, LWR

main45287-06340-C0iACV51,ASV50..N..TAIW201112-201503

BLACK,TRIM0#,2#

main45287-06350-C0iASV50,AVV50..(E,G,V)..TAIW201112-201503

BLACK,TRIM0#,2#

main45287-06360-C0iACV51..N..(MA,VN);ASV50..E..(IDN,PHL); ASV50..VN201203-201504

BLACK,TRIM0#; BLACK,TRIM0#,2#

main45287-06370-C0iASV51..N..MA; AVV50..MA201503-201809

BLACK,TRIM2#; BLACK,TRIM2#,4#

main45287-06380-C0supersedes 45287-06360-C0iAVV50..RHD..V201203-201504

BLACK,TRIM0#

45897BOLT, STEERING LOCK SET

main45897-12020×2iACV51,ASV50;AVV50..IND,TAIW,TH201112-201504

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8965APROTECTOR, POWER STEERING COMPUTER

main8965A-06020iACV51,ASV50,AVV50..(E,G,N)..(IDN,MA,PHL,TH,VN)201203-201402

NO.1

main8965A-06030iACV51,ASV50,AVV50..(E,G,N)..(IDN,MA,PHL,TH,VN)201203-201402

NO.2

main8965A-06040iAVV50..G..TH;ACV51,ASV50..IDN,MA,PHL,TH,VN201403-201504

NO.1

main8965A-06050iAVV50..G..TH;ACV51,ASV50..IDN,MA,PHL,TH,VN201403-201504

NO.2

main8965A-33010iACV51,ASV50201112-201201

main8965A-33011iASV51,AVV50..TAIW201503-202007

main8965A-33020iAVV50..V..TH201203-201204

main8965A-33021iASV50..IND;AVV50..RHD..V201502-201811

F1901WIRE SUB-ASSY, COMPUTER

mainF190106040iACV51,ASV50..PHL,VN201203-201504

mainF190106050iASV5#,AVV50..(E,G,N)..(IDN,MA,TH)201502-201809

mainF190133050iACV51,ASV50,AVV50..TAIW201112-201503

mainF190133070iASV50..IND;AVV50..RHD..V201502-201811

9011906915

main90119-06915

90119T0168

main90119-T0168

9015960475

main90159-60475

9016450034

main90164-50034

90178T0019

main90178-T0019

9017906206

main90179-06206

9046081007

main90460-81007

9356855014

main93568-55014

21 parts on this diagram · 5 diagrams in section
