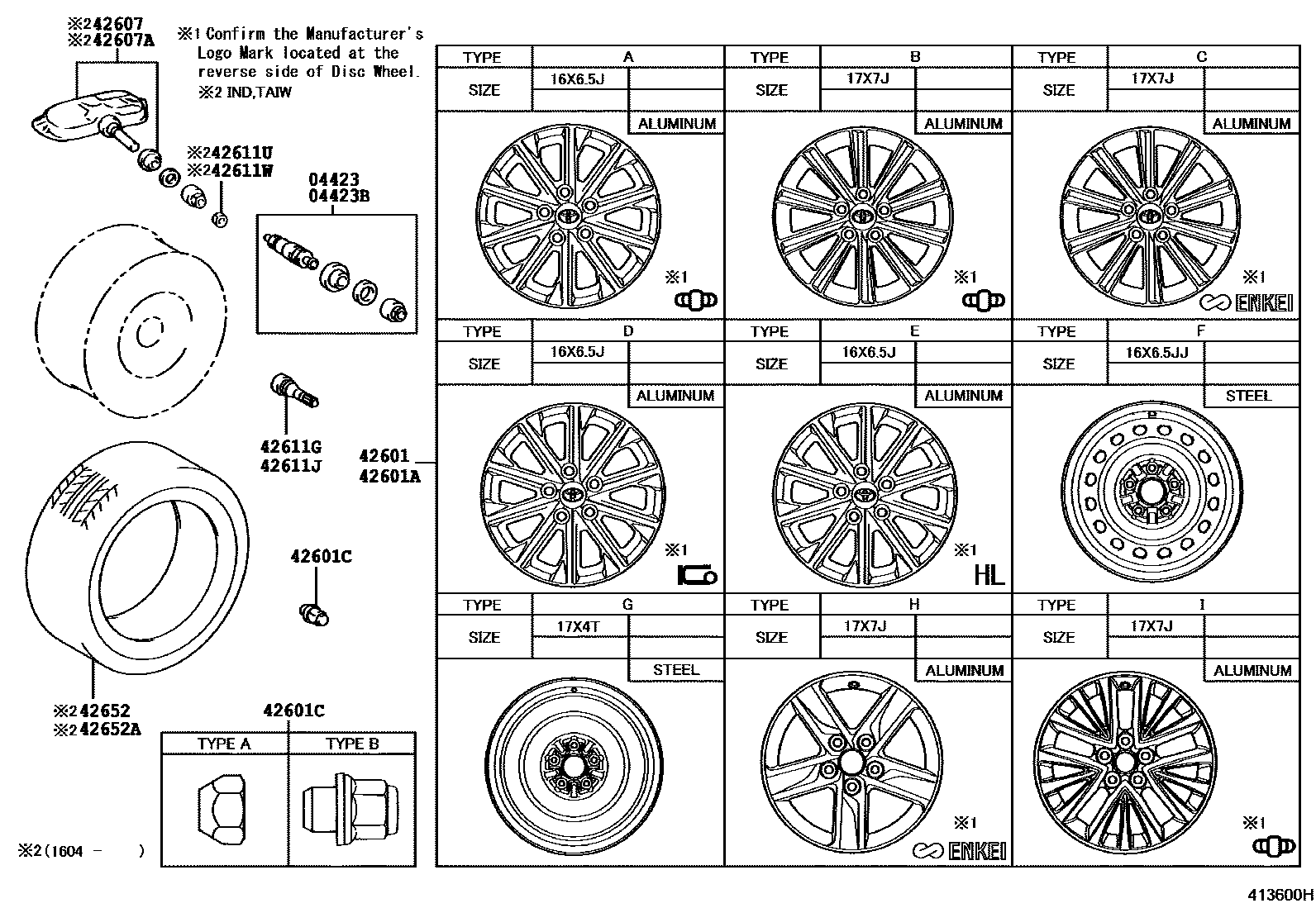

DISC WHEEL & WHEEL CAP
04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE
(L)
04423BFITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE(SPARE)
42601WHEEL, DISC
16X6.5J,#,TYPE A:REFER ILLUST.
16X6.5J,#,TYPE A:REFER ILLUST.
17X7J,#,TYPE B:REFER ILLUST.
16X6.5J,#,SINGAPORE SPEC OR BRUNEI SPEC,TYPE D:REFER ILLUST.
16X6.5J,#,TYPE D:REFER ILLUST.
16X6.5J,#,SINGAPORE SPEC OR BRUNEI SPEC,TYPE E:REFER ILLUST.
sub42611-06A11
16X6.5J,#,SINGAPORE SPEC OR BRUNEI SPEC,TYPE E:REFER ILLUST.
16X6.5J,#,TYPE E:REFER ILLUST.
16X6.5J,#,TYPE E:REFER ILLUST.
17X7J,#,TYPE C:REFER ILLUST.
17X7J,#,TYPE C:REFER ILLUST.
16X6.5J,#,TYPE D:REFER ILLUST.
17X7J,#,TYPE C:REFER ILLUST.
17X7J,#,TYPE K:REFER ILLUST.
17X7J,#,TYPE I:REFER ILLUST.
17X7J,#,TYPE K:REFER ILLUST.
16X6.5JJ,#,SINGAPORE SPEC OR BRUNEI SPEC,TYPE F:REFER ILLUST.
17X7J,#,2.5Q PACKAGE,TYPE H:REFER ILLUST.
17X7J,#,S PACKAGE,TYPE J:REFER ILLUST.
42601AWHEEL, DISC (FOR SPARE)
17X4T,TYPE G:REFER ILLUST.
16X6.5JJ,#,TYPE F:REFER ILLUST.
16X6.5J,#,TYPE D:REFER ILLUST.
16X6.5J,#,TYPE D:REFER ILLUST.
16X6.5J,#,TYPE E:REFER ILLUST.
16X6.5J,#,TYPE E:REFER ILLUST.
16X6.5J,#,TYPE E:REFER ILLUST.
17X7J,#,TYPE C:REFER ILLUST.
17X7J,#,TYPE C:REFER ILLUST.
17X7J,#,TYPE C:REFER ILLUST.
17X7J,#,TYPE G:REFER ILLUST.
17X7J,#,TYPE K:REFER ILLUST.
17X7J,#,2.5Q PACKAGE,TYPE H:REFER ILLUST.
42601CNUT, HUB (FOR AXLE)
TYPE B:REFER ILLUST.
SINGAPORE SPEC OR BRUNEI SPEC&TIRE & DISC WHEEL-215/60R16 95V 6.5JJ,TYPE A:REFER ILLUST.
42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR
(L)
(J)
42607AVALVE SUB-ASSY, TIRE PRESSURE MONITOR (FOR SPARE)
42611GVALVE (FOR TUBELESS TIRE)
(L)
42611JVALVE (FOR TUBELESS TIRE SPARE)
(J)
42611UCAP, TIRE VALVE
(L)
42611WCAP, TIRE VALVE (FOR SPARE)
42652TIRE
P215/60R16,*B/S
215/60R16 95H
215/55R17,*B/S
215/55R17,*B/S
215/55R17 94V
215/60R16 95V,*Y/H
215/55R17 93V,*Y/H
42652ATIRE (FOR SPARE)
T155/70D17
215/60R16 95V,*Y/H
215/55R17 93V,*Y/H
13 parts on this diagram · 3 diagrams in section
