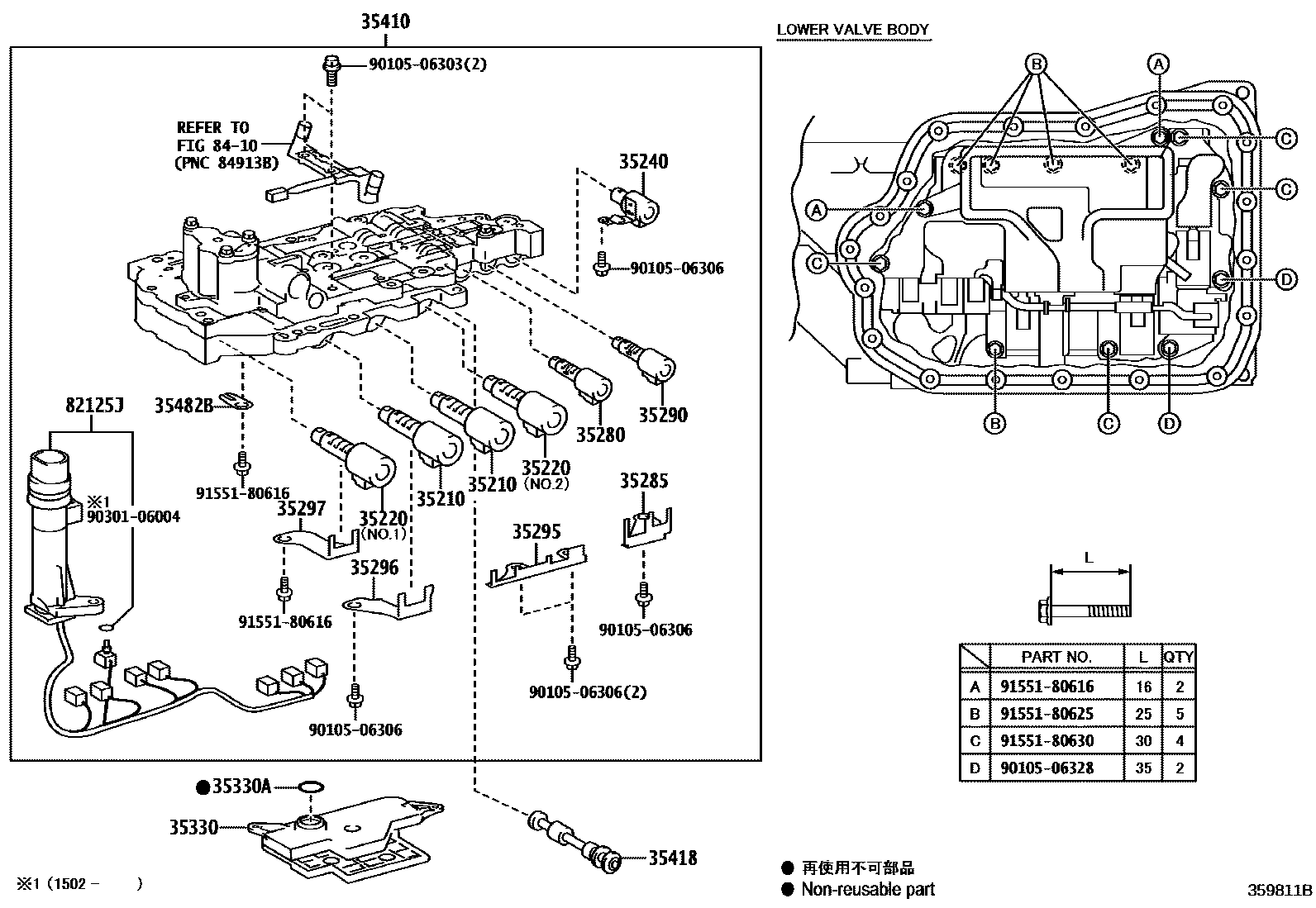

VALVE BODY & OIL STRAINER (ATM)

0001 1U760E,U761E 0002 1U760E,U761E 0003 1U241E 0004 1U241E

35210SOLENOID ASSY, CLUTCH CONTROL, NO.1

main35210-33030iASV50201410-201903

main35210-33050iACV51201112-201504

main35210-48030iASV51201502-202007

main35210-73010iASV50201112-201409

35220SOLENOID ASSY, CLUTCH CONTROL, NO.2

main35220-33030iACV51201112-201504

main35220-33050iASV51201502-201703

main35220-33050iASV51201703-202007

NO.1

main35220-33100iASV51201703-202007

NO.2

main35220-48020iASV50201410-201903

main35220-73010iASV50201112-201409

35240SOLENOID ASSY, AUTOMATIC TRANSMISSION 3WAY

main35240-21010iACV51201112-201504

main35240-73010iASV50201112-202007

35280SOLENOID ASSY, LOCK UP CONTROL

main35280-33020iASV50..IDN,IND,MA,PHL,TH,VN201112-201903

main35280-33040iASV51201502-202007

35285PLATE, SOLENOID LOCK

main35285-33060iACV51201112-201504

main35285-33070iASV50201112-201903

TRANSAXLE NO.=XXAXXX

main35285-33070iASV51201502-202007

main35285-73010iASV50201112-201811

TRANSAXLE NO.=XXTXXX

35290SOLENOID ASSY, LINE PRESSURE CONTROL

main35290-33040iASV50201112-201903

main35290-48020iASV51201502-202007

35295PLATE, SOLENOID LOCK, NO.2

main35295-33040iACV51201112-201504

main35295-33050iASV50201112-201903

TRANSAXLE NO.=XXAXXX

main35295-33050iASV51201502-202007

main35295-73010iASV50..IDN,IND,MA,PHL,TH,VN201112-201811

TRANSAXLE NO.=XXTXXX

35296PLATE, SOLENOID LOCK, NO.3

main35296-33040iACV51201112-201504

main35296-33050iASV50201112-201903

TRANSAXLE NO.=XXAXXX

main35296-33050iASV51201502-202007

main35296-73010iASV50..IDN,IND,MA,PHL,TH,VN201112-201811

TRANSAXLE NO.=XXTXXX

35297PLATE, SOLENOID LOCK, NO.4

main35297-33020iASV50201112-201903

TRANSAXLE NO.=XXAXXX

main35297-33030iASV51201502-202007

main35297-73010iASV50..IDN,IND,MA,PHL,TH,VN201112-201811

TRANSAXLE NO.=XXTXXX

35330STRAINER ASSY, VALVE BODY OIL

main35330-06010iACV51201112-201504

main35330-73010iASV50201112-201903

main35330-73021iASV51201502-202007

35330ARING, O (FOR OIL STRAINER)

main90301-27015iASV50201112-202007

35410BODY ASSY, TRANSMISSION VALVE

main35410-33190iACV51201112-201504

main35410-33250iASV50201112-201811

TRANSAXLE NO.=XXTXXX

main35410-33260iASV50201112-201903

TRANSAXLE NO.=XXAXXX

main35410-33270iASV51201502-202007

35418VALVE, MANUAL

main35418-21011iACV51201112-201504

main35418-33030iASV51201502-202007

main35418-73010iASV50201112-201903

35482BCLAMP, TEMPERATURE SENSOR

main35482-73010iASV50201112-202007

82125JWIRE, TRANSMISSION

main82125-33110iACV51201112-201504

main82125-73010iASV50201112-201807

main82125-73011iASV5#201808-202007

8410OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

→ Go to FIG 84-10

9010506303

main90105-06303

9010506306

main90105-06306

9010506328

main90105-06328

9030106004

main90301-06004

9155180616

main91551-80616

9155180625

main91551-80625

9155180630

main91551-80630

23 parts on this diagram · 4 diagrams in section
