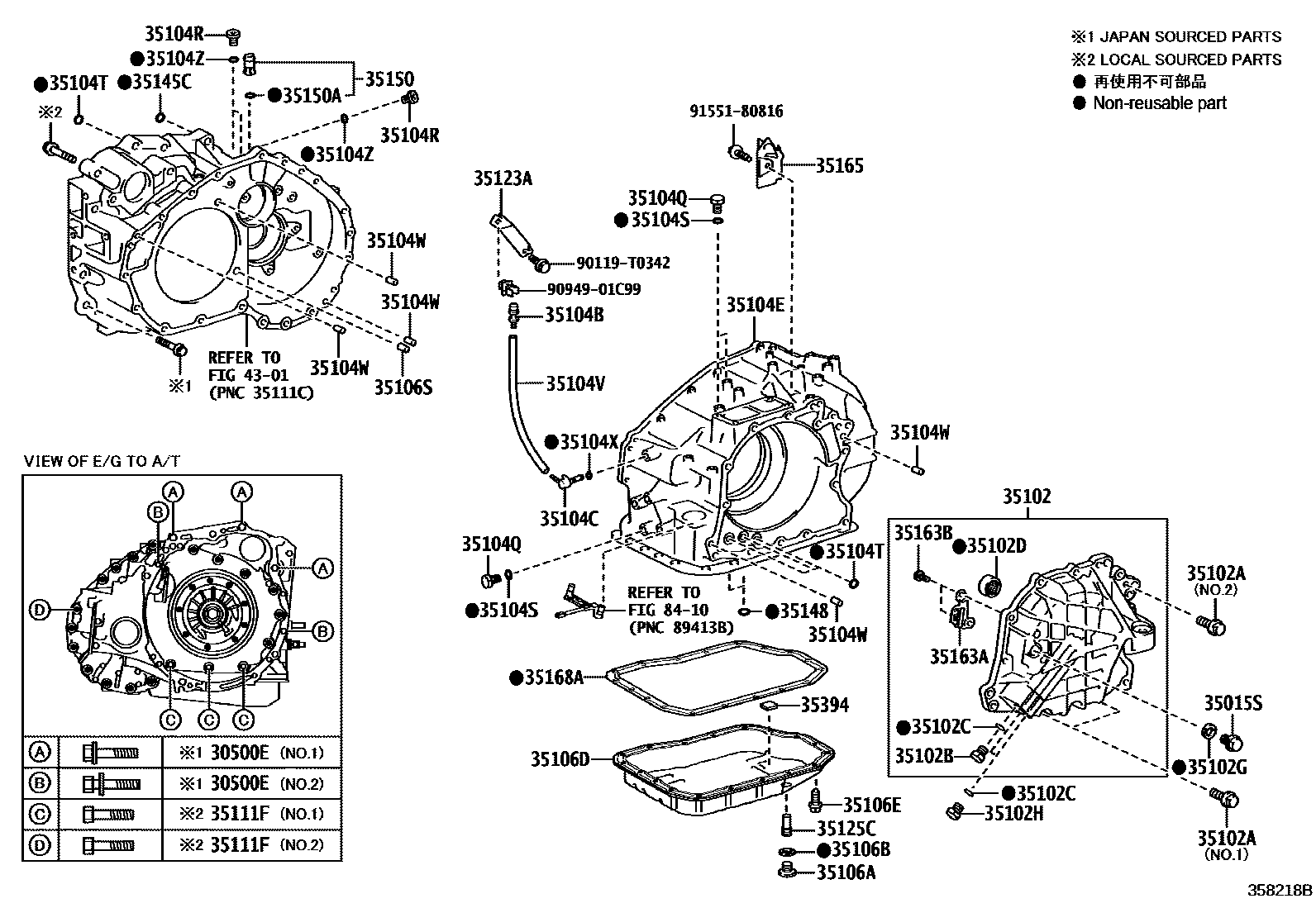

TRANSMISSION CASE & OIL PAN (ATM)

0001 1U760E 0002 1U241E 0003 1U761E

30500EBOLT(FOR TRANSAXLE & ENGINE SETTING)

main90105-T0006iACV51201112-201504

*10-1.25PX65-30,NO.2,(L)

main90105-T0311iASV50201406-201903

*10-1.25PX50-30,NO.2,(L)

main90105-T0311iASV50201406-201504

*10-1.25PX50-30,NO.3,(L)

main90119-12168iASV51201112-202007

*12-1.25PX55-30,NO.1,(J)

main90119-T0214iACV51,ASV50201112-201903

*12-1.25PX55-30,NO.1,(L)

main91512-61050iASV50201406-201504

*10-1.25PX50-30,NO.3,(J)

main91512-61050iASV50201406-201504

*10-1.25PX50-30,NO.2,(J)

main91512-61050iACV51201112-202007

*10-1.25PX50-30,NO.2

main91512-61050iACV51201112-201406

*10-1.25PX50-30,NO.3

main91512-61065iACV51201112-201504

*10-1.25PX65-30,NO.2,(J)

35015SPLUG, STRAIGHT(FOR TRANSMISSION CASE ADAPTER)

main90341-18064iASV50201112-202007

35102COVER SUB-ASSY, TRANSAXLE REAR

main35102-33020iACV51201112-201504

sub35102-28020

sub35102-42H00

main35102-33090iASV50201112-201308

TRANSAXLE NO.=XXAXXX

sub35102-33091

main35102-33091iASV50201308-201903

TRANSAXLE NO.=XXAXXX

main35102-33091iASV51201502-202007

main35102-73010iASV50201112-201308

TRANSAXLE NO.=XXTXXX

sub35102-73011

main35102-73011iASV50..IDN,IND,MA,PHL,TH,VN201308-201811

TRANSAXLE NO.=XXTXXX

sub35102-33091

35102ABOLT (FOR TRANSAXLE REAR COVER SETTING)

main90105-08071iACV51201112-201504

*8-1.25PX30-25

main90105-08431iASV51;ASV50..IDN,IND,MA,PHL,TH,VN201112-202007

*8-1.25PX28-22,NO.1

main91551-00828iASV51;ASV50..IDN,IND,MA,PHL,TH,VN201112-202007

*8-1.25PX28-22,NO.2

35102BPLUG(FOR TRANSAXLE REAR COVER)

main90341-08001iASV50201112-202007

35102CRING, O(FOR TRANSAXLE REAR COVER PULG)

main90301-06196iASV50201112-202007

35102DBEARING, NEEDLE ROLLER(FOR TRANSAXLE REAR COVER)

main90364-18010iASV50201112-202007

35102GGASKET (FOR TRANSAXLE REAR COVER )

main90430-18008iASV50201112-202007

35102HPLUG, NO.2 (FOR TRANSAXLE REAR COVER)

main90341-08001iASV50201112-202007

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03149iACV51,ASV50201112-202007

35104CPLUG, BREATHER, NO.2 (ATM)

main90930-03157iACV51201112-201504

main90930-03187iASV50201112-202007

35104ECASE SUB-ASSY, AUTOMATIC TRANSAXLE

main35104-33092iACV51201112-201504

sub35104-28093

sub35104-33081

sub35422-33040

sub82123-28431

sub82715-44520

sub90105-08066

sub90119-08868

sub90301-19016

sub90301-30007

main35141-33140iASV50201112-201404

TRANSAXLE NO.=XXAXXX

sub35141-33141

sub90369-72002

sub90520-99154

main35141-33141iASV50201404-201903

TRANSAXLE NO.=XXAXXX

main35141-33170iASV51201502-202007

main35141-73010iASV50201112-201405

TRANSAXLE NO.=XXTXXX

sub35141-73011

sub90369-72002

sub90520-99154

main35141-73011iASV50201405-201811

TRANSAXLE NO.=XXTXXX

sub35141-33141

35104QPLUG, NO.1 (FOR TRANSAXLE CASE)

main90341-08001iASV50201112-202007

35104RPLUG, NO.2 (FOR TRANSAXLE CASE)

main90341-14015iASV51;ASV50..IDN,IND,MA,PHL,TH,VN201112-202007

35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)

main90301-06196iASV50201112-202007

35104TRING, O (FOR TRANSAXLE CASE PLUG NO.2)

main90301-10018iASV51;ASV50..IDN,IND,MA,PHL,TH,VN201112-202007

35104VHOSE (FOR BREATHER PLUG)

main35121-21020iACV51201112-201504

main35121-33050iASV50201112-201404

TRANSAXLE NO.=XXAXXX

sub35121-33051

main35121-33051iASV50201404-201903

TRANSAXLE NO.=XXAXXX

main35121-33051iASV51201502-202007

main35121-73010iASV50201112-201312

TRANSAXLE NO.=XXTXXX

sub35121-73011

main35121-73011iASV50201312-201811

TRANSAXLE NO.=XXTXXX

35104WPIN, STRAIGHT (FOR TRANSAXLE CASE)

main90250-10017iASV50201112-202007

main90250-10036iACV51201112-201302

sub90250-10232

main90250-10232iACV51201302-201504

35104XRING, O (FOR BREATHER PLUG)

main90301-06005iACV51201112-201307

main90301-06021iACV51201112-202007

35104ZGASKET (FOR TRANSAXLE CASE)

main90430-14008iASV51;ASV50..IDN,IND,MA,PHL,TH,VN201112-202007

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-12034iASV51;ASV50..IDN,IND,MA,PHL,TH,VN201112-202007

main90341-18016iACV51201112-201504

35106BGASKET, DRAIN PLUG (ATM)

main90430-12008iASV50201112-202007

main90430-18008iACV51201112-201504

35106DPAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL

main35106-33030iACV51201112-201504

main35106-33070iASV50201112-201903

TRANSAXLE NO.=XXAXXX

main35106-73010iASV50..IDN,IND,MA,PHL,TH,VN201112-201811

TRANSAXLE NO.=XXTXXX

main35106-73021iASV51201502-202007

35106EBOLT (FOR TRANSAXLE OIL PAN)

main90119-06173iACV51201112-202007

35106SPIN, RING (FOR TRANSAXLE CASE)

main90253-11007iASV50201112-202007

35111FBOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING)

main90105-06320iACV51201112-201504

*6-1.00PX50-25,NO.4

main90105-08233iACV51201112-201504

*8-1.25PX42-30,NO.2

main90105-08353iACV51201112-201504

*8-1.25PX50-30,NO.1 & NO.3

main90105-08432iASV51;ASV50..IDN,IND,MA,PHL,TH,VN201112-202007

*8-1.25PX45-22,NO.1

main91551-10845iASV51;ASV50..IDN,IND,MA,PHL,TH,VN201112-202007

*8-1.25PX45-22,NO.2

35123ASKIRT, TRANSMISSION BREATHER

main35123-21010iASV50201112-201903

35125CTUBE, TRANSMISSION OIL FILLER, NO.1

main35125-33100iASV51201502-202007

main35125-73010iASV50201112-201903

35145CGASKET, TRANSAXLE CASE

main35145-33010iASV50201112-202007

35148GASKET, GOVERNOR APPLY, NO.1

main35145-21010iACV51201112-201504

main35145-33010iASV50201112-201903

35150PLUG ASSY, TRANSMISSION CASE

main35150-44010iASV51;ASV50..IDN,IND,MA,PHL,TH,VN201112-202007

35150ARING, O (FOR AUTOMATIC TRANSMISSION CASE PLUG)

main90301-09173iASV50201112-201504

35163APLATE, TRANSAXLE REAR COVER

main35163-28010iACV51201112-201504

main35163-33010iASV50201112-202007

35163BSCREW, HEX LOBULAR(FOR TRANSAXLE REAR COVER PLATE)

main90148-60055iACV51,ASV50201112-202007

35165PLATE, TRANSMISSION CASE, NO.1

main35165-73010iASV50201112-202007

35168AGASKET, AUTOMATIC TRANSAXLE OIL PAN

main35168-21020iACV51201112-201504

main35168-73010iASV50201112-202007

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011iASV50201112-202007

4301

8410

90119T0342

main90119-T0342

9094901C99

main90949-01C99

9155180816

main91551-80816

42 parts on this diagram · 3 diagrams in section
