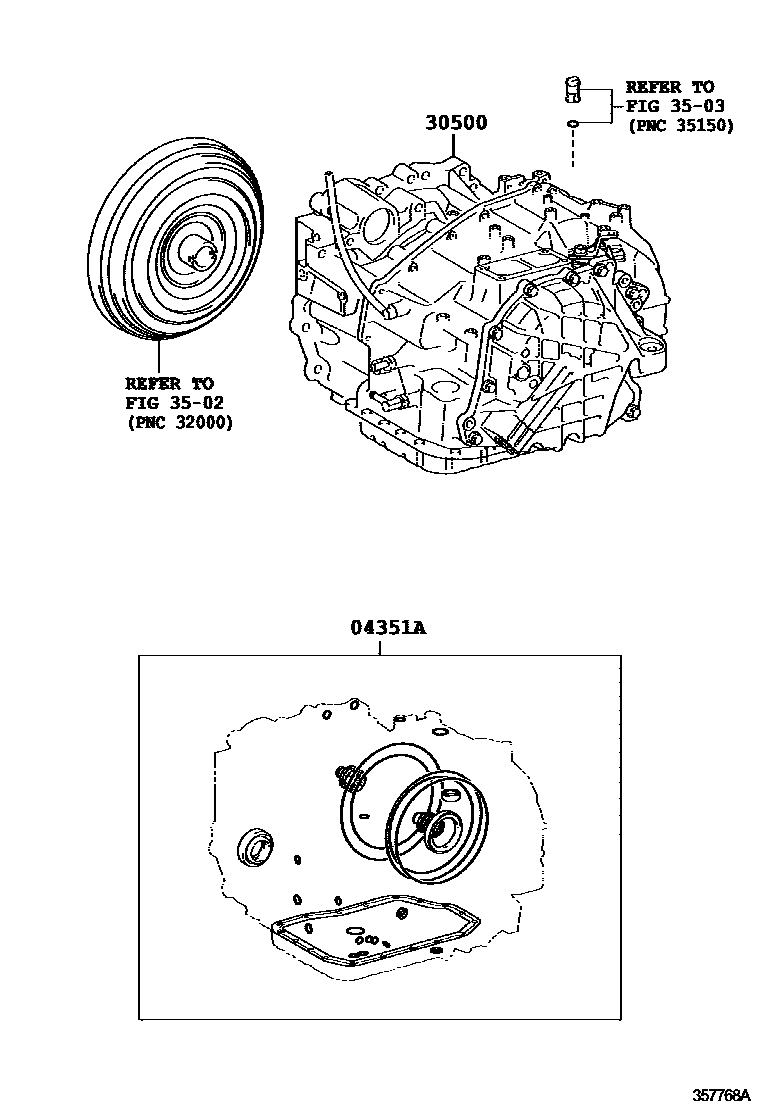

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

0001 1U760E 0002 1U241E 0003 1U761E

04351AGASKET KIT, TRANSAXLE OVERHAUL(ATM)

main04351-33531iASV50201112-201212

TRANSAXLE NO.=XXAXXX

main04351-33532iASV50201212-201903

TRANSAXLE NO.=XXAXXX

main04351-33560iASV51201502-201904

main04351-33561iASV51201904-202007

main04351-48151iACV51201112-201307

main04351-48154iACV51201307-201504

main04351-48182iASV50201112-201212

TRANSAXLE NO.=XXTXXX

main04351-48183iASV50..IDN,IND,MA,PHL,TH,VN201212-201811

TRANSAXLE NO.=XXTXXX

30500TRANSAXLE ASSY, AUTOMATIC

main30500-33600iASV50201112-201403

U760E,TRANSAXLE NO.=XXTXXX

main30500-33601iASV50201403-201409

U760E,TRANSAXLE NO.=XXTXXX

main30500-33602iASV50201410-201811

U760E,TRANSAXLE NO.=XXTXXX

main30500-33610iASV50201112-201406

U760E,TRANSAXLE NO.=XXAXXX

main30500-33611iASV50201406-201903

U760E,TRANSAXLE NO.=XXAXXX

main30500-33680iACV51201112-201504

U241E

main30500-33730iASV51201502-202007

U761E

3502TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

→ Go to FIG 35-02

3503TRANSMISSION CASE & OIL PAN (ATM)

→ Go to FIG 35-03

4 parts on this diagram · 3 diagrams in section
