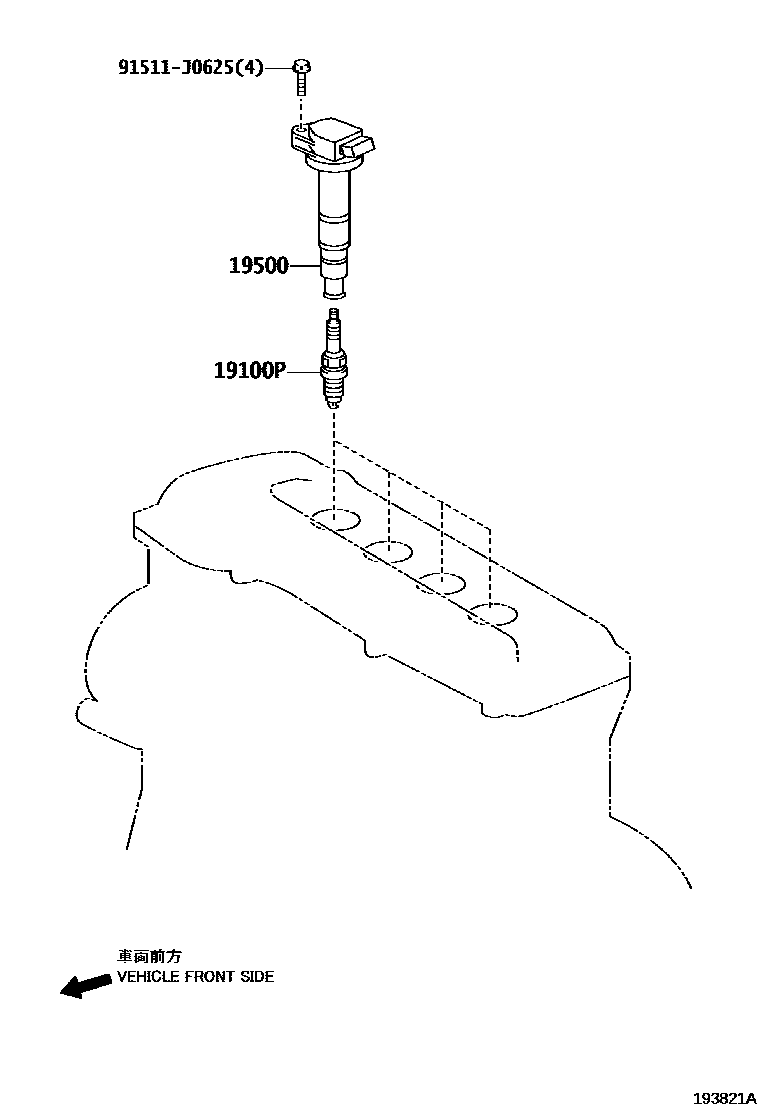

IGNITION COIL & SPARK PLUG / GLOW PLUG

0001 1 0002 1

19100PPLUG, SPARK

main90919-01233×4i2ARFE..ASV50..IND,VN201203-201504

SK16HR11,*107

main90919-01240×4i1AZFE..ACV51201112-201504

SK16R11

main90919-01259×4i2ARFXE..AVV50..IND201504-201811

FK16HR-A8,*107

main90919-01286×4i6ARFSE..ASV51201502-202007

FK16HBR-J8,(J)

main90919-C1001×4i2ARFE..ASV50..TAIW201112-201412

SK16HR11

main90919-C1006×4i6ARFSE..ASV51201502-202007

FK16HBR-J8,(L)

main90919-T1012×4i1AZFE..ACV51201112-201504

IFR5A11

19500COIL ASSY, IGNITION

main90919-02256×4i2AR#..ASV50,AVV50..IND,VN201504-201903

*107

main90919-02260×4i1AZFE..ACV51201112-201504

main90919-C2004×4i2AR#..ASV50,AVV50..TAIW201112-201503

91511J0625

main91511-J0625

3 parts on this diagram · 2 diagrams in section
