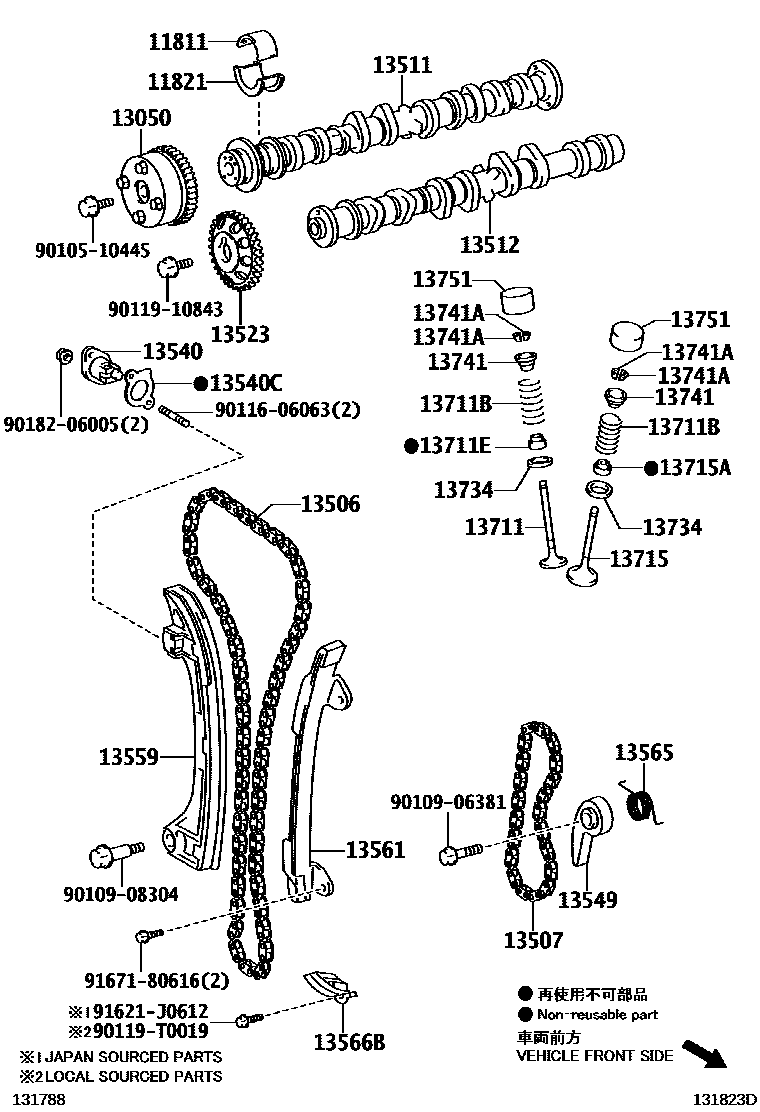

11811BEARING, CAMSHAFT, NO.1
main11811-36010supersedes 11811-36010i2ARFE..ASV50..IND,VN201203-201504 *107
11821BEARING, CAMSHAFT, NO.2
main11821-36010supersedes 11821-36010i2AR#..ASV50,AVV50..IDN,MA,PHL,TH201303-201503 *286
13050GEAR ASSY, CAMSHAFT TIMING
main13050-36030supersedes 13050-36030i2ARFE..ASV50..IDN,MA,PHL201710-201903 *107
13506CHAIN SUB-ASSY
main13506-0V010supersedes 13506-36030i2AR#..ASV50,AVV50..IDN,MA,PHL,TH201502-201809 *286
main13506-36010i2AR#..ASV50,AVV50..IDN,IND,MA,PHL,TH,VN201203-201407 *107
13507CHAIN SUB-ASSY, NO.2
13511CAMSHAFT
main13501-36020i2ARFE..ASV50..IDN,MA,PHL,TH201203-201207 *107
main13501-36050supersedes 13501-36050i2ARFE..ASV50..IND,VN201504-201903 *107
13512CAMSHAFT, NO.2
main13502-36030supersedes 13502-36030i2ARFE..ASV50..IDN,MA,PHL,TH201303-201503 *286
13523GEAR OR SPROCKET, CAMSHAFT TIMING
13540TENSIONER ASSY, CHAIN, NO.1
main13540-0V010i2AR#..ASV50,AVV50..IDN,MA,PHL,TH201303-201306 *286
main13540-0V030supersedes 13540-36040i2AR#..ASV50,AVV50..IDN,MA,PHL,TH201502-201809 *286
main13540-36010i2AR#..ASV50,AVV50..IDN,IND,MA,PHL,TH,VN201203-201306 *107
main13540-36040i2ARFXE..AVV50..MA,TH;2ARFE..ASV50..IDN,MA,PHL201710-201806 *107
main13540-36041i2AR#..ASV50,AVV50..IDN,IND,MA,PHL,TH,VN201807-201903 *107
13540CGASKET(FOR CHAIN TENSIONER)
main13552-36010supersedes 13552-36010i2AR#..ASV50,AVV50..IND,VN201504-201903 *107
13549PLATE, CHAIN TENSIONER
13559SLIPPER, CHAIN TENSIONER
main13559-0V010supersedes 13559-36040i2AR#..ASV50,AVV50..IDN,MA,PHL,TH201502-201809 SINGAPORE SPEC,*286
main13559-36010i2AR#..ASV50,AVV50..IDN,IND,MA,PHL,TH,VN201203-201409 *107
13561DAMPER, CHAIN VIBRATION, NO.1
main13561-0V010supersedes 13561-36030i2AR#..ASV50,AVV50..IDN,MA,PHL,TH201303-201503 *286
main13561-36010i2AR#..ASV50,AVV50..IDN,IND,MA,PHL,TH,VN201203-201409 *107
main13561-36030i2AR#..ASV50,AVV50..IDN,MA,PHL,TH201409-201501 *107
13565SPRING, CHAIN DAMPER
13566BGUIDE, TIMING CHAIN
main13566-0V011supersedes 13566-36011i2AR#..ASV50,AVV50..IDN,MA,PHL,TH201502-201809 *286
main13566-0V021i6ARFSE..ASV51;2ARFXE..AVV50..TAIW201502-202007 main13566-36010i2AR#..ASV50,AVV50..IDN,PHL,TH201203-201204 *107
main13566-36011i2AR#..ASV50,AVV50..IDN,MA,PHL,TH201204-201501 *107
13711VALVE, INTAKE
main13711-36060×8supersedes 13711-36060i2AR#..ASV50,AVV50..IDN,MA,PHL,TH201502-201809 *286
13711BSPRING, COMPRESSION(FOR INNER)
main90501-34016×16supersedes 90501-34022i2AR#..ASV50,AVV50..IDN,MA,PHL,TH201203-201501 *107PNC 13741=TYPE A
main90501-34022×16i2ARFXE..AVV50..MA,TH;2ARFE..ASV50..IDN,MA,PHL201710-201903 *107PNC 13741=TYPE B
13711ESEAL, INTAKE VALVE STEM OIL
main90913-02101×8supersedes 90913-02101i2AR#..ASV50,AVV50..IDN,MA,PHL,TH201303-201503 *286
main90913-T2001×8i6ARFSE..ASV51;2ARFXE..AVV50..TAIW201502-202007 13715VALVE, EXHAUST
main13715-0V010×8supersedes 13715-36020i2AR#..ASV50,AVV50..IDN,MA,PHL,TH201306-201503 (L),*286
main13715-36020×8i2AR#..ASV50,AVV50..IND,VN201203-201504 *107
13715ASEAL, EXHAUST VALVE STEM OIL
main90913-02112×8supersedes 90913-02112i2AR#..ASV50,AVV50..IND,VN201504-201903 *107
main90913-T2003×8i6ARFSE..ASV51;2ARFXE..AVV50..TAIW201502-202007 13734SEAT, VALVE SPRING
main13734-0P020×16i6ARFSE..ASV51;2ARFXE..AVV50..TAIW201502-202007 main13734-62020×16supersedes 13734-62020i2AR#..ASV50,AVV50..IND,VN201504-201903 *107
13741RETAINER, VALVE SPRING
main13741-20021×16supersedes 13741-36010i2AR#..ASV50,AVV50..IND,VN201203-201504 *107T/P A:REF.ILLUST
13741ALOCK, VALVE SPRING RETAINER
main90913-03028×32supersedes 90913-03028i1AZFE..ACV51201112-201504 main90913-C3002×32i2AR#..ASV50,AVV50..TAIW201405-201503 (L)
