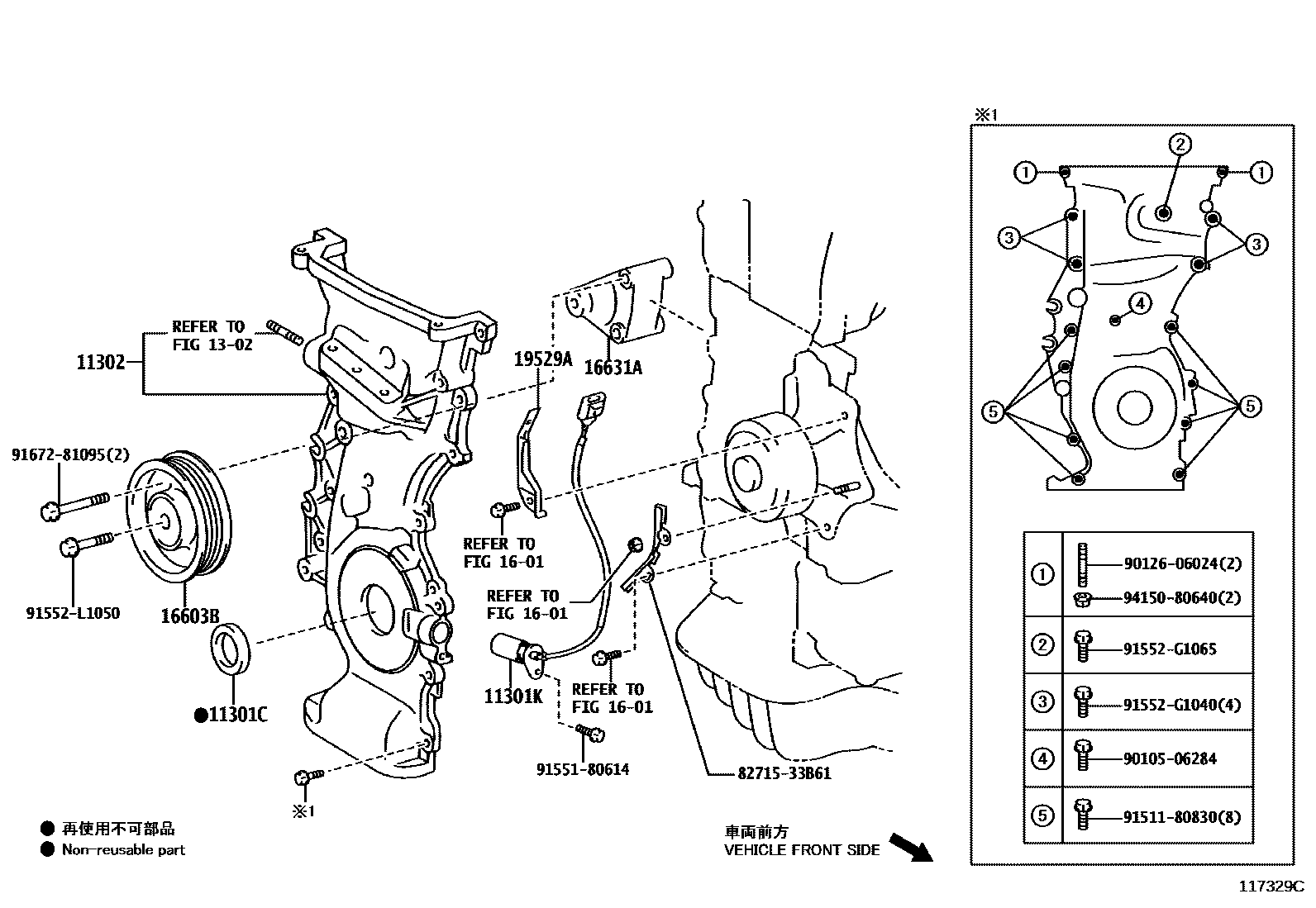

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1

11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)

main90080-31083i1AZFE..ACV51201112-201207

main90311-40042i2AR#..ASV50,AVV50..IND,VN201408-201903

*107

sub90311-42061

main90311-40042i2AR#..ASV50,AVV50..IDN,MA,PHL,TH201408-201809

*286

sub90311-42061

main90311-40042i2AR#..ASV50,AVV50..IDN,MA,PHL,TH201502-201809

SINGAPORE SPEC,*286

sub90311-42061

main90311-42043i2AR#..ASV50,AVV50..IDN,IND,MA,PHL,TH,VN201203-201312

*107

sub90311-42051

main90311-42043i2AR#..ASV50,AVV50..IDN,MA,PHL,TH201303-201312

*286

sub90311-42051

main90311-42051i2AR#..ASV50,AVV50..IDN,IND,MA,PHL,TH,VN201312-201408

*107

main90311-42051i2AR#..ASV50,AVV50..IDN,MA,PHL,TH201312-201407

*286

main90311-C0017i2AR#..ASV50,AVV50..TAIW201112-201312

sub90311-C0036

main90311-C0036i2AR#..ASV50,AVV50..TAIW201312-201809

main90311-C0040i6ARFSE..ASV51201502-201701

sub90311-C0046

main90311-C0046i6ARFSE..ASV51201702-202007

main90311-T0053i1AZFE..ACV51201207-201504

11301KSENSOR, CRANK POSITION

main90919-05067i1AZFE..ACV51201112-201504

main90919-05070i2AR#..ASV50,AVV50..IDN,MA,PHL,TH201502-201809

SINGAPORE SPEC,*286

main90919-05070i2ARFE..ASV50..TH201303-201809

*286

main90919-05070i2ARFXE..AVV50..TAIW201112-201809

main90919-05070i2AR#..ASV50,AVV50..IND,VN201203-201903

*107

main90919-05088i6ARFSE..ASV51201502-202007

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11310-0H021i1AZFE..ACV51..TAIW201112-201503

(L)

main11310-0H031i1AZFE..ACV51..MA,TH,VN201203-201504

(L)

main11310-0V030i2ARFXE..AVV50..TAIW201112-201809

main11310-0V040i6ARFSE..ASV51201502-202007

main11310-0V060i2AR#..ASV50,AVV50..IDN,MA,PHL,TH201502-201809

SINGAPORE SPEC,*286

main11310-0V060i2AR#..ASV50,AVV50..IDN,MA,PHL,TH201303-201809

*286

main11310-28071i1AZFE..ACV51201112-201207

(J)

main11310-36020i2AR#..ASV50,AVV50..IDN,MA,PHL,TH201203-201903

*107

1302

1601

16603BPULLEY SUB-ASSY, IDLER

main16603-28050i1AZFE..ACV51201112-201504

16631ABRACKET, IDLER PULLEY

main16631-28031i1AZFE..ACV51201112-201504

19529ACLAMP

main19529-28050i1AZFE..ACV51201112-201504

8271533B61BRACKET,WIRING HARNESS CLAMP

main82715-33B61

9010506284

main90105-06284

9012606024

main90126-06024

9151180830

main91511-80830

9155180614

main91551-80614

91552G1040

main91552-G1040

91552G1065

main91552-G1065

91552L1050

main91552-L1050

9167281095

main91672-81095

9415080640

main94150-80640

18 parts on this diagram · 3 diagrams in section
