HEATING & AIR CONDITIONING - COMPRESSOR

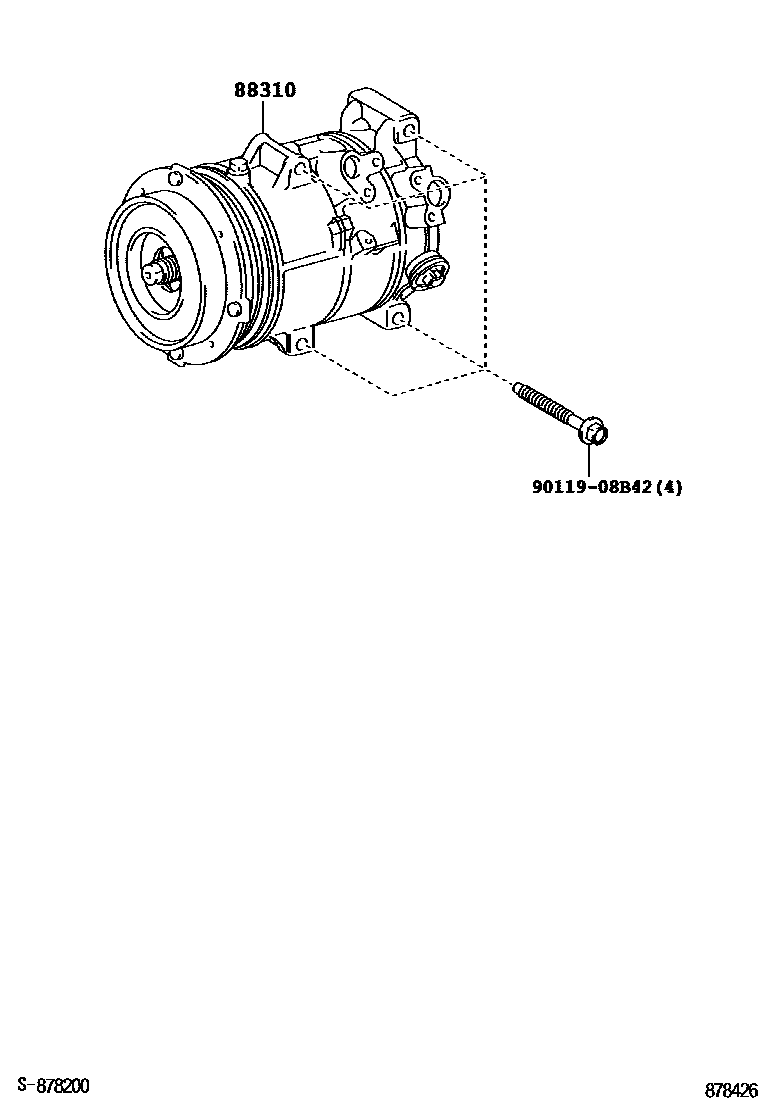

Parts diagram

88310COMPRESSOR ASSY, W/PULLEY

main88310-06260i200605-200903

main88310-06280i200608-200909

main88310-06370i200907

9011908B42

main90119-08B42

2 parts on this diagram · 3 diagrams in section
