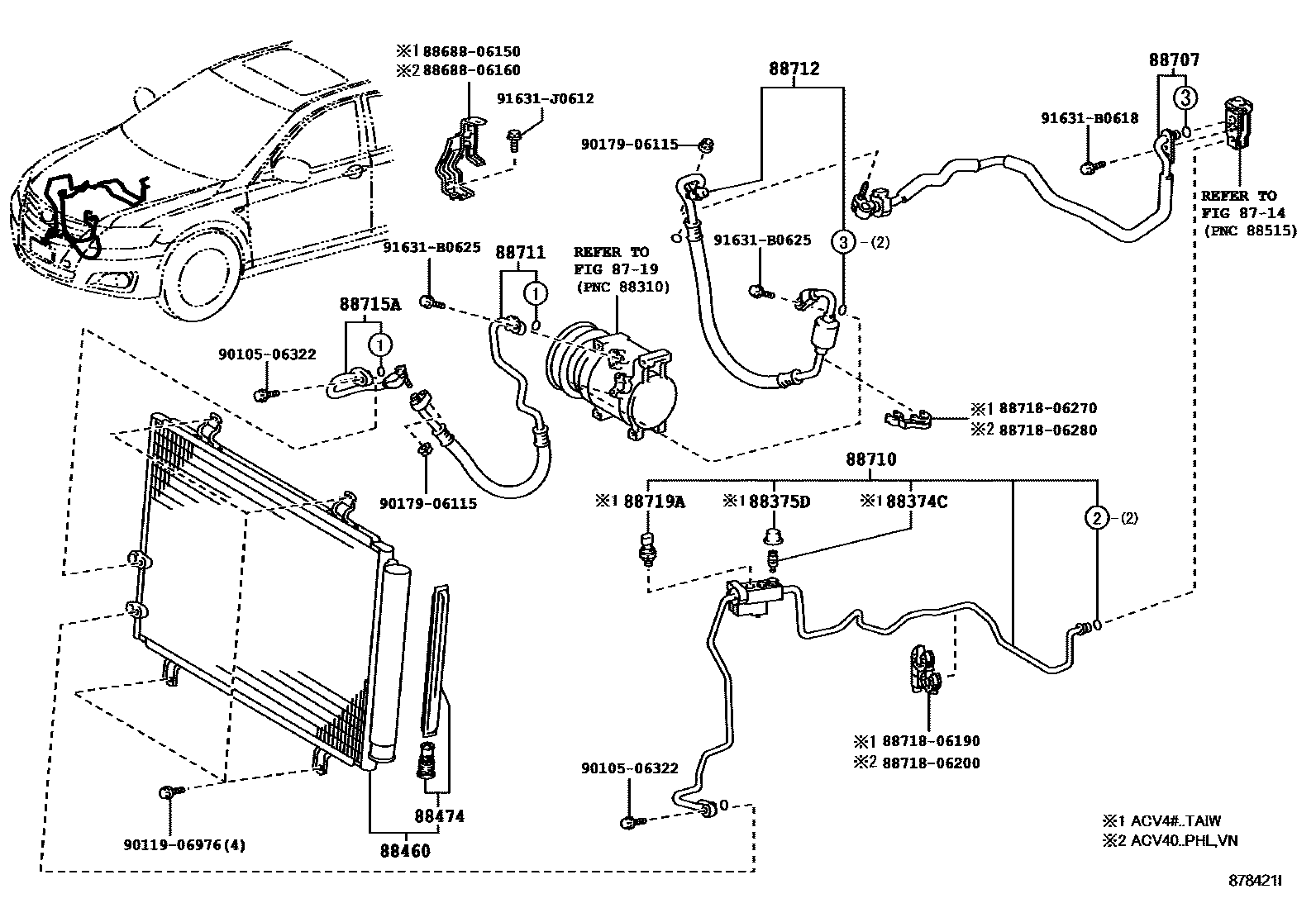

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1O-RING

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88374CVALVE, SERVICE, NO.2

main88374-30010iACV4#,GSV40..TAIW200605-200903

88375DCAP, SERVICE VALVE, NO.2

main88375-30280iACV4#,GSV40..TAIW200903-201112

88460CONDENSER ASSY, COOLER

main88460-06160iACV41..20G..TAIW200605-200709

main88460-06170iACV4#,GSV40..IDN,MA,PHL,TH; ACV40..24V..TH200608-200907

AIR CONDITIONER-DUAL AUTO A/C(DOP)

main88460-33120iAHV40200907

88474DRYER, COOLER

main88474-17010iACV4#,GSV40..IDN,MA,PHL,TH200605-200907

main88474-47020iAHV40200907

88707PIPE SUB-ASSY, SUCTION

main88707-06020iACV41..20G..TAIW200605-200709

main88707-06030iACV40,GSV40..PHL,VN200907

main88707-06040iACV4#,GSV40..RHD200608-200907

main88707-06100iAHV40200907

88710TUBE ASSY, AIR CONDITIONER

main88710-06210iACV41,GSV40..TAIW200605-200709

main88710-06211iACV4#,GSV40..TAIW200709-200903

main88710-06212iACV4#,GSV40..TAIW201003

main88710-06220iACV40,GSV40..VN200608-200909

main88710-06221iACV40,GSV40..PHL,VN201005

main88710-06230iACV4#,GSV40..RHD200608-200907

main88710-06231iACV4#,GSV40..RHD201005

main88710-06291iAHV40200907

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-06250iGSV40..TAIW200903

main88711-06260iACV4#..(20E,24E,24G)..TAIW200605-200903

main88711-06270iGSV40..IDN,PHL,TH200608-200907

main88711-06280iACV40..VN200608-200909

main88711-06381iAHV40200907

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-06100iGSV40..TAIW200903

main88712-06110iACV4#..(20E,24E,24G)..TAIW200605-200903

main88712-06120iGSV40..IDN,PHL,TH200608-200907

main88712-06130iACV40..VN200608-200909

main88712-06210iAHV40200907

88715APIPE, COOLER REFRIGERANT DISCHARGE, A

main88715-06040iACV41..20G..TAIW200605-200709

main88715-06041iACV4#,GSV40..TAIW201003

main88715-06050iACV4#,GSV40..IDN,MA,PHL,TH200608-200907

main88715-06051iACV4#,GSV40..IDN,MA,PHL,TH,VN201005

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-33020iACV4#,GSV40..TAIW200605-200903

8868806150BRACKET, COOLER DIAPHRAGM

main88688-06150

8868806160BRACKET, COOLER DIAPHRAGM

main88688-06160

8871806190PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-06190

8871806200PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-06200

8871806270PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-06270

8871806280PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-06280

9010506322

main90105-06322

9011906976

main90119-06976

9017906115

main90179-06115

91631B0618

main91631-B0618

91631B0625

main91631-B0625

91631J0612

main91631-J0612

24 parts on this diagram · 6 diagrams in section
