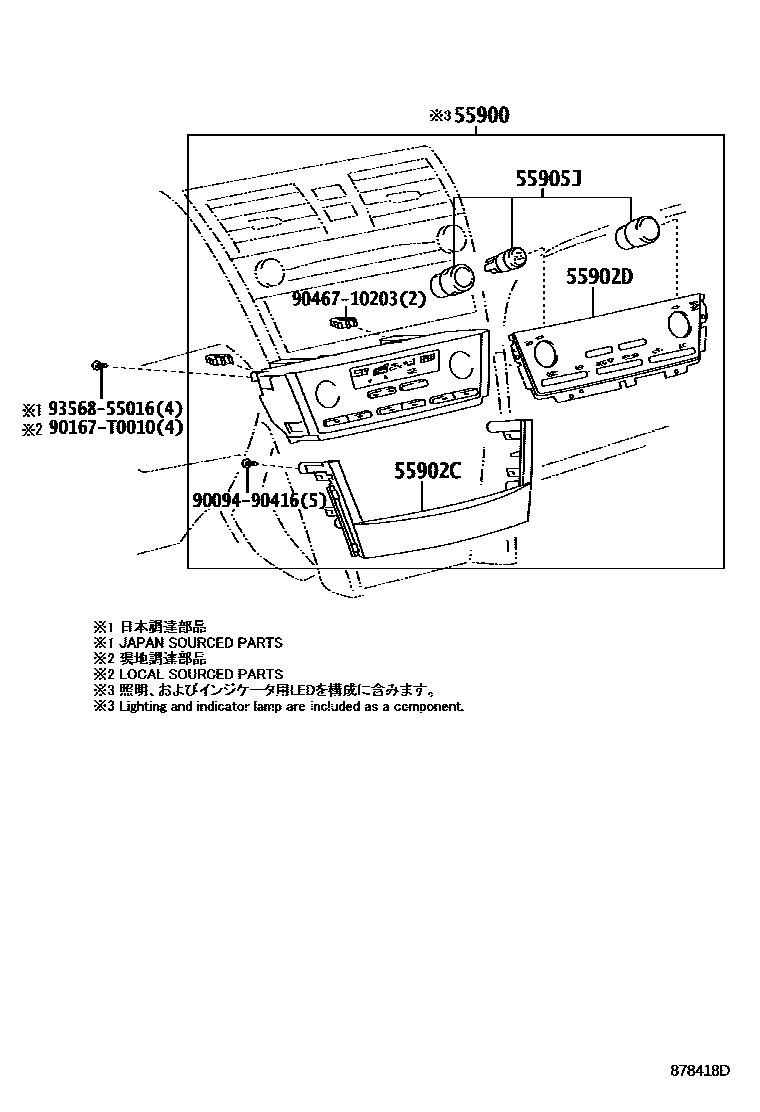

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1CONTROL PANEL 0002 1AIR DUCT 0003 1AIR DUCT 0004 1SENSOR 0005 1SENSOR

55900CONTROL ASSY, AIR CONDITIONER

main55900-33B60iACV4#,GSV40..LHD200605-200705

main55900-33B61iACV41..20G..TAIW200706-200709

main55900-33B62iACV40,GSV40..PHL200904-200907

main55900-33B70iACV4#,GSV40..RHD200608-200705

main55900-33B71iACV4#,GSV40..RHD200706-200903

main55900-33B72iACV4#,GSV40..RHD200904-200907

main55900-33C50iACV4#,GSV40..TAIW200903-200904

main55900-33C51iACV4#,GSV40..LHD200904

main55900-33D21iACV4#,AHV40,GSV40..RHD200907

55902CPANEL SUB-ASSY, AIR CONDITIONER

main55902-33850iACV41..RHD;ACV40,GSV40;ACV41..20E..TAIW200605-200903

main55902-33851iACV40,GSV40..VN200904-200909

55902DPANEL SUB-ASSY, AIR CONDITIONER

main55902-33830iACV4#,GSV40..LHD200904

main55902-33840iACV4#,GSV40..RHD200608-200903

main55902-33860iACV4#,GSV40..TAIW200903-200904

main55902-33890iACV4#,AHV40,GSV40..RHD200907

55905JKNOB SUB-ASSY, CONTROL

main55905-33220iACV4#,GSV40200605-200706

main55905-33240iACV40,GSV40..VN200706-200909

9009490416

main90094-90416

90167T0010

main90167-T0010

9046710203

main90467-10203

9356855016

main93568-55016

8 parts on this diagram · 5 diagrams in section
