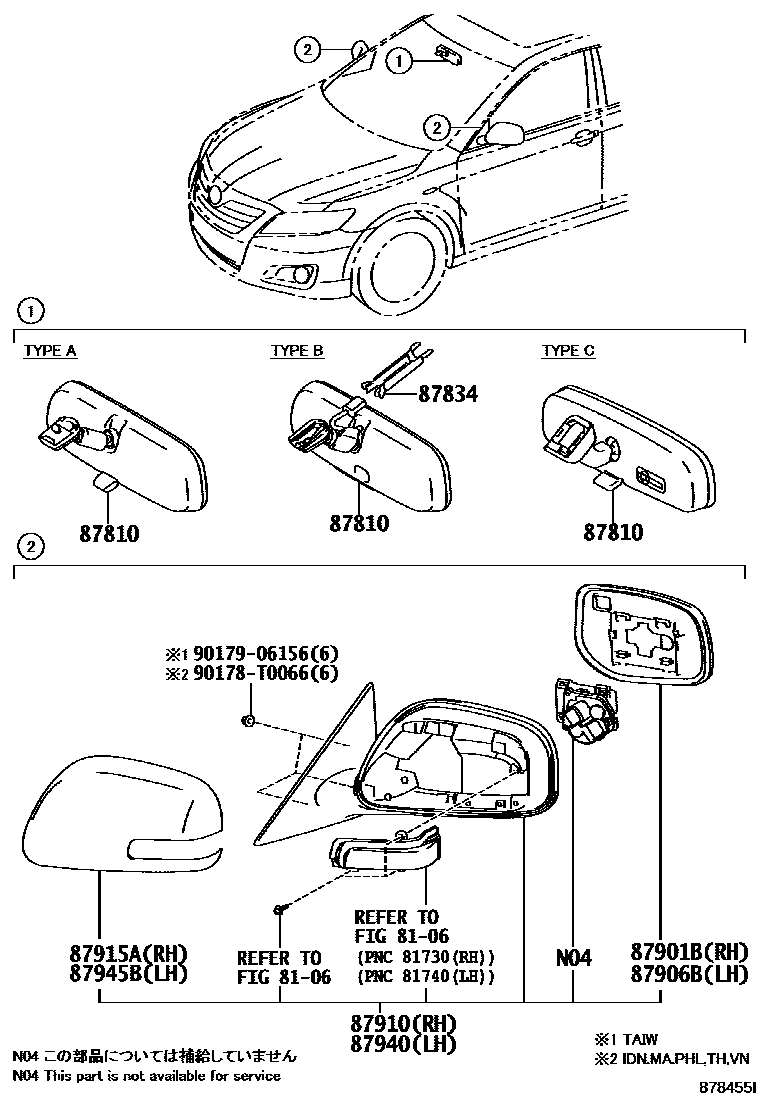

MIRROR

8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

→ Go to FIG 81-06

87810MIRROR ASSY, INNER REAR VIEW

main87810-06030iACV4#,GSV40..(20E,24E,24G,35V)..TAIW200605-200903

TYPE A:REFER ILLUST.

main87810-06070iACV40..24V..TH;GSV40..35Q..(IDN,TAIW,TH,VN)200605-200807

TYPE B:REFER ILLUST.

main87810-06071iGSV40..35Q..TAIW200807-200903

TYPE B:REFER ILLUST.

main87810-06100iGSV40..PHL;ACV40..IDN,MA,PHL,VN;ACV4#..(20,20E,20G,24G)..(MA,TH)200907

TYPE C:REFER ILLUST.

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87818-33010iACV40,AHV40..(24V,HBD)..TH;GSV40..35Q..(IDN,TAIW,TH,VN)200903

87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH

main87931-06231iACV40,GSV40..PHL200608-200907

main87931-06241iGSV40..VN200611-200909

main87931-06271iACV40..24V..TH; ACV40..IDN,MA;ACV4#..(20,20E,20G,24E,24G)..(MA,TH)200608-200907

SINGAPORE OR BRUNEI SPEC

main87931-06281iGSV40..RHD;ACV40..24V..TH200608-200907

main87931-8C007iACV41..20G..TAIW200605-200709

87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH

main87961-06231iGSV40..PHL;ACV40..PHL,VN200907-201207

main87961-06241iGSV40..VN200909-201207

main87961-06271iACV4#..RHD200907-201203

main87961-06281iGSV40..RHD;ACV40..24V..TH200608-200907

main87961-8C007iACV41..20G..TAIW200605-200709

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-06910iACV4#,GSV40..(20E,20G,24E,24G,35V)..TAIW200605-200903

PAINT REQ.

main87910-06911iGSV40..35Q..TAIW200903-201112

PAINT REQ.

main87910-06912iGSV40..PHL;ACV40..PHL,VN200907-201207

PAINT REQ.

main87910-06913iGSV40..VN200909-201207

PAINT REQ.

main87910-06914iACV40..24V..TH; ACV40..IDN,MA;ACV4#..(20,20E,20G,24E,24G)..(MA,TH)200608-200907

PAINT REQ.; PAINT REQ.,SINGAPORE OR BRUNEI SPEC

main87910-06915iAHV40,GSV40..RHD200907-201203

PAINT REQ.

main87910-06917iACV4#,GSV40..(20E,24E,24G,35V)..TAIW201004-201112

PAINT REQ.

87915ACOVER, OUTER MIRROR, RH

main87915-06901iACV4#,GSV40..TAIW200903

main87915-06903iACV40,GSV40..VN200608-200909

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-06910iACV4#,GSV40..(20E,20G,24E,24G,35V)..TAIW200605-200903

PAINT REQ.

main87940-06911iGSV40..35Q..TAIW200903-201112

PAINT REQ.

main87940-06912iGSV40..PHL;ACV40..PHL,VN200907-201207

PAINT REQ.

main87940-06913iGSV40..VN200909-201207

PAINT REQ.

main87940-06914iACV40..24V..TH; ACV40..IDN,MA;ACV4#..(20,20E,20G,24E,24G)..(MA,TH)200608-200907

PAINT REQ.; PAINT REQ.,SINGAPORE OR BRUNEI SPEC

main87940-06915iAHV40,GSV40..RHD200907-201203

PAINT REQ.

main87940-06916iACV4#,GSV40..(20E,24E,24G,35V)..TAIW201004-201112

PAINT REQ.

87945BCOVER, OUTER MIRROR, LH

main87945-06901iACV4#,GSV40..(20E,24E,24G,35Q,35V)..TAIW200605-200903

main87945-06903iACV40,GSV40..VN200608-200909

90178T0066

main90178-T0066

9017906156

main90179-06156

11 parts on this diagram · 1 diagram in section
