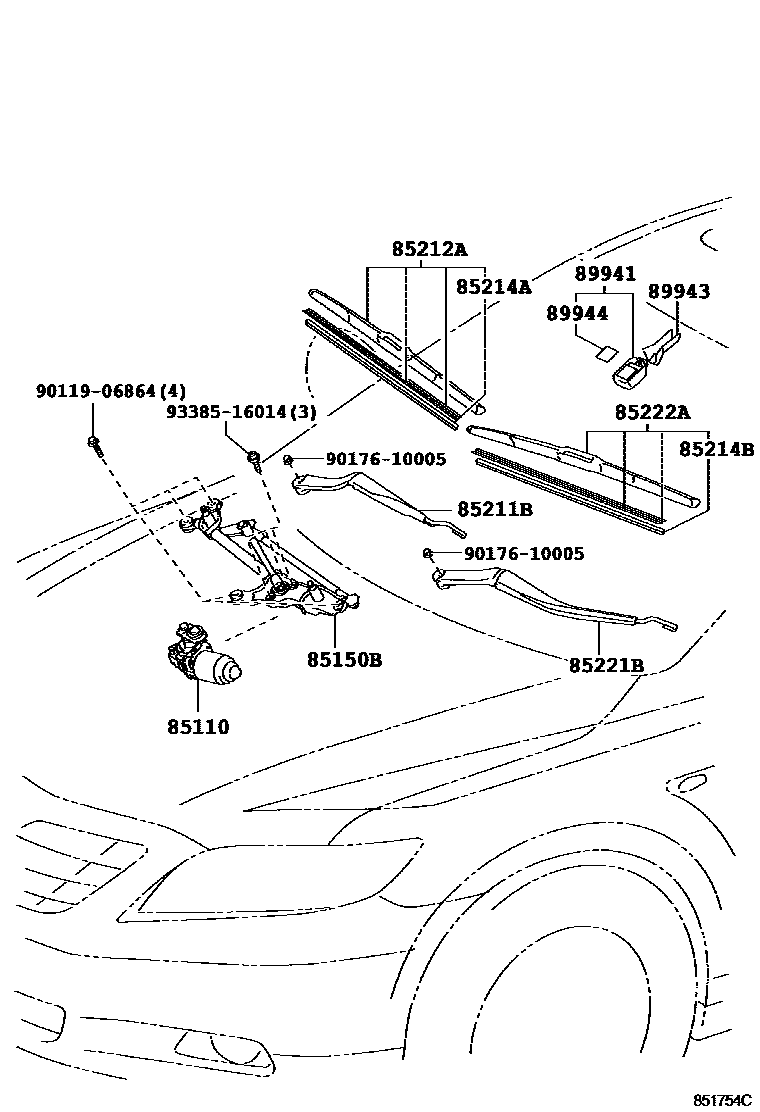

WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-06070iACV4#,GSV40..(20E,24E,24G,35Q,35V)..TAIW200605-200903

main85110-06080iACV4#,GSV40..RHD200608-200907

85150BLINK ASSY, WIPER

main85150-06070iACV4#,GSV40..(20E,24E,24G,35Q,35V)..TAIW200605-200903

main85150-06080iACV4#,GSV40..RHD200608-200907

85211BARM, FRONT WIPER, RH

main85211-06060iACV40,GSV40..VN200605-200909

main85211-06070iACV4#,AHV40,GSV40..RHD200907

85212ABLADE, FR WIPER, RH

main85212-33240iACV4#,GSV40..RHD200608-200907

main85212-53080iACV4#,GSV40..LHD200605-200701

main85212-53081iACV40..TAIW200701-200903

85214ARUBBER, WIPER, RH

main85214-30380iACV4#,AHV40,GSV40..RHD200907

main85214-53090iACV4#,GSV40..LHD200903

85214BRUBBER, WIPER, LH

main85214-30380iACV41..20G..TAIW200605-200709

main85214-53090iACV4#,GSV40..RHD200608-200907

85221BARM, FRONT WIPER, LH

main85221-06060iACV41..20G..TAIW200605-200709

main85221-06070iACV4#,GSV40..RHD200608-200907

85222ABLADE, FR WIPER, LH

main85222-33250iACV40,GSV40..VN200605-200909

main85222-53060iACV4#,AHV40,GSV40..RHD200907

89941SENSOR, RAIN

main89941-42010iGSV40..35Q..TAIW200605-200903

89943COVER, RAIN SENSOR

main89943-42010iACV40..24V..(IDN,TH);ACV41,GSV40..IDN,PHL,TH200605-200907

89944TAPE, RAIN SENSOR

main89944-42010iGSV40..35Q..TAIW200605-200903

9011906864

main90119-06864

9017610005

main90176-10005

9338516014

main93385-16014

14 parts on this diagram · 1 diagram in section
