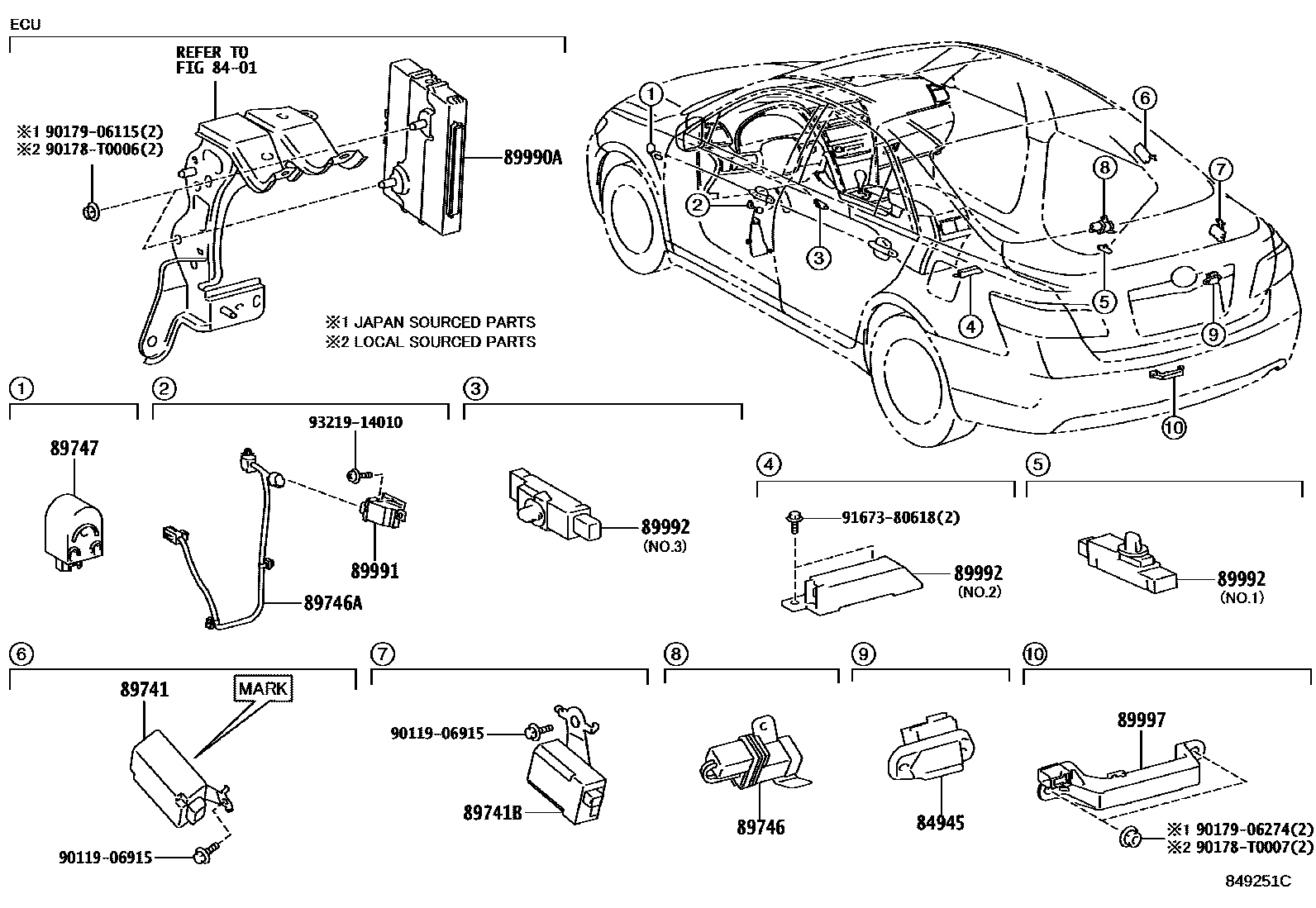

WIRELESS DOOR LOCK

0001 1 0002 1

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

84945SWITCH, LUGGAGE ELECTRICAL KEY

main84945-33010iGSV40..IDN,PHL,TH;ACV40..24V..(IDN,TH)200605-200907

89741RECEIVER, DOOR CONTROL

main89740-33030iACV40..24G..TAIW200605-200710

MARK=89740-33030

main89740-33031iGSV40..VN200710-200909

MARK=89740-33031

main89740-33070iACV40,GSV40..(24V,35Q)..TH200608-200907

MARK=89740-33070

main89740-33071iACV40,AHV40,GSV40..(24V,35Q,HBD)..(MA,PHL,TH)201007-201203

MARK=89740-33071

main89741-06050iACV4#..(20,24G)..(IDN,PHL,TH)200907-201203

MARK=89741-06050

main89741-33450iACV4#..MA200608-200907

MARK=89741-33450

main89741-33460iACV41..MA200907-201203

MARK=89741-33460

main89741-33480iACV40..LHD..(24E,24V);ACV41..(20,20E)..(TAIW,TH);ACV40..(24E,24G)..(IDN,PHL,TH,VN)200605-200805

MARK=89741-33480

main89741-33481iACV40..24V..PHL;ACV4#..(20,24E,24G)..(IDN,PHL,TH)200806-200907

MARK=89741-33481

89741BRECEIVER, DOOR CONTROL, NO.2

main89740-33040iGSV40..PHL200605-200612

main89740-33080iACV40,GSV40..(24V,35Q)..TH200608-200907

89746FILTER, WIRELESS DOOR LOCK

main89746-33090iACV40..(24E,24G)..(PHL,TH,VN)200605-200702

89746AHARNESS, ELECTRICAL KEY WIRE

main89746-33010iACV40,GSV40..(24V,35Q)..(IDN,TH)200608-200907

main89746-33020iGSV40..PHL200605-200907

89747BUZZER, WIRELESS DOOR LOCK

main89747-48020iACV41..20G..TAIW200605-200709

89990ACOMPUTER ASSY, SMART KEY

main89990-33020iGSV40200605-200606

main89990-33021iACV40,GSV40..(24G,35Q,35V)..TAIW200606-200710

main89990-33070iACV40,GSV40..(24G,35Q,35V)..TAIW; ACV40..24E..TAIW200710-200903

TW 2.4E SE PACKAGE

main89990-33130iACV40,GSV40..(24G,35Q,35V)..TAIW; ACV40..24E..TAIW200903-200906

TW 2.4E SE PACKAGE

main89990-33131iACV40..24E; ACV40..24G..TAIW;ACV40,AHV40,GSV40..(24V,35Q,35V,HBD)..(IDN,PHL,TAIW,TH,VN)200907-201106

TW 2.4E SE PACKAGE

main89990-33132iACV40..24E; ACV40..24G..TAIW;ACV40,AHV40,GSV40..(24V,35Q,35V,HBD)..(IDN,PHL,TAIW,TH,VN)201107

TW 2.4E SE PACKAGE

main89990-33151iACV40..MA200907-201006

main89990-33152iACV40..MA201007-201105

main89990-33153iACV40..MA201106

89991OSCILLATOR, DOOR ELECTRICAL KEY

main89991-30040iGSV40..LHD;ACV40..24G..TAIW200605-200909

main89991-30050iACV40,AHV40,GSV40..RHD..(24V,35Q,HBD)200907

89992OSCILLATOR, INDOOR ELECTRICAL KEY

main89992-33030iACV40,GSV40..(24G,35Q,35V)..TAIW200605-200903

NO.2

main89992-33040iACV4#..(20E,24E)..TAIW200605-200903

NO.2

main89992-33060iGSV40..VN200605-200909

NO.1

main89992-42010iACV40..24E..TAIW; ACV40..24G..TAIW;ACV40,AHV40,GSV40..24V,35Q,35V,HBD200903

NO.3; TW 2.4E SE PACKAGE,NO.3

89997ANTENNA, ELECTRICAL KEY

main89997-30070iACV40..24E; ACV40..24G..TAIW;ACV40,AHV40,GSV40..24V,35Q,35V,HBD201009

TW 2.4E SE PACKAGE

main89997-41010iGSV40..IDN,PHL,TH;ACV40..24V..(IDN,TH)200605-200907

9011906915

main90119-06915

90178T0006

main90178-T0006

90178T0007

main90178-T0007

9017906115

main90179-06115

9017906274

main90179-06274

9167380618

main91673-80618

9321914010

main93219-14010

18 parts on this diagram · 2 diagrams in section
