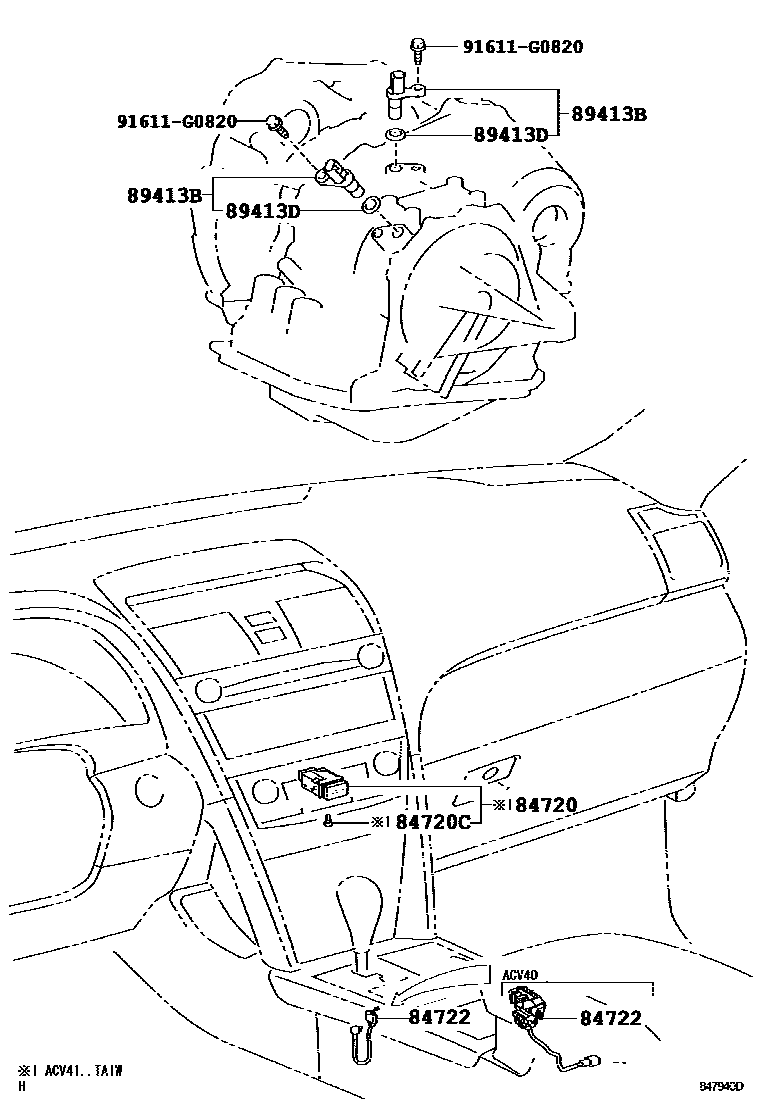

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

0001 1 0002 1 0003 1

84720SWITCH ASSY, PATTERN SELECT

main84720-06010iACV41..TAIW200605-200903

main84720-33070iACV41..RHD200608-200907

84720CBULB(FOR PATTERN SELECT SWITCH)

main90010-01121iACV41..20G..TAIW200605-200907

14V 0.63W

84722SWITCH, TRANSMISSION CONTROL

main84722-06110iACV41..TAIW200605-200903

main84722-06120iACV40,GSV40..LHD200605-200909

89413BSENSOR, TRANSMISSION REVOLUTION

main89413-24010iACV40..24E..TAIW;ACV4#..20,20E,20G,24G,24V200605-200909

main89413-33030iGSV40200605-200909

89413DRING, O(FOR TRANSMISSION REVOLUTION SENSOR)

main90301-11008iACV41..20G..TAIW200605-200909

91611G0820

main91611-G0820

6 parts on this diagram · 3 diagrams in section
