CRUISE CONTROL (AUTO DRIVE)

0001 1 0002 1

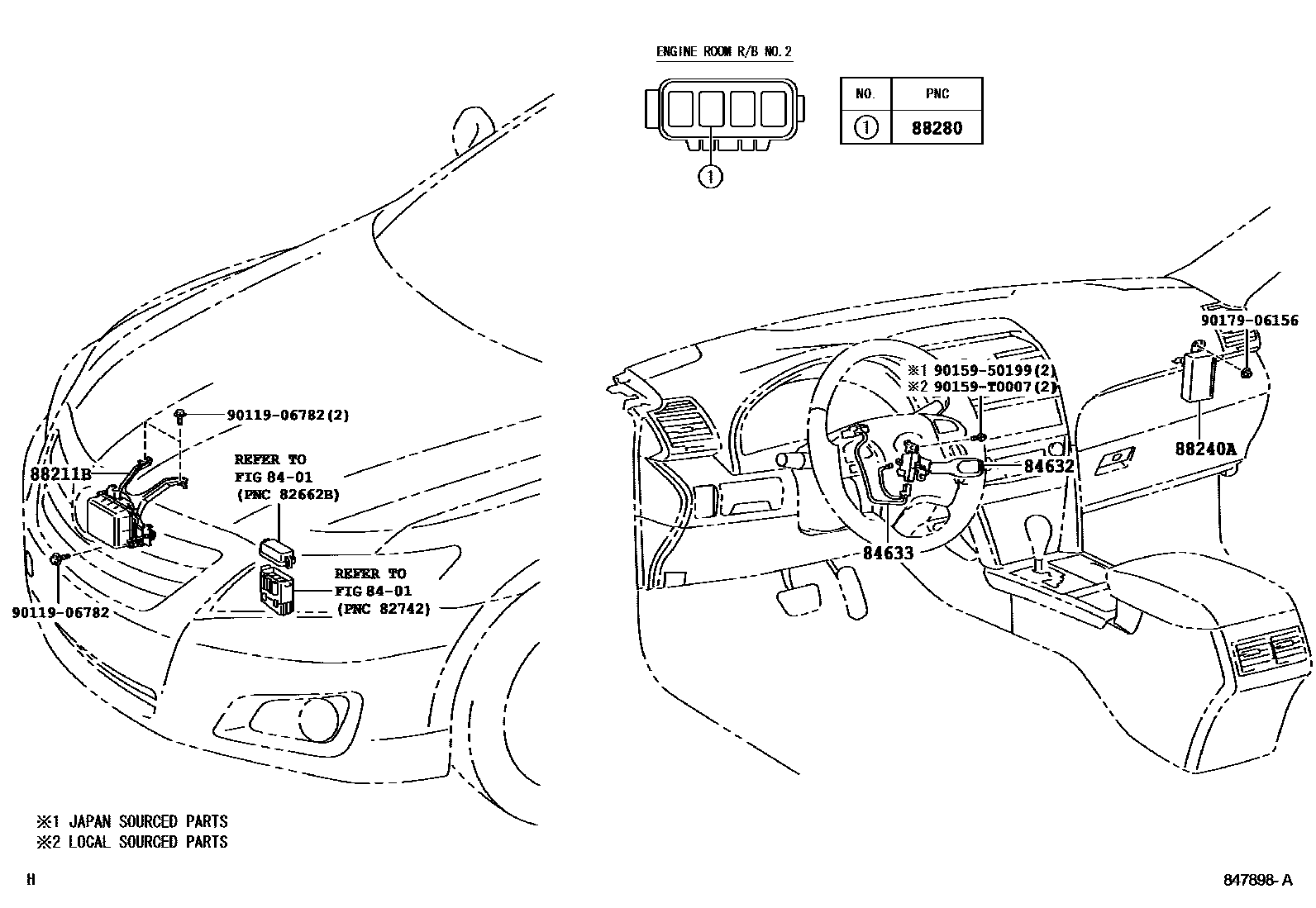

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

84632SWITCH, CRUISE CONTROL MAIN

main84632-34011supersedes 84632-58011iGSV40..IDN,PHL;ACV40..24G..(TAIW,TH);ACV4#,AHV40,GSV40..20,20G,24V,35V,HBD200903

main84632-58011iGSV40..35Q..TAIW200605-200903

84633WIRE, CRUISE CONTROL SWITCH

main84633-48010iGSV40..35Q..(TAIW,TH)200903

main84633-48020supersedes 84633-48010iGSV40..IDN,PHL;ACV40..24G..(TAIW,TH);ACV4#,AHV40,GSV40..20,20G,24V,35V,HBD200903

88211BSENSOR ASSY, MILLIMETER WAVE RADAR

main88210-33010iGSV40..TH200608-200907

main88210-33030iGSV40..35Q..(TAIW,TH)200903

88240ACOMPUTER ASSY, DISTANCE CONTROL

main88240-33250iGSV40..35Q..TAIW200903

main88240-33240iGSV40..TH200608-200907

PRE-COLLISION SYSTEM-W/O

88280RELAY ASSY, CRUISE CONTROL(AUTO DRIVE), B

main90987-04004iGSV40..35Q..TAIW200605-200903

9011906782

main90119-06782

9015950199

main90159-50199

90159T0007

main90159-T0007

9017906156

main90179-06156

10 parts on this diagram · 2 diagrams in section
