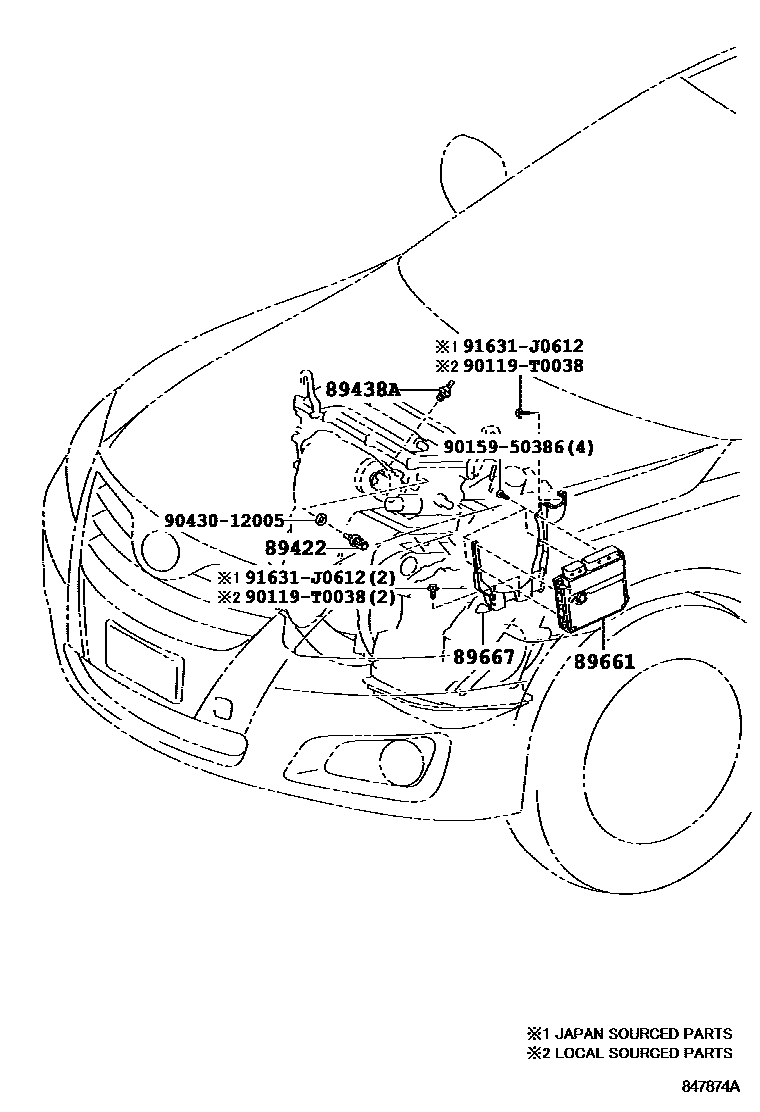

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iACV4#,GSV40200605-200909

89438ASWITCH, POWER STEERING OIL PRESSURE

main89438-33010iACV4#,GSV40200605-200909

89661COMPUTER, ENGINE CONTROL

main89661-06D00iGSV40..PHL200907

main89661-06D10iGSV40..35Q..TAIW200605-200710

main89661-06D40iACV41..20E..TAIW200605-200710

main89661-06D50iACV41..RHD200907

main89661-06D70iACV40..VN200608-200909

main89661-06E10iGSV40..35V200903

main89661-06G80iGSV40..35Q..TAIW200903

main89661-06K00iACV41..TAIW201005

main89661-06K10iACV40..TAIW201005

main89666-06260iACV41..TAIW200903-201005

main89666-06270iACV40..TAIW200903-201005

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-33140iGSV40..TAIW200605-200903

main89667-33170iGSV40..RHD200608-200907

main89667-33180iACV40..VN200605-200909

90119T0038

main90119-T0038

9015950386

main90159-50386

9043012005

main90430-12005

91631J0612

main91631-J0612

8 parts on this diagram · 2 diagrams in section
