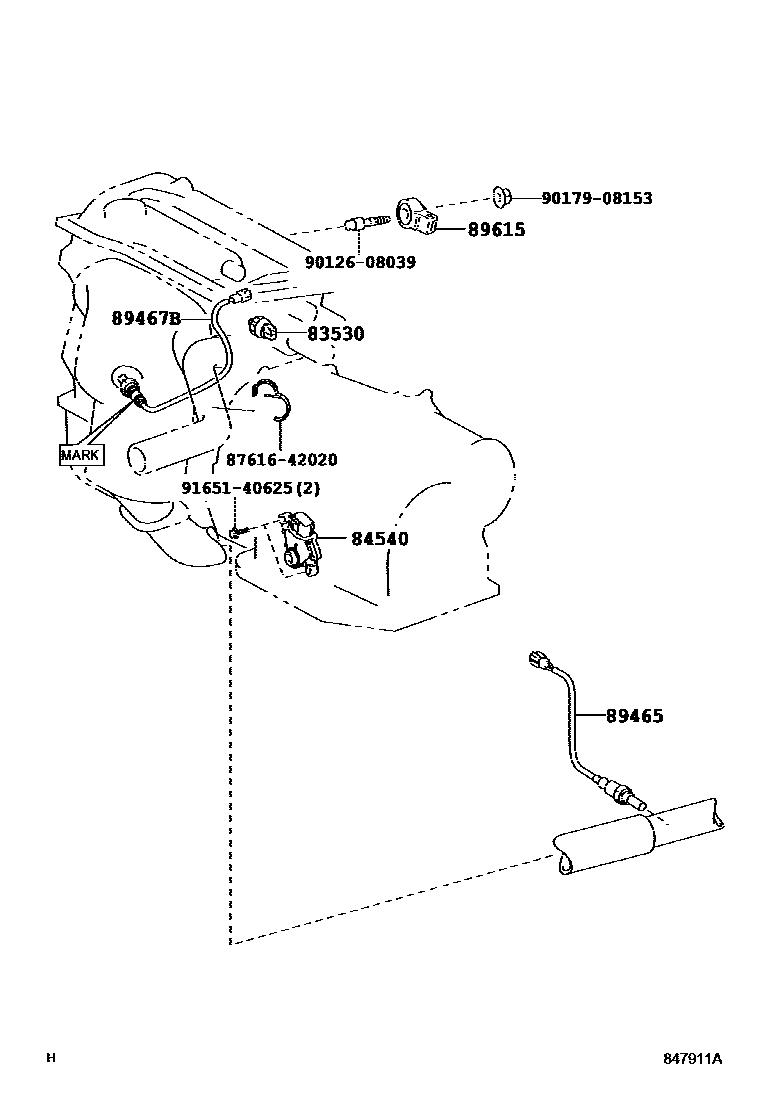

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iACV41..20G..TAIW200605-200909

DENSO

main83530-60020iACV41..20G..TAIW200605-200909

YAZAKI

84540SWITCH ASSY, NEUTRAL START

main84540-33010iGSV40200605-200909

main84540-48010iACV4#200605-200909

89465SENSOR, OXYGEN

main89465-06210iGSV40..IDN,PHL,TH200605-200909

LH

main89465-06220iGSV40..VN200605-200909

RH

main89465-06230iACV41..20G..TAIW200605-200909

89467BSENSOR, AIR FUEL RATIO

main89467-33080iACV4#200605-200909

main89467-33080iACV40..24E..TAIW;ACV4#..20,20E,20G,24G,24V200903-201006

MARK 89467-33080

main89467-33090iGSV40200605-200708

LH

main89467-33130iGSV40200605-200708

RH

main89467-33160iACV4#201006

MARK 89467-33160

main89467-33170iGSV40200708-200909

LH

main89467-33180iGSV40200708-200909

RH

main89467-33190iAHV40200907

89615SENSOR, KNOCK CONTROL

main89615-20090iGSV40200605-200909

8761642020CLAMP, COOLING UNIT CASE

main87616-42020

9012608039

main90126-08039

9017908153

main90179-08153

9165140625

main91651-40625

9 parts on this diagram · 17 diagrams in section
