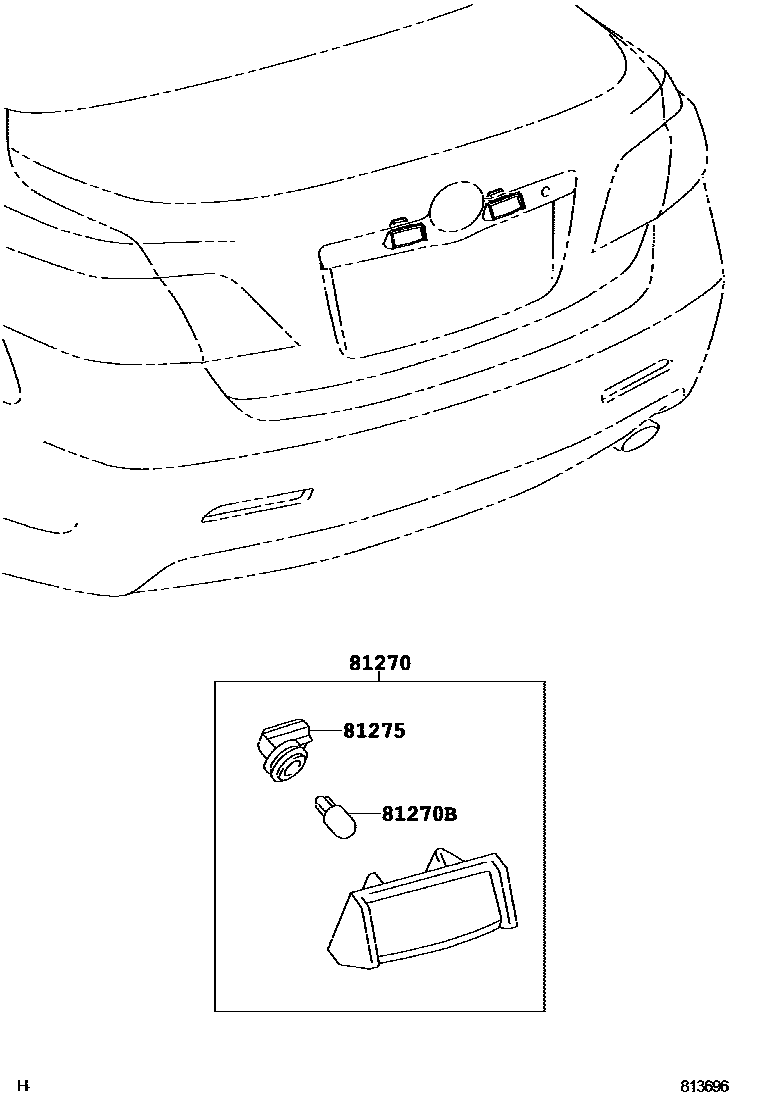

REAR LICENSE PLATE LAMP

0001 1 0002 1 0004 1

81270LAMP ASSY, LICENSE PLATE

main81270-06040×2iACV41..20G..TAIW200605-200709

main81270-06050×2iACV4#,GSV40..IDN,MA,PHL,TH200608-200611

main81270-06052×2iACV4#,GSV40..IDN,MA,PHL,TH200612-200907

81270BBULB (FOR LICENSE PLATE LAMP)

main90084-98043×2iACV4#,GSV40..IDN,MA,PHL,TH,VN200608-200612

12V 5W

main99132-12050×2iACV4#,GSV40..IDN,MA,PHL,TH200612-200907

12V 5W

81275SOCKET AND WIRE, LICENSE PLATE LAMP

main81275-12501×2iACV4#,GSV40..(20E,24E,24G,35Q,35V)..TAIW200605-200903

main90075-99005×2iACV40,GSV40..VN200608-200909

3 parts on this diagram · 3 diagrams in section
