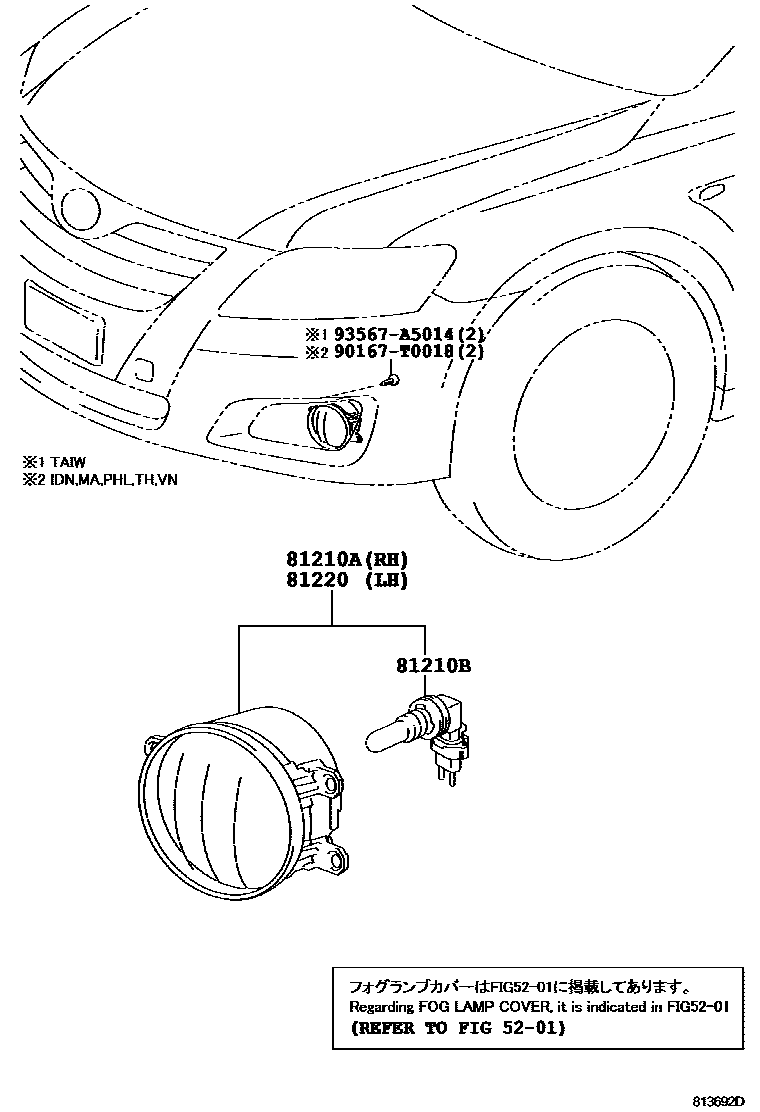

FOG LAMP

81210ALAMP ASSY, FOG, RH

main81210-02120iACV4#,GSV40..IDN,MA,PHL,TH,VN200901-200909

main81210-02121iACV4#,AHV40,GSV40..IDN,MA,PHL,TH,VN201007

main81210-02130iACV4#,GSV40..TAIW200903

main81210-0D040iACV4#,GSV40200605-200611

main81210-0D041iACV4#,GSV40..(20E,24E,24G,35Q,35V)..TAIW200612-200812

81210BBULB, FOG LAMP

main90981-13075×2iACV40..24E..TAIW;ACV4#,AHV40,GSV40..20,20E,20G,24G,24V,35Q,35V,HBD200903-201207

12V 55W,HALOGEN

main90981-13081iACV4#,GSV40200612-200901

12V 55W,HALOGEN

81220LAMP ASSY, FOG, LH

main81220-02120iACV4#,GSV40..IDN,MA,PHL,TH,VN200901-200909

main81220-02121iACV4#,AHV40,GSV40..IDN,MA,PHL,TH,VN201007

main81220-02130iACV4#,GSV40..TAIW200901-200903

main81220-0D040iACV40,GSV40..VN200605-200612

main81220-0D041iACV41..20G..TAIW;ACV4#,GSV40..IDN,MA,PHL,TH,VN200612-200901

90167T0018

main90167-T0018

93567A5014

main93567-A5014

5 parts on this diagram · 1 diagram in section
