ACCELERATOR LINK

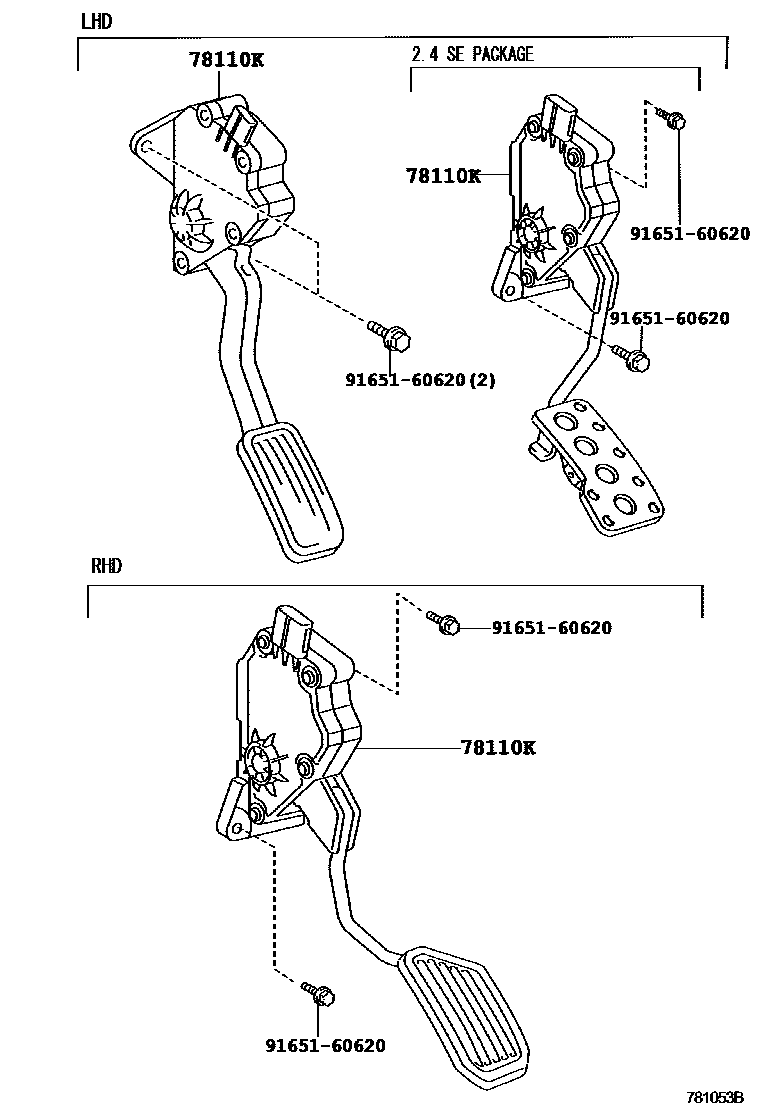

Parts diagram

78110KROD ASSY, ACCELERATOR PEDAL(W/SENSOR)

main78110-06030i201001-201009

main78110-06031i201010-201101

main78110-33010i200907-200912

main78110-33011i201101-201105

main78110-33020i200903-201009

main78110-33110i201010

main78110-33060i200903-201009

TW 2.4E SE PACKAGE

main78110-33120i201010

TW 2.4E SE PACKAGE

9165160620

main91651-60620

2 parts on this diagram · 1 diagram in section
