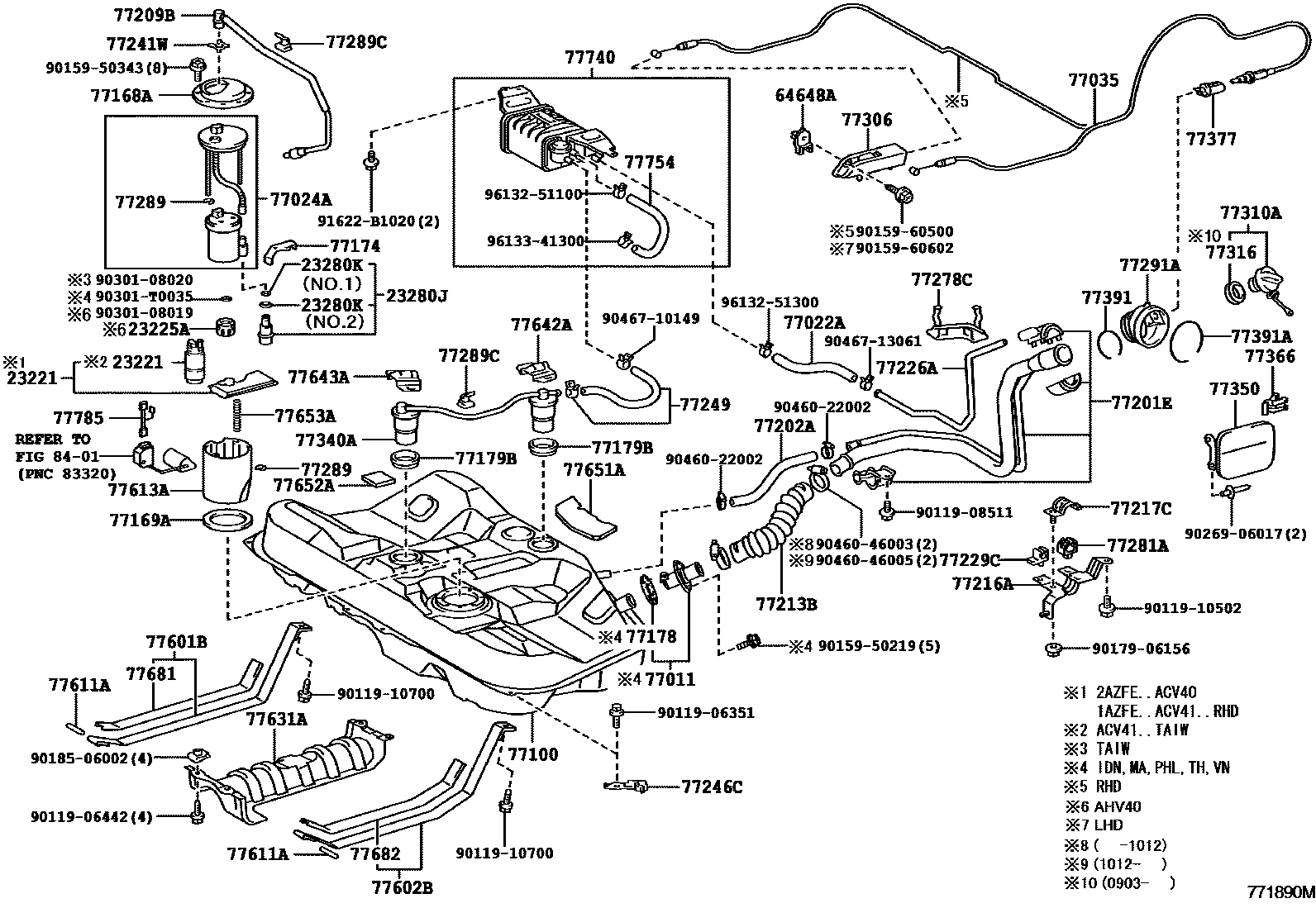

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TANK 0003 1FUEL TUBE 0004 1FUEL TUBE

23221PUMP, FUEL

main23220-0H070i2AZFE..ACV40200608-200708

main23220-0H071i2AZFE..ACV40..IDN,MA,PHL,TH,VN200709-200909

sub23220-0H072

main23220-0H080i1AZFE..ACV41..RHD200608-200708

main23220-0H081i1AZFE..ACV41..RHD200709-200907

sub23220-0H082

main23220-0H090i1AZFE..ACV41..TAIW200605-200708

main23220-0H091i1AZFE..ACV41..TAIW200709-200903

sub23220-0H092

main23220-0H151i2AZFE..ACV40..TAIW200903-201112

sub23220-0H152

main23220-28220i2AZFXE..AHV40200907-201203

main23221-20030i2GRFE..GSV40200903-201207

23225ASPACER, FUEL PUMP

main23225-23010i2AZFXE..AHV40200907-201203

23280JREGULATOR ASSY, FUEL PRESSURE

main23280-20060i2GRFE..GSV40..VN200605-200909

main23280-21010i2AZFE..ACV40..VN200605-200909

23280KRING, O(FOR FUEL PRESSURE REGULATOR)

main90301-04013i1AZFE,2AZFE..ACV4#..(20E,24E,24G)..TAIW200605-200903

NO.1

main90301-07020i2GRFE..GSV40..IDN,PHL,TH200605-200907

main90301-15024i2AZFE..ACV40..24E..TAIW;1AZFE,2AZ#..ACV4#,AHV40..20,20E,20G,24G,24V,HBD200903-201207

NO.2

64648AGROMMET, LUGGAGE DOOR LOCK OPENER

main64648-12020iACV41..20G..TAIW200605-200709

77011PIPE SUB-ASSY, FUEL TANK FILLER, LOWER

main77011-02040iACV4#,AHV40,GSV40..IDN,MA,PHL,TH,VN200907

77022AHOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)

main95333-08030iACV41..20G..TAIW200605-200709

*H,L=240

77024APLATE SUB-ASSY, FUEL SUCTION

main77024-06050iGSV40..IDN,PHL,TH,VN200907

main77024-06070iACV4#..IDN,MA,PHL,TH200709-200907

main77024-06100iGSV40..TAIW200605-200903

main77024-06110iACV41..TAIW200605-200708

main77024-06130iAHV40200907

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-06100iACV4#,GSV40..RHD200907

main77035-06120iACV4#,GSV40..TAIW200903

main77035-06130iACV40,GSV40..VN200608-200909

main77035-06170iAHV40200907

77100TANK ASSY, FUEL

main77001-06070iACV4#,GSV40..IDN,MA,PHL,TH,VN200608-200710

main77001-06071iACV4#,GSV40..IDN,MA,PHL,TH,VN200907

main77001-06150iACV4#,GSV40..TAIW200711-200903

main77001-06160iAHV40200907

main77001-33130iACV4#,GSV40..(20E,24E,24G,35Q,35V)..TAIW200605-200710

sub77001-33151

77168APLATE, FUEL TANK VENT TUBE SET

main77168-33050iACV41..20G..TAIW200605-200709

main77168-52010iAHV40200907

77169AGASKET, FUEL SUCTION TUBE SET

main77169-33020iACV4#..IDN,MA,PHL,TH,VN200709-200710

main77169-33030iACV40..VN200710-200909

77174SUPPORT, FUEL SUCTION, NO.1

main77174-06030iACV4#200605-200708

main77174-33030iAHV40200907

77178GASKET, FUEL TANK FILLER PIPE, LOWER

main77178-0A010iACV4#,GSV40..IDN,MA,PHL,TH200608-200907

77179BGASKET, FUEL TANK EVAPORATION VENT TUBE

main77179-33010×2iACV41..20G..TAIW200605-200709

77201EPIPE SUB-ASSY, FUEL TANK FILLER

main77201-06100iACV41..20G..TAIW200605-200709

main77201-06110iACV4#,GSV40..IDN,MA,PHL,TH200608-200907

sub77201-06111

sub77300-12020

77202AHOSE, FUEL, NO.1 (FOR BREATHER TUBE)

main95313-13024iACV41..20G..TAIW200605-200709

L=240

77209BTUBE SUB-ASSY, FUEL PUMP

main77209-33040iACV41..20G..TAIW200605-200709

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-06030iACV41..20G..TAIW200605-200709

L=224

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77216-06070iACV41..20G..TAIW200605-200709

main77216-06080iACV4#,GSV40..IDN,MA,PHL,TH200608-200907

77217CSUPPORT, FUEL TANK FILLER PIPE, NO.2

main77217-06060iACV4#,GSV40..(20E,24E,24G,35Q,35V)..TAIW200605-200903

main77217-06070iACV40,GSV40..VN200608-200909

77226ATUBE, FUEL TANK BREATHER, NO.6

main77226-06070iACV4#,GSV40..(20E,24E,24G,35Q,35V)..TAIW200605-200903

main77226-33040iACV40,GSV40..VN200608-200909

77229CCLAMP, BREATHER TUBE

main77229-33090iACV40,GSV40..VN200605-200909

77241WCLIP, TUBE JOINT

main77241-33011iACV41..20G..TAIW200605-200709

77246CSUPPORT, FUEL MAIN TUBE

main77246-33020iACV41..20G..TAIW200605-200709

77249HOSE, FUEL EMISSION

main77249-06040iACV41..20G..TAIW200605-200709

77278CPROTECTOR, FUEL TANK FILLER PIPE, NO.2

main77278-33030iACV40..24E..TAIW;ACV4#,AHV40,GSV40..20,20E,20G,24G,24V,35Q,35V,HBD200903

77281BRACKET, FUEL MAIN TUBE, NO.1

main77281-06050iACV4#,GSV40..IDN,MA,PHL,TH200608-200907

main77281-33030iACV4#,GSV40..TAIW200903

77281ACLAMP, FUEL FILLER PIPE

main77281-48030iACV40..24E..TAIW;ACV4#,AHV40,GSV40..20,20E,20G,24G,24V,35Q,35V,HBD200903

77289HOLDER, FUEL TANK PIPE SETTING

main77289-06070×3iACV40..VN200709-200909

main77289-52090×3iACV41..TAIW200709-200903

77289CCLAMP, FUEL TUBE, NO.4

main90464-00745×3iACV41..20G..TAIW200605-200709

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-06050iACV40,GSV40..VN200608-200909

main77291-06090iACV4#,GSV40..TAIW200903

77306LEVER SUB-ASSY, FUEL LID LOCK OPEN

main64606-06060iACV4#,AHV40,GSV40..RHD200907

main64606-06070iACV4#,GSV40..TAIW200903

main64606-33030iACV40,GSV40..PHL,VN200907

77310ACAP ASSY, FUEL TANK

main77300-52030iACV4#,GSV40..(20E,24E,24G,35Q,35V)..TAIW200605-200903

77316GASKET, FUEL TANK CAP

main77316-52040iACV40..24E..TAIW;ACV4#,AHV40,GSV40..20,20E,20G,24G,24V,35Q,35V,HBD200903-201206

77340AVALVE ASSY, FUEL CUT OFF W/TUBE

main77340-33020iACV41..20G..TAIW200605-200709

77350LID ASSY, FUEL FILLER OPENING

main77350-06040iACV4#,GSV40..TAIW200903

main77350-06050iACV4#,AHV40,GSV40..IDN,MA,PHL,TH,VN200907

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-33030iACV4#,GSV40..(20E,24E,24G,35Q,35V)..TAIW200605-200903

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-06020iACV4#,GSV40..IDN,MA,PHL,TH200608-200907

main77377-06030iACV4#,GSV40..TAIW200903

77391RING, FUEL INLET BOX

main77391-12020iACV4#,GSV40..(20E,24E,24G,35Q,35V)..TAIW200605-200903

77391ARING, FUEL INLET BOX

main77391-06030iACV40,GSV40..VN200608-200909

main77391-33030iACV4#,AHV40,GSV40201112-201206

(J)

77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH

main77601-06010iACV4#,GSV40..IDN,MA,PHL,TH200605-200907

main77601-06050iAHV40200907

77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH

main77602-06010iACV41..20G..TAIW200605-200709

main77602-06050iAHV40200907

77611APIN (FOR FUEL TANK BAND)

main90250-08019×2iACV40..24E..TAIW;ACV4#,AHV40,GSV40..20,20E,20G,24G,24V,35Q,35V,HBD200903

77613ABRACKET, FUEL TANK BAND, NO.1

main77613-06020iACV40..TAIW200605-200903

main77613-33040iAHV40200907

77631APROTECTOR, FUEL TANK, LOWER CENTER

main77631-33040iACV41..20G..TAIW200605-200709

main77631-33041iACV40,GSV40..VN200805-200909

main77631-33060iAHV40200907

sub77631-33090

main77631-33080iACV4#,GSV40201011

77642APROTECTOR, FUEL TANK, NO.2

main77642-33010iACV4#..TAIW200903-200904

main77642-33040iACV40..24E..TAIW;ACV4#,AHV40,GSV40..20,20E,20G,24G,24V,35Q,35V,HBD200904-201206

77643APROTECTOR, FUEL TANK, NO.3

main77643-33010iACV4#,GSV40200605-200903

main77643-33030iACV4#,GSV40..IDN,MA,PHL,TH,VN200904-200909

77651ACUSHION, FUEL TANK, NO.1

main77651-12070×7iAHV40200907

main77651-33020iACV40,GSV40..VN200605-200909

77652ACUSHION, FUEL TANK, NO.2

main77652-33020×7iACV4#,GSV40..(20E,24E,24G,35Q,35V)..TAIW200605-200710

77653ACUSHION, FUEL TANK, NO.3

main77652-06040iACV40..VN200709-200909

main77652-33050iAHV40200907

77681SEAT, FUEL TANK BAND, RH

main77681-06040iAHV40200907

main77681-32060iACV4#,GSV40..(20E,24E,24G,35Q,35V)..TAIW200605-200903

77682SEAT, FUEL TANK BAND, LH

main77681-06040iAHV40200907

main77681-32060iACV40..24E..TAIW;ACV4#,GSV40..20,20E,20G,24G,24V,35Q,35V200903

77740CANISTER ASSY, CHARCOAL

main77740-33160iACV4#,GSV40..(20E,24E,24G,35Q,35V)..TAIW200605-200903

77754HOSE, CHARCOAL CANISTER OUTLET, NO.1

main77754-33030iACV41..20G..TAIW200605-200709

77785HARNESS, FUEL PUMP

main77785-06030iGSV40..VN200605-200909

sub77785-06270

main77785-06060iACV4#..IDN,MA,PHL,TH,VN200907-201207

sub77785-06061

main77785-33040iACV41..TAIW200605-200708

sub77785-33041

main77785-33050iAHV40200907-201203

8401

9011906351

main90119-06351

9011906442

main90119-06442

9011908511

main90119-08511

9011910502

main90119-10502

9011910700

main90119-10700

9015950219

main90159-50219

9015950343

main90159-50343

9015960500

main90159-60500

9015960602

main90159-60602

9017906156

main90179-06156

9018506002

main90185-06002

9026906017

main90269-06017

9030108019

main90301-08019

9030108020

main90301-08020

90301T0035

main90301-T0035

9046022002

main90460-22002

9046046003

main90460-46003

9046046005

main90460-46005

9046710149

main90467-10149

9046713061

main90467-13061

91622B1020

main91622-B1020

9613251100

main96132-51100

9613251300

main96132-51300

9613341300

main96133-41300

81 parts on this diagram · 4 diagrams in section
