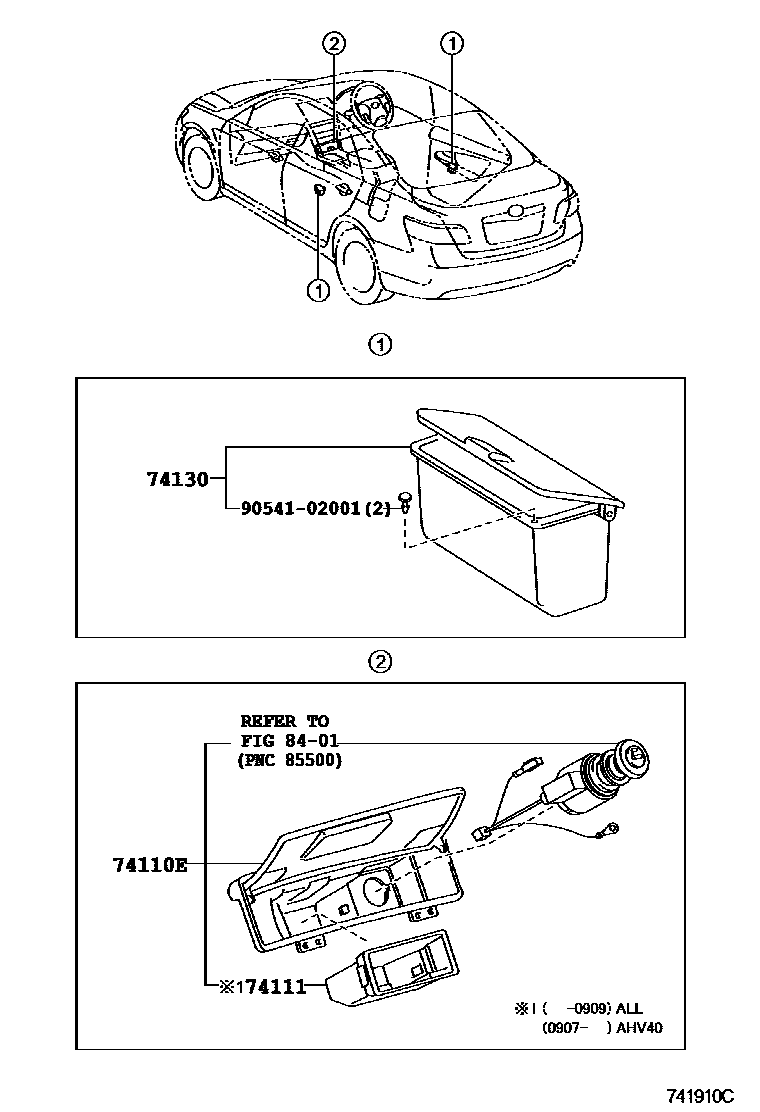

Toyota 283310 — ASH RECEPTACLE

74110ERECEPTACLE ASSY, FRONT ASH

74111BOX, FRONT ASH RECEPTACLE

74111-06010

74130RECEPTACLE ASSY, REAR ASH

74130-06090

74130-06100

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9054102001

90541-02001

5 parts on this diagram · 1 diagram in section

ASH RECEPTACLE for Toyota 283310

This section contains 5 genuine Toyota parts for the ASH RECEPTACLE system of the Toyota 283310. Key components include: RECEPTACLE ASSY, FRONT ASH, BOX, FRONT ASH RECEPTACLE, RECEPTACLE ASSY, REAR ASH, SWITCH & RELAY & COMPUTER.
