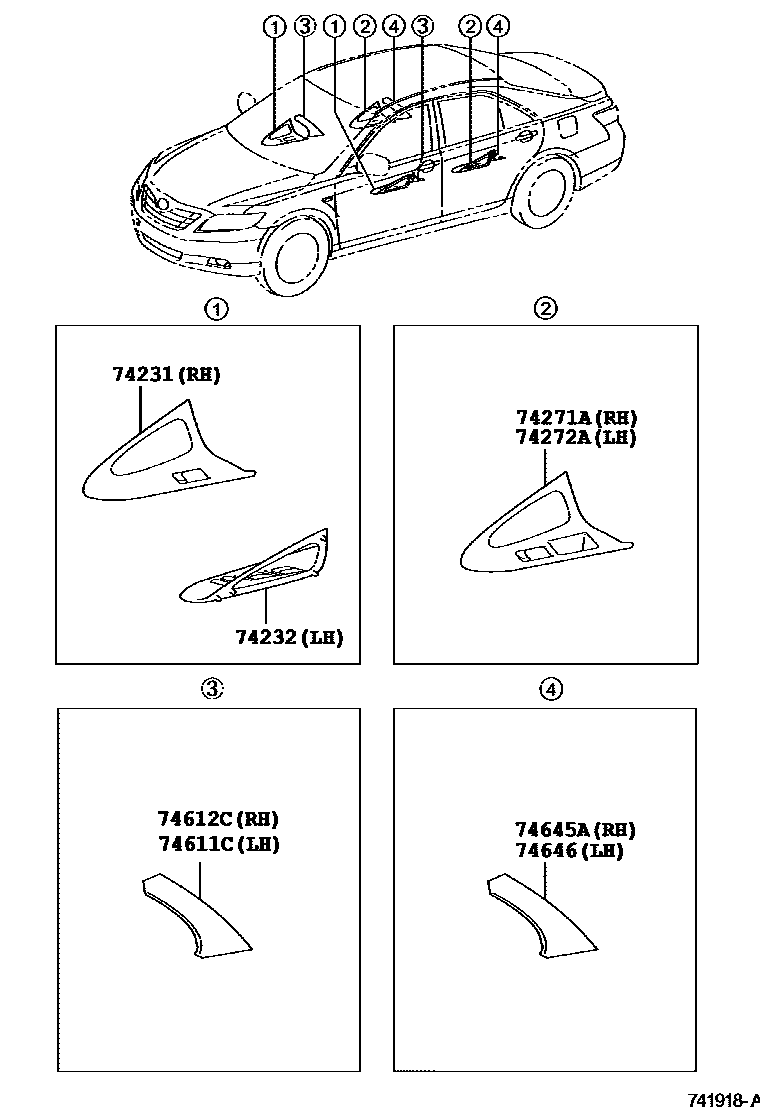

ARMREST & VISOR

0001 1ARMREST 0002 1ASSIST GRIP & VISOR

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-06190-C0iACV41..20G..TAIW200612-200709

BLACK,TRIM2#

main74231-06190-E0iACV40..TAIW200605-200903

GREGE,TRIM4#

main74231-06200-C0iGSV40..IDN200612-200907

BLACK,TRIM2#

main74231-06200-E0iACV4#..IDN,MA; ACV41..TH200907

GREGE,TRIM4#; TH 2.0E PACKAGE&SUN SHADE-WITHOUT,GREGE,TRIM4#

main74231-06210-C0iGSV40..TH200608-200611

BLACK,TRIM2#

main74231-06210-E0iACV4#,AHV40..TH200907

GREGE,TRIM4#

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-06190-C0iACV40..TAIW200605-200903

BLACK,TRIM2#

main74232-06190-E0iACV40..PHL200612-200907

GREGE,TRIM4#

main74232-06200-C0iGSV40..LHD200903

BLACK,TRIM2#

main74232-06200-E0iACV40..VN;GSV40..TAIW200903

GREGE,TRIM4#

main74232-06210-C0iGSV40..RHD200608-200907

BLACK,TRIM2#

main74232-06210-E0iACV40..24V..TH; ACV40..IDN,MA;ACV4#..(20,20E,20G,24E,24G)..(MA,TH)200612-200907

GREGE,TRIM4#; SUN SHADE-WITHOUT,GREGE,TRIM4#

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-06140-C0iACV41..20G..TAIW200612-200709

BLACK,TRIM2#

main74271-06140-E0iACV41,GSV40..TAIW200605-200612

GREGE,TRIM4#

main74271-06160-C0iGSV40..VN200612-200909

BLACK,TRIM2#

main74271-06160-E0iACV4#..IDN,MA,PHL,TH200612-200907

GREGE,TRIM4#

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74272-06140-C0iACV41,GSV40..TAIW200605-200612

BLACK,TRIM2#

main74272-06140-E0iACV41,GSV40..(20E,35Q,35V)..TAIW200612-200903

GREGE,TRIM4#

main74272-06160-C0iGSV40..VN200612-200909

BLACK,TRIM2#

main74272-06160-E0iACV4#..IDN,MA,PHL,TH200608-200612

GREGE,TRIM4#

74611CCOVER, ASSIST GRIP, LH

main74611-06050iACV4#,GSV40..IDN,MA,PHL,TH200608-200907

main74611-06051iACV4#,AHV40,GSV40..IDN,MA,PHL,TH,VN201107

main74611-06060iACV4#,GSV40..(20E,24E,24G,35Q,35V)..TAIW200605-200903

74612CCOVER, ASSIST GRIP, RH

main74612-06040iACV4#,AHV40,GSV40..IDN,MA,PHL,TH,VN200907-201107

main74612-06041iACV4#,AHV40,GSV40..IDN,MA,PHL,TH,VN201107

main74612-06050iACV41..20G..TAIW200605-200709

74645ACOVER, DOOR ASSIST GRIP, RH

main74645-06030iACV4#,GSV40..IDN,MA,PHL,TH200608-200907

main74645-06031iACV4#,AHV40,GSV40..IDN,MA,PHL,TH,VN201107

main74645-06040iACV41..20G..TAIW200605-200709

74646COVER, DOOR ASSIST GRIP, LH

main74646-06030iACV4#,GSV40..IDN,MA,PHL,TH200608-200907

main74646-06031iACV4#,AHV40,GSV40..IDN,MA,PHL,TH,VN201107

main74646-06040iACV4#,GSV40..(20E,24E,24G,35Q,35V)..TAIW200605-200903

8 parts on this diagram · 2 diagrams in section
