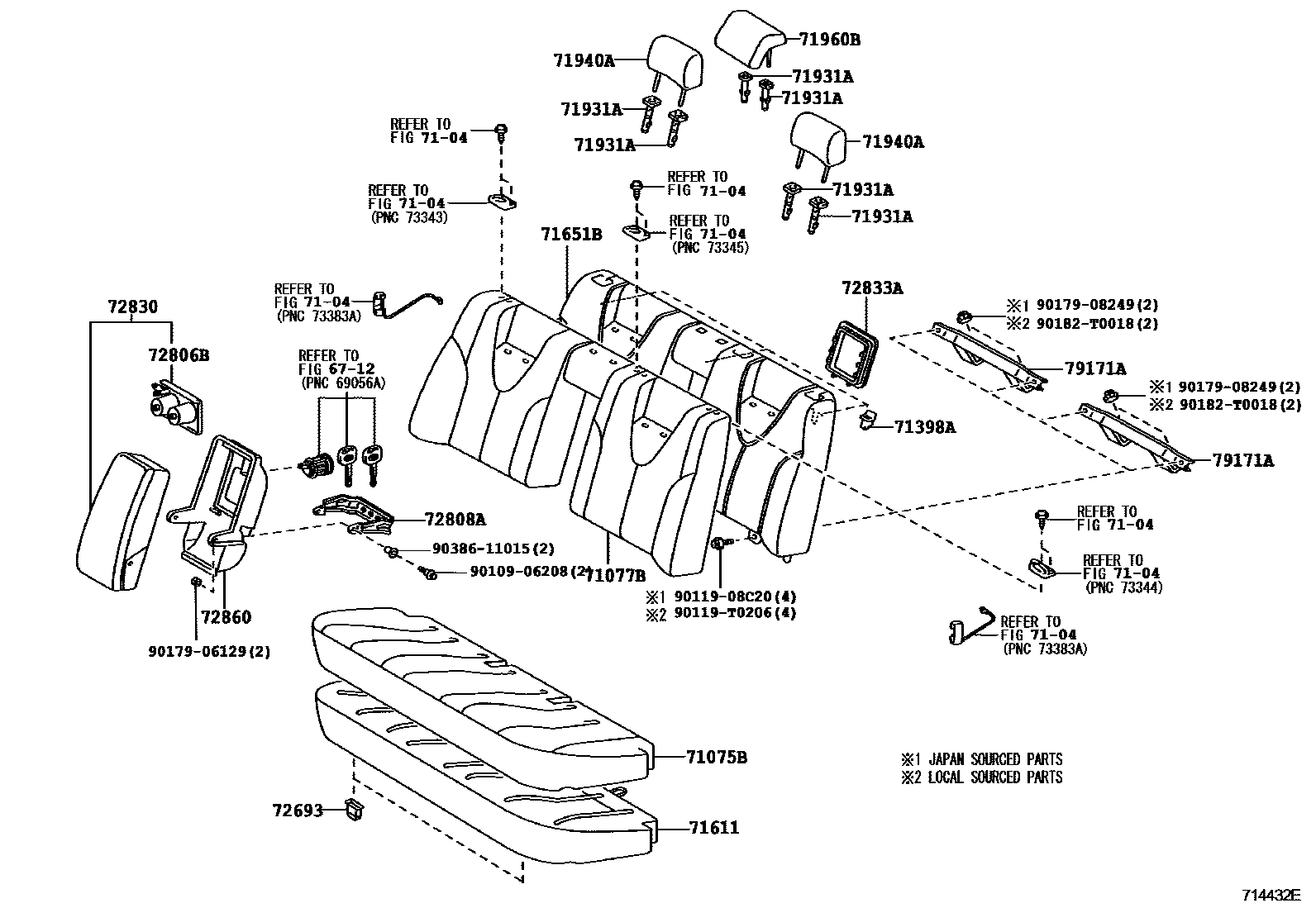

REAR SEAT & SEAT TRACK

0001 1FIX SEAT 0002 1RECLINING SEAT

6712LOCK CYLINDER SET

→ Go to FIG 67-12

7104SEAT BELT & CHILD RESTRAINT SEAT

→ Go to FIG 71-04

71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)

main71075-06410-C0iACV4#,GSV40..TAIW200903

BLACK,TRIM2#

main71075-06410-E0iACV4#,GSV40..TAIW200605-200903

GREGE,TRIM4#

main71075-06430-E1iACV40..24G..(IDN,PHL)200608-200809

GREGE,TRIM4#

main71075-06431-E1iACV40..24G..(IDN,PHL)200810-200907

GREGE,TRIM4#

main71075-06440-C0iGSV40..VN200909

BLACK,TRIM2#

main71075-06440-E0iACV40..24G..TH;ACV4#..(20,20G,24V)..(IDN,MA,PHL,TH)200608-200809

GREGE,TRIM4#

main71075-06580-E0iACV4#..RHD..(20E,24E)200608-200809

GREGE,TRIM4#

main71075-06581-E0iACV4#..RHD..(20E,24E); ACV41..TH200810-200907

GREGE,TRIM4#; TH 2.0E PACKAGE,GREGE,TRIM4#

main71075-06710-E0iACV4#..(20E,24G)..(IDN,MA,PHL); ACV41..TH200907

GREGE,TRIM4#; TH 2.0E PACKAGE,GREGE,TRIM4#

main71075-06800-C0iGSV40..IDN,PHL,TH200907

BLACK,TRIM2#

main71075-06800-E0iACV40..24G..TH;ACV4#..20,20G,24V200810-200907

GREGE,TRIM4#

71077BCOVER, REAR SEATBACK (FOR BENCH TYPE)

main71077-06440-C0iACV4#,GSV40..(20E,24E,24G,35V)..TAIW200903

BLACK,TRIM2#

main71077-06440-E0iACV4#,GSV40..(20E,20G,24E,24G,35V)..TAIW200605-200903

GREGE,TRIM4#

main71077-06470-E1iACV40..24G..(IDN,PHL)200608-200907

GREGE,TRIM4#

main71077-06490-E0iACV40..24G..(TH,VN);ACV4#..RHD..(20,20G,24V)200907

GREGE,TRIM4#

main71077-06650-E0iACV4#..RHD..(20E,24E)200608-200907

GREGE,TRIM4#

main71077-06820-E0iACV4#..(20E,24G)..(IDN,MA,PHL); ACV41..TH200907

GREGE,TRIM4#; TH 2.0E PACKAGE,GREGE,TRIM4#

main71077-06A00-C0iAHV40201010

BLACK,TRIM2#

main71077-06A00-E0iAHV40200907

GREGE,TRIM4#

71398AHOLDER, REAR SEATBACK

main71398-02040×3iACV41..20G..TAIW200605-200709

71611PAD, REAR SEAT CUSHION

main71503-06120iACV4#,GSV40..IDN,MA,PHL,TH200605-200810

main71503-06190iACV4#,GSV40..IDN,MA,PHL,TH200810-200907

71651BPAD, REAR SEATBACK(FOR BENCH TYPE)

main71651-06130iACV4#,GSV40..(20E,24E,24G,35V)..(TAIW,VN)200903

main71651-06230iAHV40200907

main71651-06270iACV4#..RHD;ACV40..24G..PHL200907

main71651-06280iACV4#..RHD;ACV40..24G..PHL200903-200907

71931ASUPPORT, REAR SEAT HEADREST

main71930-02050-C0×3iAHV40201010

W(LOCK),BLACK,TRIM2#

main71930-02050-E1iACV4#..RHD;ACV40..24G..PHL200907

W(LOCK),GREGE,TRIM4#

main71931-02030-C0×3iGSV40;ACV4#..TAIW200903

W/O(LOCK),BLACK,TRIM2#

main71931-02030-E1×3iGSV40..TAIW;ACV40..TAIW,VN;ACV40..24V..PHL;ACV41,AHV40..(20E,HBD)..(TAIW,TH)200903

W/O(LOCK),GREGE,TRIM4#

71940AHEADREST ASSY, REAR SEAT

main71940-06360-C0×2iACV41,GSV40..(20E,35Q,35V)..TAIW200605-200702

BLACK,TRIM2#

main71940-06360-C1×2iACV4#,GSV40..(20E,24E,24G,35Q,35V)..TAIW200702-200903

BLACK,TRIM2#

main71940-06360-E0×2iACV41..20G..TAIW200605-200709

GREGE,TRIM4#

main71940-06360-E1×2iACV4#,GSV40..(20E,24E,24G,35Q,35V)..TAIW200702-200903

GREGE,TRIM4#

main71940-06370-C0×2iGSV40..VN200611-200702

BLACK,TRIM2#

main71940-06370-C1×2iGSV40..VN200702-200909

BLACK,TRIM2#

main71940-06370-E0×2iACV40..VN200611-200702

GREGE,TRIM4#

main71940-06370-E1×2iACV40..VN200909

GREGE,TRIM4#

main71940-06380-E2×2iACV4#..RHD..(20E,24E);ACV40..24G..(IDN,PHL)200608-200907

GREGE,TRIM4#

main71940-06390-C0×2iGSV40..IDN,PHL,TH200608-200702

BLACK,TRIM2#

main71940-06390-C1×2iAHV40201010

BLACK,TRIM2#

main71940-06390-E0×2iACV40..24G..TH;ACV4#..(20,20G,24V)..(IDN,MA,PHL,TH)200608-200702

GREGE,TRIM4#

main71940-06390-E2iACV40..24G..TH;ACV4#..RHD..(20,20G,24V); AHV40;ACV40..24V..PHL200907

GREGE,TRIM4#

71960BHEADREST ASSY, REAR SEAT, CENTER

main71960-06050-C0iGSV40..35Q..TAIW200605-200702

BLACK,TRIM2#

main71960-06050-C1iGSV40..35Q..TAIW200903

BLACK,TRIM2#

main71960-06050-E0iGSV40..35Q..TAIW200605-200702

GREGE,TRIM4#

main71960-06050-E1iGSV40..35Q..TAIW200702-200903

GREGE,TRIM4#

main71960-06060-C0iGSV40..VN200611-200702

BLACK,TRIM2#

main71960-06060-C1iGSV40..VN200702-200909

BLACK,TRIM2#

main71960-06080-C0iGSV40..IDN,PHL,TH200608-200702

BLACK,TRIM2#

main71960-06080-C1iGSV40..IDN,PHL,TH200702-200907

BLACK,TRIM2#

main71960-06080-E0iACV40..24V..PHL200608-200702

GREGE,TRIM4#

main71960-06080-E1iACV40..24V..PHL200907

GREGE,TRIM4#

main71960-06230-C0iACV41,GSV40..(20E,35V)..TAIW200605-200702

BLACK,TRIM2#

main71960-06230-C1iACV4#,GSV40..(20E,24E,24G,35V)..TAIW200702-200903

BLACK,TRIM2#

main71960-06230-E0iACV41..20G..TAIW200605-200709

GREGE,TRIM4#

main71960-06230-E1iACV4#,GSV40..(20E,24E,24G,35V)..TAIW200702-200903

GREGE,TRIM4#

main71960-06240-E0iACV40..VN200611-200702

GREGE,TRIM4#

main71960-06240-E1iACV40..VN200909

GREGE,TRIM4#

main71960-06250-E2iACV4#..RHD..(20E,24E);ACV40..24G..(IDN,PHL)200608-200907

GREGE,TRIM4#

main71960-06260-C0iAHV40201010

BLACK,TRIM2#

main71960-06260-E0iACV40..24G..TH;ACV4#..RHD..(20,20G,24V)200608-200702

GREGE,TRIM4#

main71960-06260-E2iACV40..24G..TH;ACV4#,AHV40..RHD..(20,20G,24V,HBD)200907

GREGE,TRIM4#

72693HOOK, REAR SEAT CUSHION LOCK

main72693-12080×2iACV41..20G..TAIW200605-200709

72806BHOLDER SUB-ASSY, REAR SEAT CENTER ARMREST CUP

main72806-06060iACV41..20G..TAIW200605-200709

main72806-06060-E1iACV4#,GSV40..(20E,24E,24G,35V)..TAIW200903

BROWN,TRIM2#,4#

main72806-06070-E0iACV4#..(20E,24G)..(IDN,MA,PHL); ACV41..TH200907

GREGE,TRIM4#; TH 2.0E PACKAGE,GREGE,TRIM4#

main72806-06070-E1iACV4#..RHD..(20E,24E);ACV40..24G..(IDN,PHL)200608-200907

BROWN,TRIM4#

main72806-06160-E1iACV40..24G..(TH,VN);ACV4#..RHD..(20,20G,24V); AHV40200907

BROWN,TRIM2#,4#; BROWN,TRIM4#

main72806-30090-E2iACV40..24V..PHL; GSV40..IDN,PHL,TH,VN200907

BROWN,TRIM2#; BROWN,TRIM4#

main72806-06170-B0iACV40..24E..TAIW200903

TW 2.4E SE PACKAGE,METALLIC GRAY,TRIM2#

72808ABRACKET SUB-ASSY, SEAT CENTER ARMREST

main72883-06030iACV40..VN200605-200909

main72883-06060iGSV40..VN200605-200909

main72883-06080iAHV40200907

72830ARMREST ASSY, REAR SEAT, CENTER

main72830-06250-C0iACV41,GSV40..(20E,35V)..TAIW200605-200702

BLACK,TRIM2#

main72830-06250-C1iACV4#,GSV40..(20E,24E,24G,35V)..TAIW200702-200903

BLACK,TRIM2#

main72830-06250-E0iACV41,GSV40..(20E,35V)..TAIW200605-200702

GREGE,TRIM4#

main72830-06250-E1iACV4#,GSV40..(20E,24E,24G,35V)..TAIW200702-200903

GREGE,TRIM4#

main72830-06260-C0iGSV40..35Q..TAIW200605-200702

BLACK,TRIM2#

main72830-06260-C1iGSV40..35Q..TAIW200702-200903

BLACK,TRIM2#

main72830-06260-E0iGSV40..35Q..TAIW200605-200702

GREGE,TRIM4#

main72830-06260-E1iGSV40..35Q..TAIW200702-200903

GREGE,TRIM4#

main72830-06270-E0iACV40..VN200611-200702

GREGE,TRIM4#

main72830-06270-E1iACV40..VN200702-200909

GREGE,TRIM4#

main72830-06280-C0iGSV40..VN200611-200702

BLACK,TRIM2#

main72830-06280-C1iGSV40..VN200909

BLACK,TRIM2#

main72830-06290-E2iACV4#..RHD..(20E,24E);ACV40..24G..(IDN,PHL)200608-200907

GREGE,TRIM4#

main72830-06290-E3iACV4#..(20E,24G)..(IDN,MA,PHL); ACV41..TH200907

GREGE,TRIM4#; TH 2.0E PACKAGE,GREGE,TRIM4#

main72830-06300-E0iACV40..24G..TH;ACV4#..RHD..(20,20G,24V)200608-200702

GREGE,TRIM4#

main72830-06300-E2iACV40..24G..TH;ACV4#..RHD..(20,20G,24V)200907

GREGE,TRIM4#

main72830-06310-C0iGSV40..IDN,PHL,TH200608-200702

BLACK,TRIM2#

main72830-06310-C1iGSV40..IDN,PHL,TH200702-200907

BLACK,TRIM2#

main72830-06310-E0iACV40..24V..PHL200608-200702

GREGE,TRIM4#

main72830-06310-E1iACV40..24V..PHL200907

GREGE,TRIM4#

main72830-06570-C0iAHV40201010

BLACK,TRIM2#

main72830-06570-E0iAHV40200907

GREGE,TRIM4#

main72830-06510-C1iACV40..24E..TAIW200709-200903

TW 2.4E SE PACKAGE,BLACK,TRIM2#

72833APLATE, SEAT CENTER ARMREST, INNER

main72831-06040iACV4#,GSV40..(20E,24E,24G,35Q,35V)..TAIW200605-200903

main72831-06090iACV40..24G..PHL;ACV4#,AHV40..RHD200907

72860BOX ASSY, REAR SEAT CENTER ARMREST

main72860-06040-C0iACV4#,GSV40..(20E,20G,24E,24G,35V)..TAIW200605-200903

BLACK,TRIM2#

main72860-06040-E0iACV40..24G..PHL;ACV4#,GSV40..(20,20E,20G,24E,24G,24V,35V)..(IDN,MA,TAIW,TH,VN)200605-200909

GREGE,TRIM4#

main72860-06050-C0iGSV40..35Q200903

BLACK,TRIM2#

main72860-06050-E0iACV40..24V..PHL;GSV40..35Q..TAIW200605-200907

GREGE,TRIM4#

main72860-06080-C0iAHV40201010

BLACK,TRIM2#

main72860-06080-E0iAHV40200907

GREGE,TRIM4#

79171ABRACKET, NO.1 SEAT

main79001-06020iACV4#,GSV40..IDN,MA,PHL,TH200605-200907

RH

main79002-06020iACV40,GSV40..VN200605-200909

LH

9010906208

main90109-06208

9011908C20

main90119-08C20

90119T0206

main90119-T0206

9017906129

main90179-06129

9017908249

main90179-08249

90182T0018

main90182-T0018

9038611015

main90386-11015

24 parts on this diagram · 2 diagrams in section
