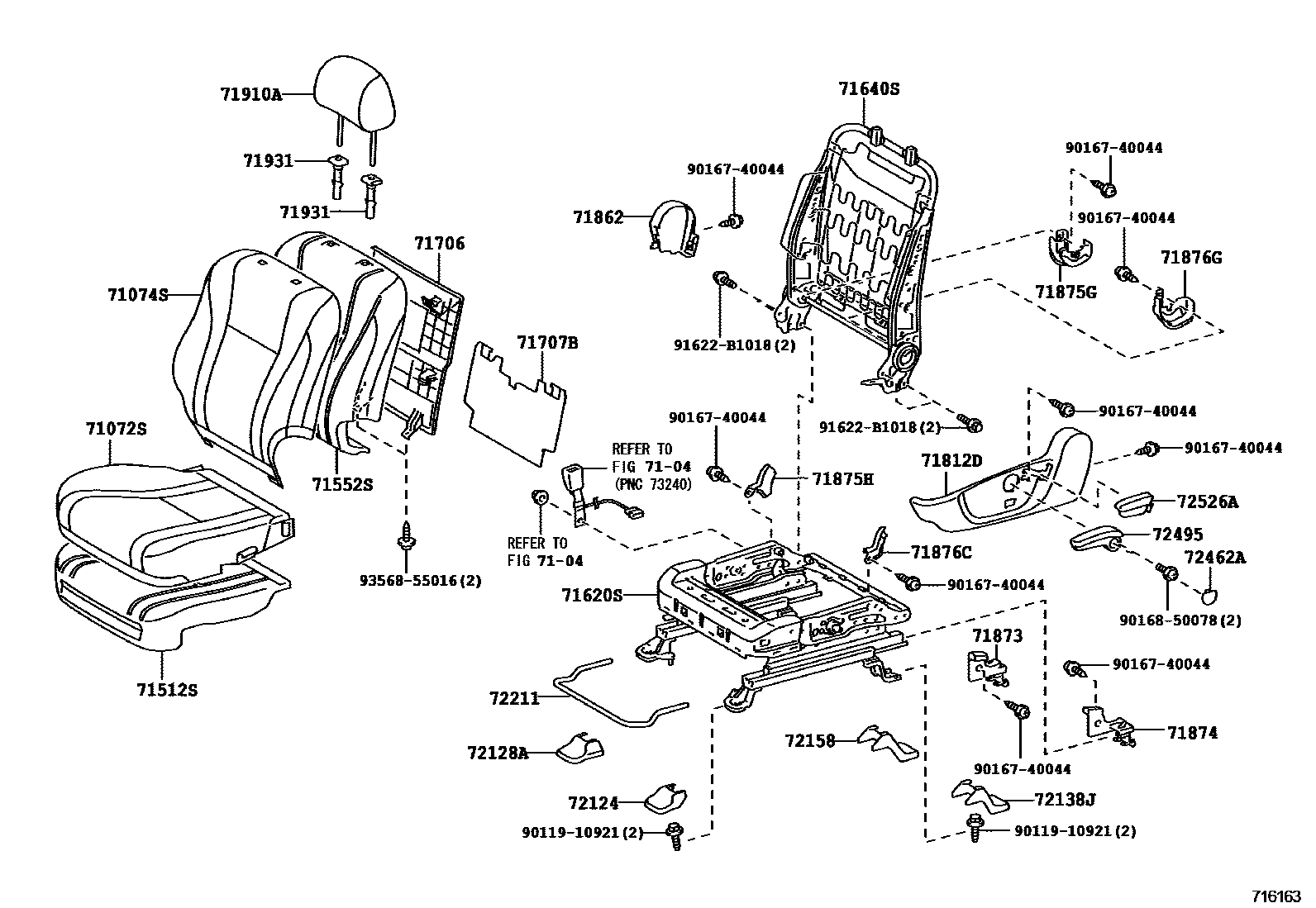

FRONT SEAT & SEAT TRACK

0001 1DRIVER SEAT 0003 1DRIVER SEAT(POWER SEAT) 0005 1DRIVER SEAT(POWER & SIDE AIR 0007 1DRIVER SEAT 0009 1DRIVER SEAT(POWER SEAT) 0011 1DRIVER SEAT(POWER & SIDE AIR 0012 1DRIVER SEAT 0013 1DRIVER SEAT(POWER SEAT) 0014 1DRIVER SEAT(POWER & SIDE AIR 0015 1PASSENGER SEAT 0017 1PASSENGER SEAT(POWER SEAT) 0019 1PASSENGER SEAT(POWER &SIDE AI0021 1PASSENGER SEAT 0022 1PASSENGER SEAT(POWER SEAT) 0024 1PASSENGER SEAT(POWER &SIDE AI0025 1PASSENGER SEAT 0026 1PASSENGER SEAT W(POWER SEAT) 0027 1PASSENGER SEAT(POWER &SIDE AI

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71072-06570-C0supersedes 71072-06560-C0iACV40,GSV40..TAIW200903

BLACK,TRIM2#

main71072-06570-E0supersedes 71072-06560-E0iACV4#,GSV40..(20G,24E,24G,35Q,35V)..TAIW200605-200903

GREGE,TRIM4#

main71072-06600-E1iACV40..24G..IDN200608-200907

GREGE,TRIM4#

main71072-06610-E0iACV40..24G..PHL200608-200907

GREGE,TRIM4#

main71072-06620-C0iGSV40..IDN,PHL,TH,VN200907

BLACK,TRIM2#

main71072-06620-E0iACV40..24G..(TH,VN);ACV4#..(20,20G,24V)..(IDN,MA,PHL,TH)200608-200909

GREGE,TRIM4#

main71072-06800-E0iACV4#..RHD..(20E,24E)200608-200907

GREGE,TRIM4#

main71072-06A10-E0iACV40..24G..PHL200907

GREGE,TRIM4#

main71072-06A70-E0iACV4#..(20E,24G)..(IDN,MA); ACV41..TH200907

GREGE,TRIM4#; TH 2.0E PACKAGE,GREGE,TRIM4#

main71072-06560-C0iACV40..24E..TAIW200709-200903

TW 2.4E LOW PACKAGE,BLACK,TRIM2#

main71072-06560-E0iACV40..24E..TAIW; ACV41..TAIW200903

GREGE,TRIM4#; TW 2.4E LOW PACKAGE,GREGE,TRIM4#

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71074-06510-C0iACV4#,GSV40..(20E,20G,24E,24G,35V)..TAIW200605-200903

BLACK,TRIM2#

main71074-06510-E0iACV4#,GSV40..(20E,20G,24E,24G,35V)..TAIW200605-200903

GREGE,TRIM4#

main71074-06520-C0iGSV40..35Q..TAIW200605-200903

BLACK,TRIM2#

main71074-06520-E0iGSV40..35Q..TAIW200903

GREGE,TRIM4#

main71074-06550-E1iACV40..24G..(IDN,PHL)200608-200907

GREGE,TRIM4#

main71074-06560-C0iGSV40..PHL,VN200907

BLACK,TRIM2#

main71074-06570-C0iACV40..24G..TAIW; GSV40..RHD;GSV40..35V200903

BLACK,TRIM2#; TW 2.4G P PACKAGE,BLACK,TRIM2#

main71074-06570-E0iACV4#..(20,24V)..TH200608-200907

GREGE,TRIM4#

main71074-06590-E0iACV40..24G..TH;ACV4#..(20G,24V)..(IDN,MA)200608-200907

GREGE,TRIM4#

main71074-06590-E1iACV40..24V..(IDN,MA);ACV4#..(20,20G,24G)..(MA,TH)200907

GREGE,TRIM4#

main71074-06800-E0iACV4#..RHD..(20E,24E)200608-200907

GREGE,TRIM4#

main71074-06820-E0iACV40..VN;ACV40..24V..PHL200608-200909

GREGE,TRIM4#

main71074-06820-E1iACV40..VN;ACV40..24V..PHL200907

GREGE,TRIM4#

main71074-06A90-E0iACV4#..(20E,24G)..(IDN,MA,PHL); ACV41..TH200907

GREGE,TRIM4#; TH 2.0E PACKAGE,GREGE,TRIM4#

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71502-06070iACV4#..(20E,24G)..(IDN,MA); ACV41..TH200907

TH 2.0E PACKAGE

main71502-06080iGSV40..IDN;ACV40..24G..TH;ACV4#..RHD..(20,20G,24V)200907

main71502-06090iAHV40,GSV40..TH200907

main71512-06100iACV40..24G..PHL200605-200907

main71512-06110supersedes 71512-06100iACV40,GSV40..(24V,35Q)..PHL200605-200907

main71512-06120iGSV40..35Q..TAIW200605-200903

main71512-06330iACV40..24G..PHL200907

main71512-06340iACV40,GSV40..(24V,35Q)..PHL200907

71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71552-06110iACV41..20G..TAIW200605-200709

main71552-06160iACV40..24V..(IDN,MA);ACV4#..(20,20G,24G)..(MA,TH)200907

main71552-06250iACV40..24V..PHL;ACV4#..(20E,24G)..(IDN,MA,PHL); ACV41..TH200907

TH 2.0E PACKAGE

71620SSPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71620-06060iACV4#..(20E,24G)..(IDN,MA); ACV41..TH200907

TH 2.0E PACKAGE

main71620-06070iACV40..24G..PHL200907

main71620-06080iAHV40,GSV40..IDN,PHL,TH,VN200907

main71620-06170iACV40..VN200608-200909

main71620-06190iGSV40..TAIW200605-200903

main71620-06200supersedes 71620-06180iACV41..20G..TAIW200605-200709

main71620-06180iACV40..24E..TAIW200709-200903

TW 2.4E LOW PACKAGE

71640SSPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71640-06140iACV4#..RHD..(20E,24E);ACV40..24G..(IDN,PHL)200605-200907

main71640-06170iACV40..24G..TH;ACV4#..(20G,24V)..(IDN,MA)200608-200907

main71640-06180supersedes 71640-06140iACV40,GSV40..(24E,24G,35V)..TAIW200605-200903

main71640-06340iACV40..VN;ACV40..24V..PHL200907

71706BOARD SUB-ASSY, FRONT SEATBACK, LH

main71705-06060-C0iAHV40201010

BLACK,TRIM2#

main71705-06060-E0iACV4#;GSV40..TAIW200605-200909

GREGE,TRIM4#

71707BCOVER SUB-ASSY, FRONT SEATBACK BOARD

main71707-06030-C0iGSV40;ACV4#..TAIW200605-200909

BLACK,TRIM2#

main71707-06030-E0iACV40,GSV40..(24E,35Q,35V)..TAIW;ACV4#,AHV40..20,20E,20G,24G,24V,HBD200903

GREGE,TRIM4#

71812DSHIELD, FRONT SEAT CUSHION, LH

main71812-06110-E0iACV4#..(20E,24G)..(IDN,MA); ACV41..TH200907

GREGE,TRIM4#; TH 2.0E PACKAGE,GREGE,TRIM4#

main71812-06120-E0iACV40..24E..TAIW; ACV41..TAIW;ACV40..24G..PHL200903

GREGE,TRIM4#; TW 2.4E LOW PACKAGE,GREGE,TRIM4#

main71812-06130-C0iGSV40..RHD200608-200907

BLACK,TRIM2#

main71812-06130-E0iACV40..24G..TH;ACV4#..RHD..(20,20G,24V)200608-200907

GREGE,TRIM4#

main71812-06140-C0supersedes 71812-06120-C0iGSV40..LHD;ACV40..TAIW200903

BLACK,TRIM2#

main71812-06140-E0iACV40..TAIW,VN;ACV40..24V..PHL;ACV41,GSV40..(20G,35Q,35V)..TAIW200605-200909

GREGE,TRIM4#

main71812-06120-C0iACV40..24E..TAIW; ACV41..TAIW200903

BLACK,TRIM2#; TW 2.4E LOW PACKAGE,BLACK,TRIM2#

71862SHIELD, FRONT SEAT CUSHION, INNER LH

main71862-06070-E0iACV41..20E;ACV40..24E..TH;ACV40..24G..(IDN,PHL)200605-200907

GREGE,TRIM4#

main71862-06080-C0supersedes 71862-06070-C0iGSV40;ACV40..TAIW200903

BLACK,TRIM2#

main71862-06080-E0iACV4#..20,20G,24V;ACV40..24G..(TAIW,TH,VN);ACV40,GSV40..(24E,35Q,35V)..TAIW200605-200909

GREGE,TRIM4#

main71862-06070-C0iACV40..24E..TAIW; ACV41..TAIW200903

BLACK,TRIM2#; TW 2.4E LOW PACKAGE,BLACK,TRIM2#

71873SHIELD, FRONT SEAT CUSHION, LOWER RH

main71873-06250×2iACV4#..(20E,24E)..TAIW; ACV40,GSV40..(24G,35Q,35V)..TAIW200605-200903

71874SHIELD, FRONT SEAT CUSHION, LOWER LH

main71874-06260iACV40,GSV40..(24G,35Q,35V)..TAIW; ACV40..24E..TAIW200605-200903

main71874-06260-E0iACV41..20E..TAIW200605-200903

GREGE,TRIM4#

71875GCOVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)

main71875-06370iACV4#,GSV40..IDN,MA,PHL,TH200605-200907

71875HCOVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)

main71875-06070-E0iACV41..20E;ACV40..24E..TH;ACV40..24G..(IDN,PHL)200605-200907

GREGE,TRIM4#

main71875-06100-C0supersedes 71875-06070-C0iGSV40;ACV40..TAIW200903

BLACK,TRIM2#

main71875-06100-E0iACV40..24G..(TAIW,TH,VN);ACV4#,AHV40..20,20G,24V,HBD;ACV40,GSV40..(24E,35Q,35V)..TAIW200903

GREGE,TRIM4#

main71875-06070-C0iACV40..24E..TAIW; ACV41..TAIW200903

BLACK,TRIM2#; TW 2.4E LOW PACKAGE,BLACK,TRIM2#

71876COVER, RECLINING ADJUSTER INSIDE, LH

main71876-06320-C0iACV4#..(20E,20G,24E)..TAIW200605-200903

BLACK,TRIM2#

main71876-06320-E0iACV4#..(20E,24E,24G)..(IDN,MA,PHL,TAIW)200903

GREGE,TRIM4#

main71876-06330-C0iGSV40;ACV40..24G..TAIW200605-200909

BLACK,TRIM2#

main71876-06330-E0iGSV40..TAIW;ACV40..24G..(TAIW,TH,VN);ACV4#..(20,20G,24V)..(IDN,MA,PHL,TH)200605-200909

GREGE,TRIM4#

71876CCOVER, RECLINING ADJUSTER INSIDE, LH

main71876-06320-E0iACV41..20E;ACV40..24E..TH;ACV40..24G..(IDN,PHL)200605-200907

GREGE,TRIM4#

main71876-06330-C0supersedes 71876-06320-C0iGSV40;ACV4#..(20G,24E,24G)..TAIW200605-200909

BLACK,TRIM2#

main71876-06330-E0iACV4#..20,20G,24V;ACV40..24G..(TAIW,TH,VN);ACV40,GSV40..(24E,35Q,35V)..TAIW200605-200909

GREGE,TRIM4#

main71876-06320-C0iACV40..24E..TAIW; ACV41..TAIW200903

BLACK,TRIM2#; TW 2.4E LOW PACKAGE,BLACK,TRIM2#

71876GCOVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)

main71876-06080supersedes 71876-06400iACV40..24G..TH;ACV4#,GSV40..(20,20G,24V,35Q)..(IDN,MA,PHL,TH)200605-200907

main71876-06400iACV40..24E..TAIW; ACV41..20E;ACV40..24G..(IDN,PHL)200903

TW 2.4E LOW PACKAGE

71910AHEADREST ASSY, FRONT SEAT

main71910-06280-C0×2iACV41..20G..TAIW200605-200709

BLACK,TRIM2#

main71910-06280-C1×2iACV4#,GSV40..(20E,24E,24G,35Q,35V)..TAIW200702-200903

BLACK,TRIM2#

main71910-06280-E0×2iACV41,GSV40..(20E,35Q,35V)..TAIW200605-200702

GREGE,TRIM4#

main71910-06280-E3×2iACV4#,GSV40..(20E,24E,24G,35Q,35V)..TAIW200702-200903

GREGE,TRIM4#

main71910-06290-C0×2iGSV40..VN200611-200702

BLACK,TRIM2#

main71910-06290-C1×2iGSV40..VN200702-200909

BLACK,TRIM2#

main71910-06290-E0×2iACV40..VN200611-200702

GREGE,TRIM4#

main71910-06290-E1×2iACV40..VN200702-200909

GREGE,TRIM4#

main71910-06300-E2×2iACV4#..RHD..(20E,24E);ACV40..24G..(IDN,PHL)200608-200907

GREGE,TRIM4#

main71910-06310-C0×2iGSV40..IDN,PHL,TH200608-200702

BLACK,TRIM2#

main71910-06310-C1×2iGSV40..IDN,PHL,TH200907

BLACK,TRIM2#

main71910-06310-E0×2iACV40..24G..TH;ACV4#..(20,20G,24V)..(IDN,MA,PHL,TH)200608-200702

GREGE,TRIM4#

main71910-06310-E2×2iACV40..24G..TH;ACV4#..(20,20G,24V)..(IDN,MA,PHL,TH)200702-200907

GREGE,TRIM4#

71931SUPPORT, FRONT SEAT HEADREST

main71930-02370-C0×2iGSV40..IDN,PHL,TH,VN200807-200909

W(LOCK)&W(BUTTON),BLACK,TRIM2#

main71930-02370-E0×2iACV4#..IDN,MA,PHL,TH,VN200807-200909

W(LOCK)&W(BUTTON),GREGE,TRIM4#

main71930-47010-C0×2iACV4#,GSV40..TAIW200903

W(LOCK),BLACK,TRIM2#

main71930-47010-E3×2iACV4#,GSV40..TAIW200903

W(LOCK),GREGE,TRIM4#

main71931-02130-C0×2iGSV40..IDN,PHL,TH,VN200907

W/O(LOCK),BLACK,TRIM2#

main71931-02130-E0×2iACV4#..IDN,MA,PHL,TH,VN200807-200909

W/O(LOCK),GREGE,TRIM4#

main71931-47010-C0×2iGSV40..IDN,PHL,TH,VN200605-200807

W/O(LOCK),BLACK,TRIM2#

main71931-47010-E4×2iACV4#,GSV40..TAIW200903

W/O(LOCK),GREGE,TRIM4#

72124COVER, SEAT TRACK BRACKET, OUTER FRONT LH

main72124-06020-C0iGSV40;ACV4#..TAIW200605-200909

BLACK,TRIM2#

main72124-06020-E0iACV4#;GSV40..TAIW200605-200909

GREGE,TRIM4#

72128ACOVER, SEAT TRACK BRACKET, INNER FRONT LH

main72128-06020-C0iACV4#..TAIW;AHV40,GSV40200903

BLACK,TRIM2#

main72128-06020-E0iACV40,GSV40..(24E,35Q,35V)..TAIW;ACV4#,AHV40..20,20E,20G,24G,24V,HBD200903

GREGE,TRIM4#

72138JCOVER, FRONT SEAT TRACK, LH REAR OUTER

main72138-06040-C0iACV4#..TAIW;AHV40,GSV40200903

BLACK,TRIM2#

main72138-06040-E0iACV40,GSV40..(24E,35Q,35V)..TAIW;ACV4#,AHV40..20,20E,20G,24G,24V,HBD200903

GREGE,TRIM4#

72158COVER, SEAT TRACK BRACKET, INNER LH

main72158-06050-C0iACV4#..TAIW;AHV40,GSV40200903

BLACK,TRIM2#

main72158-06050-E0iGSV40..IDN,PHL,TH,VN200605-200810

GREGE,TRIM4#

72211HANDLE, SEAT TRACK ADJUSTING

main72211-06020iACV4#..RHD..(20E,24E); ACV40..24G..IDN200605-200907

72462COVER, VERTICAL ADJUSTER RH

main72462-06010-E0iACV40..24G..IDN;ACV4#..RHD..(20E,24E)200608-200907

GREGE,TRIM4#

72462ACOVER, VERTICAL ADJUSTER LH

main72462-06010-C0iACV41..20E..TAIW200605-200903

BLACK,TRIM2#

main72462-06010-E0iACV40..24G..PHL;ACV41..20E..TAIW200605-200907

GREGE,TRIM4#

72495HANDLE, VERTICAL ADJUSTING, LH

main72494-06030-C0iACV41..20E..TAIW200605-200903

BLACK,TRIM2#

main72494-06030-E0iACV40..24E..TAIW; ACV41..TAIW;ACV40..24G..PHL200903

GREGE,TRIM4#; TW 2.4E LOW PACKAGE,GREGE,TRIM4#

72526AHANDLE, RECLINING ADJUSTER RELEASE, LH

main72526-06030-E0iACV40..24G..IDN;ACV4#..RHD..(20E,24E)200608-200907

GREGE,TRIM4#

main72526-06060-C0iACV41..20E..TAIW200605-200903

BLACK,TRIM2#

main72526-06060-E0iACV40..24E..TAIW; ACV41..TAIW;ACV40..24G..PHL200903

GREGE,TRIM4#; TW 2.4E LOW PACKAGE,GREGE,TRIM4#

9011910921

main90119-10921

9016740044

main90167-40044

9016850078

main90168-50078

91622B1018

main91622-B1018

9356855016

main93568-55016

33 parts on this diagram · 18 diagrams in section
