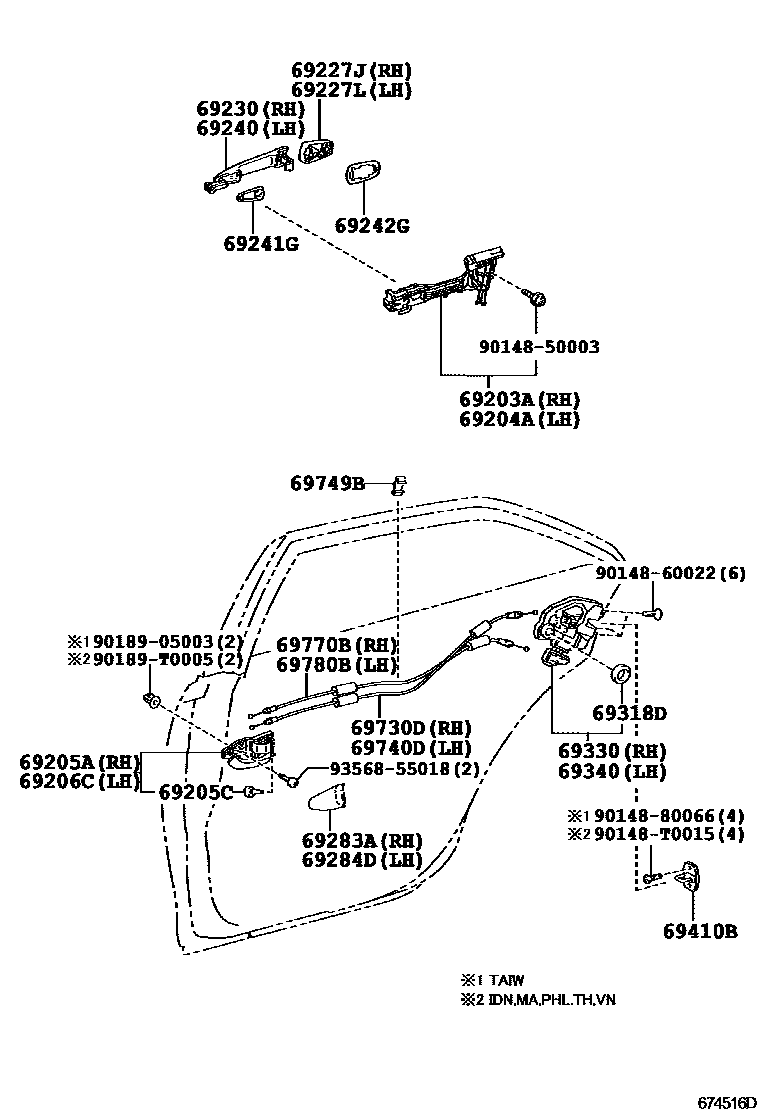

REAR DOOR LOCK & HANDLE

69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH

main69203-06050iACV40..VN200605-200909

main69203-33030iACV40,GSV40..(24G,35Q,35V)..TAIW200903-201107

69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH

main69204-06050iACV40,GSV40..(24G,35Q,35V)..TAIW201107

main69204-33030iACV40..(24G,24V)..(IDN,MA,PHL,TH);ACV41,AHV40,GSV40..IDN,MA,PHL,TH,VN200903

69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH

main69205-06060-C0iACV4#,GSV40..(20G,24G,35Q,35V)..TAIW200605-200903

BLACK,TRIM2#

main69205-06060-E0iACV40,GSV40..(24G,35Q,35V)..TAIW200903

GREGE,TRIM4#

main69205-06070-C0iACV4#..(20E,24E)..TAIW200605-200903

BLACK,TRIM2#

main69205-06070-E0iACV4#..(20E,24E)..TAIW200605-200903

GREGE,TRIM4#

main69205-33090-C0iAHV40,GSV40..IDN,PHL,TH,VN200907

BLACK,TRIM2#

main69205-33090-E0iACV40..24G..(PHL,TH);ACV4#,AHV40..20,20G,24V,HBD200907

GREGE,TRIM4#

main69205-42030-E0iACV40..24G..(IDN,VN);ACV4#..RHD..(20E,24E)200608-200909

GREGE,TRIM4#

69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)

main90541-04014×2iACV41..20G..TAIW200605-200709

69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH

main69206-06060-C0iACV4#,GSV40..(20G,24G,35Q,35V)..TAIW200605-200903

BLACK,TRIM2#

main69206-06060-E0iACV40,GSV40..(24G,35Q,35V)..TAIW200903

GREGE,TRIM4#

main69206-06070-C0iACV4#..(20E,24E)..TAIW200605-200903

BLACK,TRIM2#

main69206-06070-E0iACV4#..(20E,24E)..TAIW200903

GREGE,TRIM4#

main69206-33100-C0iGSV40..IDN,PHL,TH,VN200608-200909

BLACK,TRIM2#

main69206-33100-E0iACV40..24G..(PHL,TH);ACV4#,AHV40..20,20G,24V,HBD200907

GREGE,TRIM4#

main69206-42030-E0iACV4#..(20E,24G)..(IDN,MA,VN); ACV41..TH200907

GREGE,TRIM4#; TH 2.0E PACKAGE,GREGE,TRIM4#

69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH

main69207-30040-A0iACV40,GSV40..(24G,35Q,35V)..TAIW200605-200903

SUPER WHITE 2,040

main69207-30040-A5iGSV40..IDN,PHL,TH;ACV40..24V..(IDN,TH)200608-200907

WHITE PEARL CS.,070

main69207-30040-B2iACV40,GSV40..(24G,35Q,35V)..TAIW200903

SILVER ME.,1F7

main69207-30040-B4iACV40,AHV40,GSV40..(24V,35Q,HBD)..(IDN,MA,PHL,TH,VN)200907

SILVER ME.,1D4

main69207-30040-B5iACV40,AHV40,GSV40..(24V,35Q,HBD)..(IDN,MA,PHL,TH,VN)200907

MEDIUM SILVER ME.,1F8

main69207-30040-B6iACV40,GSV40..(24G,35Q,35V)..TAIW200605-200903

GRAY ME.,1G3

main69207-30040-B9iGSV40..VN200611-200909

GRAY M.M.,1E3

main69207-30040-C0iACV40,GSV40..(24G,35Q,35V)..TAIW200605-200903

BLACK,202

main69207-30040-C2iACV40,AHV40,GSV40..(24V,35Q,HBD)..(IDN,MA,PHL,TH,VN)200907

BLACK MC.,209

main69207-30040-E0iACV40..24G..TAIW;ACV40..24V..(IDN,TH);GSV40..IDN,PHL,TAIW,TH200605-200907

BEIGE ME.,4R0

main69207-30040-E2iGSV40..VN200611-200909

GRAYISH BROWN ME,4P9

main69207-30040-E5iACV40,GSV40..(24G,35Q,35V)..TAIW200903

DK.BROWN ME.,4U5

main69207-30040-G3iACV40,GSV40..(24G,35Q,35V)..TAIW200605-200903

LT.GREEN ME.,6V1

main69207-30040-J2iACV40,GSV40..(24G,35Q,35V)..TAIW200903

DK.BLUE MC.,8S6

main69207-30040-J3iAHV40201010

LT.BLUE ME.,8S7

main69207-30040-J4iGSV40..IDN,PHL,TH;ACV40..24V..(IDN,TH)200608-200907

DK.BLUE MC.,8N8

main69207-30040-R3iAHV40200907

LIGHT BLUE MICA METALLIC,8U8

main69227-30070iACV41..20,20G;ACV40..24G..(PHL,TH);ACV40..24V..(MA,PHL)200605-200907

*CR

main69227-60010iACV40..24G..(IDN,VN);ACV4#..(20E,24E)..(MA,TAIW)200903

69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH

main69207-30040-A0iACV40,GSV40..(24G,35Q,35V)..TAIW200605-200903

SUPER WHITE 2,040

main69207-30040-A5iGSV40..IDN,PHL,TH;ACV40..24V..(IDN,TH)200608-200907

WHITE PEARL CS.,070

main69207-30040-B2iACV40,GSV40..(24G,35Q,35V)..TAIW200903

SILVER ME.,1F7

main69207-30040-B4iACV40,AHV40,GSV40..(24V,35Q,HBD)..(IDN,MA,PHL,TH,VN)200907

SILVER ME.,1D4

main69207-30040-B5iACV40,AHV40,GSV40..(24V,35Q,HBD)..(IDN,MA,PHL,TH,VN)200907

MEDIUM SILVER ME.,1F8

main69207-30040-B6iACV40,GSV40..(24G,35Q,35V)..TAIW200605-200903

GRAY ME.,1G3

main69207-30040-B9iGSV40..VN200611-200909

GRAY M.M.,1E3

main69207-30040-C0iACV40,GSV40..(24G,35Q,35V)..TAIW200605-200903

BLACK,202

main69207-30040-C2iACV40,AHV40,GSV40..(24V,35Q,HBD)..(IDN,MA,PHL,TH,VN)200907

BLACK MC.,209

main69207-30040-E0iACV40..24G..TAIW;ACV40..24V..(IDN,TH);GSV40..IDN,PHL,TAIW,TH200605-200907

BEIGE ME.,4R0

main69207-30040-E2iGSV40..VN200611-200909

GRAYISH BROWN ME,4P9

main69207-30040-E5iACV40,GSV40..(24G,35Q,35V)..TAIW200903

DK.BROWN ME.,4U5

main69207-30040-G3iACV40,GSV40..(24G,35Q,35V)..TAIW200605-200903

LT.GREEN ME.,6V1

main69207-30040-J2iACV40,GSV40..(24G,35Q,35V)..TAIW200903

DK.BLUE MC.,8S6

main69207-30040-J3iAHV40201010

LT.BLUE ME.,8S7

main69207-30040-J4iGSV40..IDN,PHL,TH;ACV40..24V..(IDN,TH)200608-200907

DK.BLUE MC.,8N8

main69207-30040-R3iAHV40200907

LIGHT BLUE MICA METALLIC,8U8

main69227-30070iACV41..20,20G;ACV40..24G..(PHL,TH);ACV40..24V..(MA,PHL)200605-200907

*CR

main69227-60010iACV40..24G..(IDN,VN);ACV4#..(20E,24E)..(MA,TAIW)200903

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69210-22240-A2iACV40,GSV40..(24G,35Q,35V)..TAIW200605-200903

SUPER WHITE 2,040

main69210-22240-A5iACV40,AHV40,GSV40..(24V,35Q,HBD)..(IDN,MA,PHL,TH)200907-201203

WHITE PEARL CS.,070

main69210-22240-B0iACV40,GSV40..(24G,35Q,35V)..TAIW200811-200903

SILVER ME.,1F7

main69210-22240-B3iGSV40;ACV40..24G..TAIW;ACV40..24V..(IDN,TH)200605-200909

SILVER ME.,1D4

main69210-22240-B4iACV40,AHV40,GSV40..(24V,35Q,HBD)..(IDN,MA,PHL,TH,VN)200907-201207

MEDIUM SILVER ME.,1F8

main69210-22240-B5iACV40,GSV40..(24G,35Q,35V)..TAIW200605-200903

GRAY ME.,1G3

main69210-22240-B7iGSV40..VN200611-200909

GRAY M.M.,1E3

main69210-22240-C1iACV40,AHV40,GSV40..(24V,35Q,HBD)..(IDN,MA,PHL,TH,VN)200907-201207

BLACK MC.,209

main69210-22240-C2iACV40,GSV40..(24G,35Q,35V)..TAIW200903-201112

BLACK,202

main69210-22240-E0iACV40..24G..TAIW;ACV40..24V..(IDN,TH);GSV40..IDN,PHL,TAIW,TH200605-200907

BEIGE ME.,4R0

main69210-22240-E2iGSV40..VN200611-200909

GRAYISH BROWN ME,4P9

main69210-22240-E5iACV40,GSV40..(24G,35Q,35V)..TAIW200903-201112

DK.BROWN ME.,4U5

main69210-22240-G2iACV40,GSV40..(24G,35Q,35V)..TAIW200605-200903

LT.GREEN ME.,6V1

main69210-22240-J0iACV40,GSV40..(24G,35Q,35V)..TAIW200903-201112

DK.BLUE MC.,8S6

main69210-22240-J1iAHV40201010-201203

LT.BLUE M.M.,8S7

main69210-22240-J3iGSV40..IDN,PHL,TH;ACV40..24V..(IDN,TH)200608-200907

DK.BLUE MC.,8N8

main69210-22240-R3iAHV40200907-201203

LIGHT BLUE MICA METALLIC,8U8

main69210-58010iACV4#..(20,20G,24G)..(MA,PHL,TH)200907-201203

PLATED

main69211-28906iACV40..24G..(IDN,VN);ACV4#..(20E,24E)..(MA,TAIW)200903-201207

PAINT REQ.

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69210-22240-A2iACV40,GSV40..(24G,35Q,35V)..TAIW200903-201112

SUPER WHITE 2,040

main69210-22240-A5iACV40,AHV40,GSV40..(24V,35Q,HBD)..(IDN,MA,PHL,TH)200907-201203

WHITE PEARL CS.,070

main69210-22240-B0iACV40,GSV40..(24G,35Q,35V)..TAIW200811-200903

SILVER ME.,1F7

main69210-22240-B3iGSV40;ACV40..24G..TAIW;ACV40..24V..(IDN,TH)200605-200909

SILVER ME.,1D4

main69210-22240-B4iGSV40..IDN,PHL,TH;ACV40..24V..(IDN,TH)200608-200907

MEDIUM SILVER ME.,1F8

main69210-22240-B5iACV40,GSV40..(24G,35Q,35V)..TAIW200605-200903

GRAY ME.,1G3

main69210-22240-B7iGSV40..VN200611-200909

GRAY M.M.,1E3

main69210-22240-C1iACV40,AHV40,GSV40..(24V,35Q,HBD)..(IDN,MA,PHL,TH,VN)200907-201207

BLACK MC.,209

main69210-22240-C2iACV40,GSV40..(24G,35Q,35V)..TAIW200605-200903

BLACK,202

main69210-22240-E0iACV40,AHV40,GSV40..(24V,35Q,HBD)..(IDN,MA,PHL,TH,VN)200907-201207

BEIGE ME.,4R0

main69210-22240-E2iGSV40..VN200611-200909

GRAYISH BROWN ME,4P9

main69210-22240-E5iACV40,GSV40..(24G,35Q,35V)..TAIW200903-201112

DK.BROWN ME.,4U5

main69210-22240-G2iACV40,GSV40..(24G,35Q,35V)..TAIW200605-200903

LT.GREEN ME.,6V1

main69210-22240-J0iACV40,GSV40..(24G,35Q,35V)..TAIW200903-201112

DK.BLUE MC.,8S6

main69210-22240-J1iAHV40201010-201203

LT.BLUE M.M.,8S7

main69210-22240-J3iGSV40..IDN,PHL,TH;ACV40..24V..(IDN,TH)200608-200907

DK.BLUE MC.,8N8

main69210-22240-R3iAHV40200907-201203

LIGHT BLUE MICA METALLIC,8U8

main69210-58010iACV41..20,20G;ACV40..24G..(PHL,TH);ACV40..24V..(MA,PHL)200605-200907

PLATED

main69211-28906iACV4#..20E,24E;ACV40..24G..(IDN,VN)200605-200909

PAINT REQ.

69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT

main69241-28060×2iACV41..20G..TAIW200605-200709

69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR

main69242-33020×2iACV40..24E..TAIW;ACV4#,AHV40,GSV40..20,20E,20G,24G,24V,35Q,35V,HBD200903

69283APLUG, REAR DOOR INSIDE HANDLE BEZEL, RH

main69283-06040-C0iACV4#,GSV40..TAIW200903

BLACK,TRIM2#

main69283-06040-E0iACV4#,GSV40..TAIW200605-200903

GREGE,TRIM4#

main69283-33040-C0iGSV40..IDN,PHL,TH,VN200608-200909

BLACK,TRIM2#

main69283-33040-E0iACV4#,AHV40..IDN,MA,PHL,TH,VN200907

GREGE,TRIM4#

69284DPLUG, REAR DOOR INSIDE HANDLE BEZEL, LH

main69284-06040-C0iACV4#,GSV40..TAIW200605-200903

BLACK,TRIM2#

main69284-06040-E0iACV4#,GSV40..TAIW200903

GREGE,TRIM4#

main69284-33040-C0iGSV40..IDN,PHL,TH,VN200608-200909

BLACK,TRIM2#

main69284-33040-E0iACV4#,GSV40..IDN,MA,PHL,TH,VN200608-200909

GREGE,TRIM4#

69318DSEAL, DOOR LOCK WIRING HARNESS

main69318-51010×2iACV41..20G..TAIW200605-200709

69330LOCK ASSY, REAR DOOR, RH

main69050-06060iACV4#,GSV40..IDN,MA,PHL,TH200608-200907

main69050-06070iACV41..20G..TAIW200605-200709

69340LOCK ASSY, REAR DOOR, LH

main69060-06060iACV4#,AHV40,GSV40..IDN,MA,PHL,TH,VN200907

main69060-06070iACV41..20G..TAIW200605-200709

69410BPLATE ASSY, REAR DOOR LOCK STRIKER

main69410-06010×2iACV4#,GSV40..(20E,24E,24G,35Q,35V)..TAIW200605-200903

main69410-0K010×2iACV40,GSV40..VN200608-200909

69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH

main69730-06050iACV4#,GSV40..IDN,MA,PHL,TH200608-200907

main69730-06060iACV4#,GSV40..(20E,24E,24G,35Q,35V)..TAIW200605-200903

69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH

main69730-06050iACV4#,AHV40,GSV40..IDN,MA,PHL,TH,VN200907

main69730-06060iACV41..20G..TAIW200605-200709

69749BCLAMP, REAR DOOR LOCK LINK

main69749-32040×2iACV4#,GSV40..IDN,MA,PHL,TH200605-200907

69770BCABLE ASSY, REAR DOOR INSIDE LOCKING, RH

main69770-06040iACV4#,GSV40..IDN,MA,PHL,TH200608-200907

main69770-06050iACV4#,GSV40..(20E,24E,24G,35Q,35V)..TAIW200605-200903

69780BCABLE ASSY, REAR DOOR INSIDE LOCKING, LH

main69770-06040iACV4#,GSV40..IDN,MA,PHL,TH200608-200907

main69770-06050iACV4#,GSV40..TAIW200903

9014850003

main90148-50003

9014860022

main90148-60022

9014880066

main90148-80066

90148T0015

main90148-T0015

9018905003

main90189-05003

90189T0005

main90189-T0005

9356855018

main93568-55018

29 parts on this diagram · 1 diagram in section
