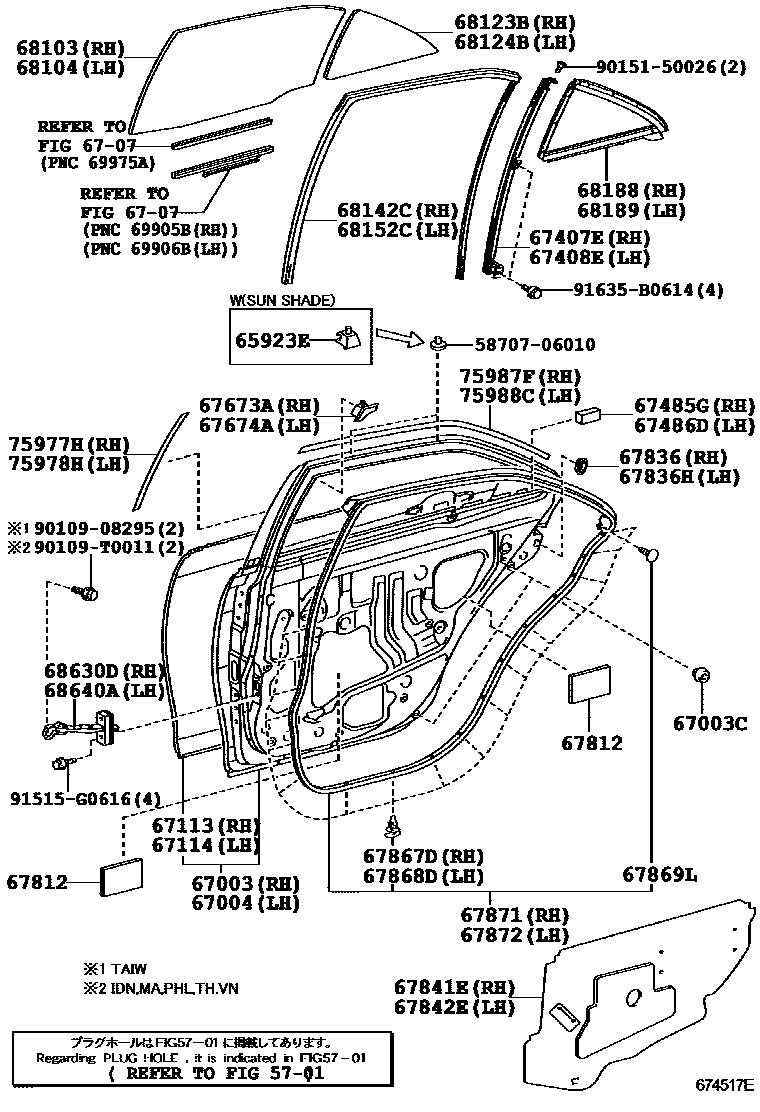

REAR DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

5701HOLE PLUG

→ Go to FIG 57-01

65923EHOOK, CURTAIN

main65923-06020×4iGSV40..TAIW200605-200903

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-06090iACV4#,GSV40..IDN,MA,PHL,TH200608-200609

main67003-06091iACV4#,GSV40..IDN,MA,PHL,TH,VN200609-200909

main67003-06110iACV41,GSV40200605-200608

main67003-06111iACV4#,GSV40..TAIW200609-200903

67003CCUSHION, REAR DOOR PANEL

main90541-09117×4iACV41..20G..TAIW200605-200709

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-06090iACV4#,GSV40..IDN,MA,PHL,TH200608-200609

main67004-06091iACV4#,AHV40,GSV40..IDN,MA,PHL,TH,VN200907

main67004-06110iACV41,GSV40200605-200608

main67004-06111iACV4#,GSV40..TAIW200609-200903

6707REAR DOOR WINDOW REGULATOR & HINGE

→ Go to FIG 67-07

67113PANEL, REAR DOOR, OUTER RH

main67113-06050iACV4#,GSV40..IDN,MA,PHL,TH200608-200907

main67113-06060iACV4#,GSV40..TAIW200903

67114PANEL, REAR DOOR, OUTER LH

main67114-06050iACV4#,AHV40,GSV40..IDN,MA,PHL,TH,VN200907

main67114-06060iACV41,GSV40..(20E,35Q,35V)..TAIW200609-200903

67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH

main67407-06040iACV4#,GSV40..IDN,MA,PHL,TH200608-200907

main67407-33090iACV4#,GSV40..TAIW200903

67408EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH

main67408-06040iACV4#,AHV40,GSV40..IDN,MA,PHL,TH,VN200907

main67408-33090iACV41..20G..TAIW200605-200709

67485GSEAL, REAR DOOR REAR LOWER FRAME, RH

main67482-06030iACV4#,GSV40..IDN,MA,PHL,TH200608-200907

main67482-06050iACV4#,GSV40..(20E,24E,24G,35Q,35V)..TAIW200605-200903

67486DSEAL, REAR DOOR REAR LOWER FRAME, LH

main67482-06030iACV4#,GSV40..IDN,MA,PHL,TH200608-200907

main67482-06050iACV41..20G..TAIW200605-200709

67673AGARNISH, REAR DOOR FRAME, RH

main67673-06030iACV4#,GSV40..IDN,MA,PHL,TH200608-200907

main67673-06040iACV41..20G..TAIW200605-200709

67674AGARNISH, REAR DOOR FRAME, LH

main67674-06030iACV4#,AHV40,GSV40..IDN,MA,PHL,TH,VN200907

main67674-06040iACV41..20G..TAIW200605-200709

67812PAD, REAR DOOR SILENCER

main67811-33040×4iACV41..20G..TAIW200605-200709

67836COVER, REAR DOOR LOCK CHILD PROTECTION, RH

main67836-02030iACV4#,GSV40..IDN,MA,PHL,TH200608-200907

main67836-06030iACV41..20G..TAIW200605-200709

67836HCOVER, REAR DOOR LOCK CHILD PROTECTION, LH

main67836-02030iACV4#,AHV40,GSV40..IDN,MA,PHL,TH,VN200907

main67836-06030iACV4#,GSV40..TAIW200903

67841ECOVER, REAR DOOR SERVICE HOLE, RH

main67841-06080iACV4#..IDN,MA,PHL,TH200608-200907

main67841-06090iGSV40..IDN,PHL,TH200608-200907

main67841-06100iACV41..20G..TAIW200605-200709

main67841-06110iGSV40..TAIW200903

67842ECOVER, REAR DOOR SERVICE HOLE, LH

main67842-06080iACV4#..IDN,MA,PHL,TH,VN200907

main67842-06090iGSV40..VN200608-200909

main67842-06100iACV4#..(20E,24E,24G)..TAIW200605-200903

main67842-06110iGSV40..TAIW200605-200903

67867DRETAINER, REAR DOOR WEATHERSTRIP, RH

main67867-12150×17iACV40..24E..TAIW;ACV4#,AHV40,GSV40..20,20E,20G,24G,24V,35Q,35V,HBD200903

67868DRETAINER, REAR DOOR WEATHERSTRIP, LH

main67867-12150×17iACV41..20G..TAIW200605-200709

67869LCLIP, REAR DOOR WEATHERSTRIP

main90467-05017-C0×2iACV4#,GSV40200605-200909

BLACK

67871WEATHERSTRIP, REAR DOOR, RH

main67871-06050iACV4#,AHV40,GSV40..IDN,MA,PHL,TH,VN200907

main67871-06060iACV41..20G..TAIW200605-200709

67872WEATHERSTRIP, REAR DOOR, LH

main67872-06050iACV4#,GSV40..IDN,MA,PHL,TH200608-200907

main67872-06060iACV4#,GSV40..(20E,24E,24G,35Q,35V)..TAIW200605-200903

68103GLASS SUB-ASSY, REAR DOOR, RH

main68113-06100iACV4#,GSV40..PHL,TH200608-200907

*TEM,T=4.0,GREEN

main68113-06120iACV4#,GSV40..IDN,MA,VN200608-200810

*TEM,T=4.0,GREEN

main68113-06121iACV4#,GSV40..IDN,MA200811-200907

*TEM,T=4.0,GREEN

main68113-06130iACV4#,GSV40..TAIW200903

*TEM,T=4.0,GREEN

68104GLASS SUB-ASSY, REAR DOOR, LH

main68114-06100iACV4#,GSV40..PHL,TH200608-200907

*TEM,T=4.0,GREEN

main68114-06120iACV4#,GSV40..IDN,MA,VN200608-200810

*TEM,T=4.0,GREEN

main68114-06121iACV4#,GSV40..IDN,MA200811-200907

*TEM,T=4.0,GREEN

main68114-06130iACV4#,GSV40..(20E,24E,24G,35Q,35V)..TAIW200605-200903

*TEM,T=4.0,GREEN

68123BGLASS, REAR DOOR QUARTER WINDOW, RH

main68123-06060iACV4#,GSV40..PHL,TH200608-200907

*TEM,T=4.0,GREEN

main68123-06080iACV4#,GSV40..IDN,MA,VN200608-200810

*TEM,T=4.0,GREEN

main68123-06081iACV4#,GSV40..IDN,MA,VN200907

*TEM,T=4.0,GREEN

main68123-06090iACV4#,GSV40..TAIW200903

*TEM,T=4.0,GREEN

68124BGLASS, REAR DOOR QUARTER WINDOW, LH

main68124-06060iACV4#,AHV40,GSV40..PHL,TH200907

*TEM,T=4.0,GREEN

main68124-06080iACV4#,GSV40..IDN,MA,VN200608-200810

*TEM,T=4.0,GREEN

main68124-06081iACV4#,GSV40..IDN,MA,VN200907

*TEM,T=4.0,GREEN

main68124-06090iACV4#,GSV40..(20E,24E,24G,35Q,35V)..TAIW200605-200903

*TEM,T=4.0,GREEN

68142CRUN, REAR DOOR GLASS, RH

main68142-06040iACV4#,GSV40..IDN,MA,PHL,TH200608-200907

main68142-06050iACV4#,GSV40..(20E,24E,24G,35Q,35V)..TAIW200605-200903

68152CRUN, REAR DOOR GLASS, LH

main68152-06040iACV4#,GSV40..IDN,MA,PHL,TH200608-200907

main68152-06050iACV4#,GSV40..TAIW200903

68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH

main68188-06030iACV4#,GSV40..IDN,MA,PHL,TH,VN200608-200701

main68188-06031iACV4#,GSV40..IDN,MA,PHL,TH200701-200907

main68188-06040iACV41,GSV40..TAIW200605-200701

main68188-06041iACV41..20G..TAIW200701-200709

68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH

main68189-06030iACV4#,GSV40..IDN,MA,PHL,TH,VN200608-200701

main68189-06031iACV4#,GSV40..IDN,MA,PHL,TH200701-200907

main68189-06040iACV41,GSV40..TAIW200605-200701

main68189-06041iACV4#,GSV40..(20E,24E,24G,35Q,35V)..TAIW200701-200903

68630DCHECK ASSY, REAR DOOR, RH

main68630-06040iACV4#,GSV40..IDN,MA,PHL,TH200608-200907

main68630-06050iACV41..20G..TAIW200605-200709

68640ACHECK ASSY, REAR DOOR, LH

main68640-06040iACV4#,GSV40..IDN,MA,PHL,TH200608-200907

main68640-06050iACV4#,GSV40..TAIW200903

75977HSTRIPE, REAR DOOR OUTSIDE, LOWER RH

main75977-06020iACV4#,GSV40..IDN,MA,PHL,TH200605-200907

main75977-06021iACV4#,GSV40..TAIW200903

75978HSTRIPE, REAR DOOR OUTSIDE, LOWER LH

main75978-06020iACV4#,AHV40,GSV40..IDN,MA,PHL,TH,VN200907

main75978-06021iACV4#,GSV40..TAIW200903

75987FSTRIPE, REAR DOOR, OUTSIDE, RH

main75987-06050iACV40,GSV40..VN200605-200909

main75987-06051iACV4#,GSV40..TAIW200903

75988CSTRIPE, REAR DOOR, OUTSIDE LH

main75988-06050iACV4#,GSV40..IDN,MA,PHL,TH200605-200907

main75988-06051iACV4#,GSV40..TAIW200903

5870706010PLUG SET, HOLE

main58707-06010

9010908295

main90109-08295

90109T0011

main90109-T0011

9015150026

main90151-50026

91515G0616

main91515-G0616

91635B0614

main91635-B0614

44 parts on this diagram · 2 diagrams in section
