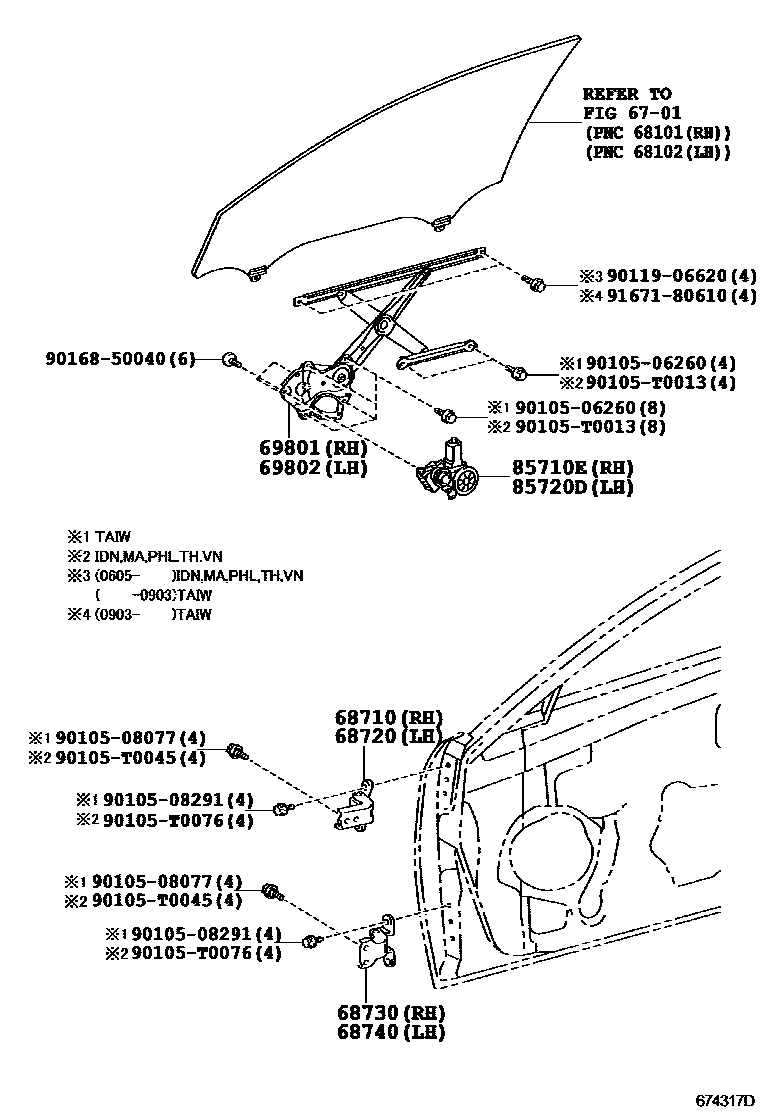

FRONT DOOR WINDOW REGULATOR & HINGE

6701FRONT DOOR PANEL & GLASS

→ Go to FIG 67-01

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-0D050iACV40..24E..TAIW;ACV4#,AHV40,GSV40..20,20E,20G,24G,24V,35Q,35V,HBD200903

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-0D050iACV4#,GSV40200605-200909

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-0D040iACV4#,GSV40200605-200909

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-0D040iACV4#,GSV40200605-200909

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-06120iACV4#,AHV40,GSV40..IDN,MA,PHL,TH,VN200907

main69801-06150iACV41..20G..TAIW200605-200709

main69801-33060iGSV40..TAIW200903

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-06130iACV4#,AHV40,GSV40..IDN,MA,PHL,TH,VN200907

main69802-33050iACV4#,GSV40..(20E,24E,24G,35Q,35V)..TAIW200605-200903

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-06090iACV4#..TAIW200903

main85710-0K010iACV40..PHL200907

main85710-33160iGSV40;ACV4#..IDN,MA,TH,VN200605-200711

main85710-33161iACV4#..RHD;GSV40..IDN,PHL,TH200712-200907

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-0K010iACV40..24E..TH;ACV4#,GSV40..IDN,MA200608-200907

main85720-33160iACV40..24E..TAIW;ACV4#,GSV40..(20,20E,24G,24V,35Q,35V)..(PHL,TAIW,TH,VN)200605-200711

main85720-33161iACV40,GSV40..VN200712-200909

9010506260

main90105-06260

9010508077

main90105-08077

9010508291

main90105-08291

90105T0013

main90105-T0013

90105T0045

main90105-T0045

90105T0076

main90105-T0076

9011906620

main90119-06620

9016850040

main90168-50040

9167180610

main91671-80610

18 parts on this diagram · 1 diagram in section
